YTL's single phase two wire single section rail installation energy meter, small size, easy installation, max current 50A. MID B+D certified to meet RoHS standards. Using LCD mode,which has passed the performance test of double 85(T.85℃，H.85%), with long life and high display definition， and with backlight for night viewing
DDS353 230V Single Phase Din Rail Electric Meter Mini Digital Wholesale kWh Meter Supplier Suppliers
Home / Products / Applications / Electricity Distribution / DDS353 230V Single Phase Din Rail Electric Meter Mini Digital Wholesale kWh Meter Supplier
DDS353F+R UKCA
Contact Us
SPEC Download

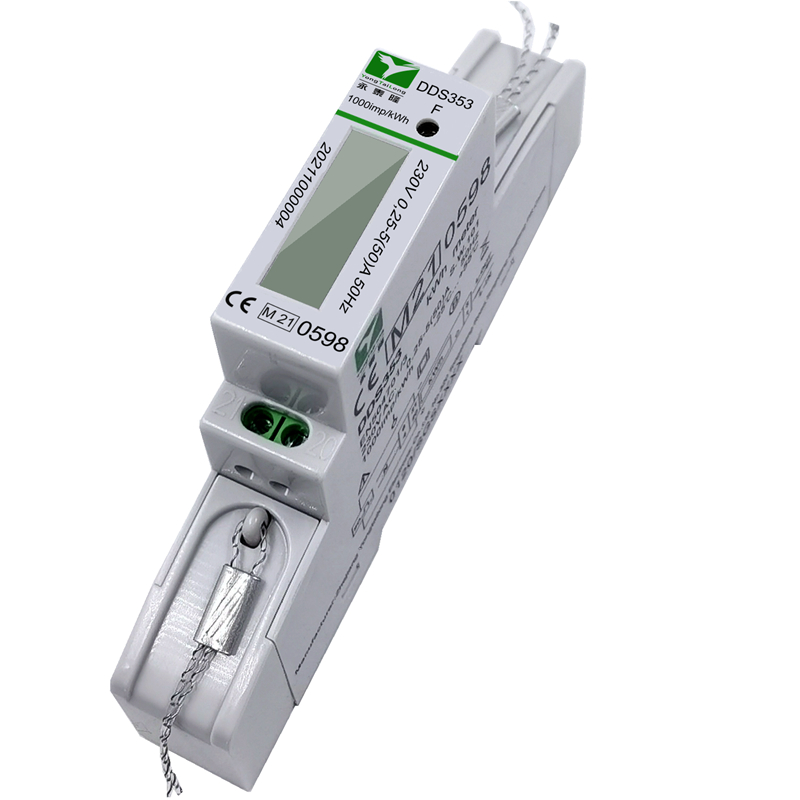

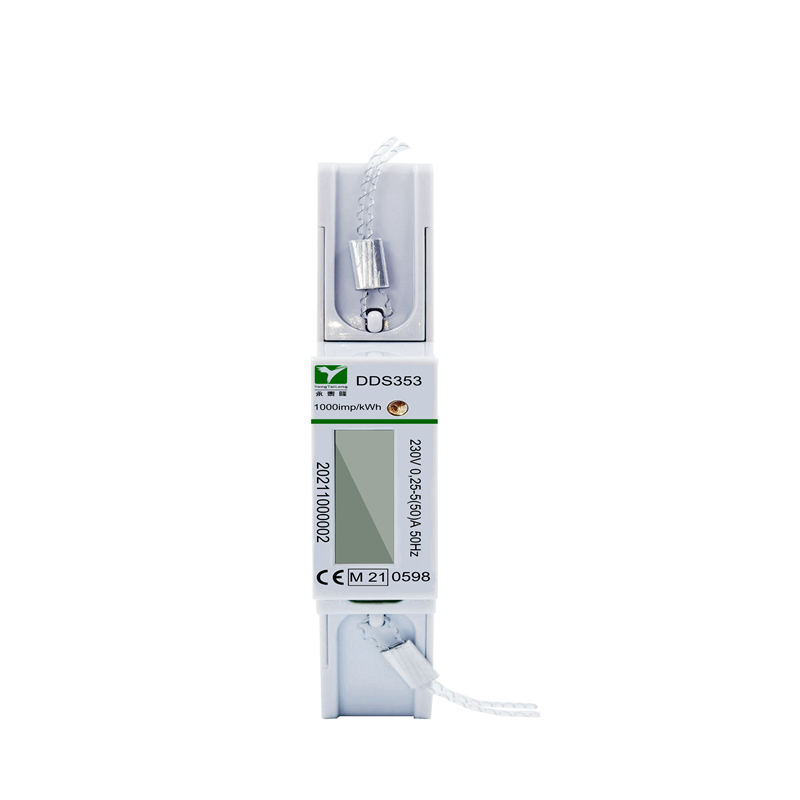

DDS353 230V Single Phase Din Rail Electric Meter Mini Digital Wholesale kWh Meter Supplier
- Measurements
- Technical Parameters
- Meter Dimensions
- Diagram for installation
- det6
-
Meter Type
Measurement
kWh Total =Forward energy+Reverse energy
KWh Total=Forward energy only
1 = kWh total ( forward + reverse)
2 = kWh (forward energy [import])
3 = kWh (reverse energy [export])
1 = kWh total (calculated by forward - reverse)
2 = V (Voltage)
3 = A (Ampere - current load)
4 = W (Watt - current active power)
5 = Hz (Frequency)
6 = PF (power factor)
1 = kWh total ( forward + reverse)
2 = V (Voltage)
3 = A (Ampere - current load)
4 = W (Watt - current active power)
5 = Hz (Frequency)
6 = PF (power factor)
1=Forward energy only
2= V (Voltage)
3= A (Ampere - current load)
4= W (Watt - current active power)
5= Hz (Frequency)
6 = PF (power factor)
1 = kWh total ( forward +reverse)
2 = kWh (forward energy [import])
3 = kWh (reverse energy [export])
4 = V (Voltage)
5 = A (Ampere - current load)
6 = W (Watt - current active power)
7 = Hz (Frequency)
8 = PF (power factor)
1 = Total Kwh（Forward - Reverse)
2 = Forwarder energy display
3 = reverse energy display
4 = V (Voltage)
5 = A (Ampere - current load)
6 = W (Watt - current active power)
7 = Hz (Frequency)
8 = PF (power factor)
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,
0,25-5(45)A,0,25-5(50)A
Impulse Constant:
1000 imp/kWh
Frequency:
50Hz/60Hz
Accuracy Class:
B
LCD Display:
LCD 5+2 = 99999.99kWh
Working Temperature:
-25～55℃
Storage Temperature:
-30~70℃
Power Consumption:
<10VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
LED flash:
Impulse indication, pulse width = 80 ms
-
-
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353.pdf
