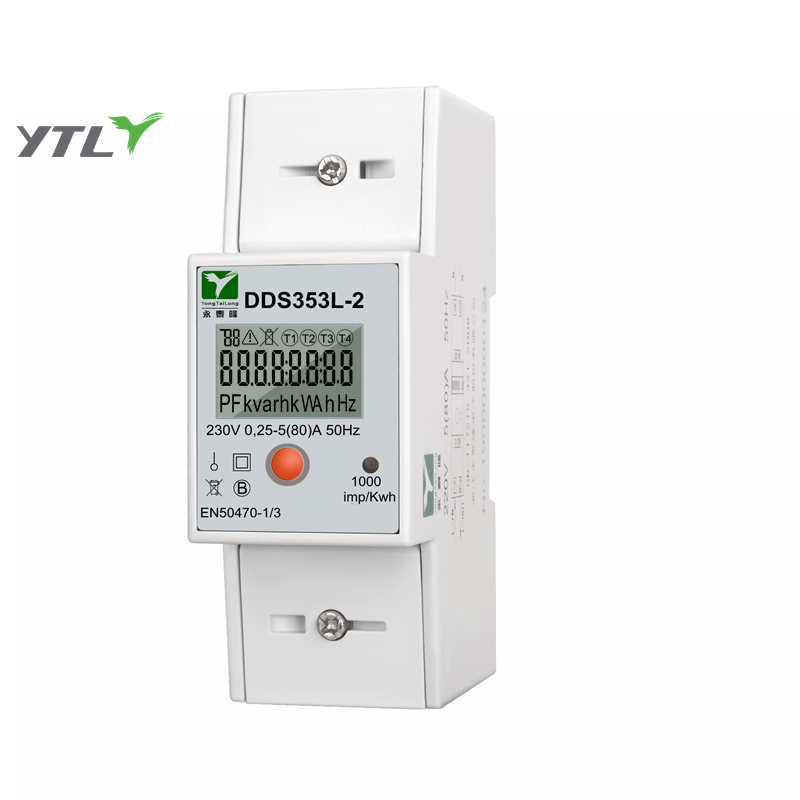

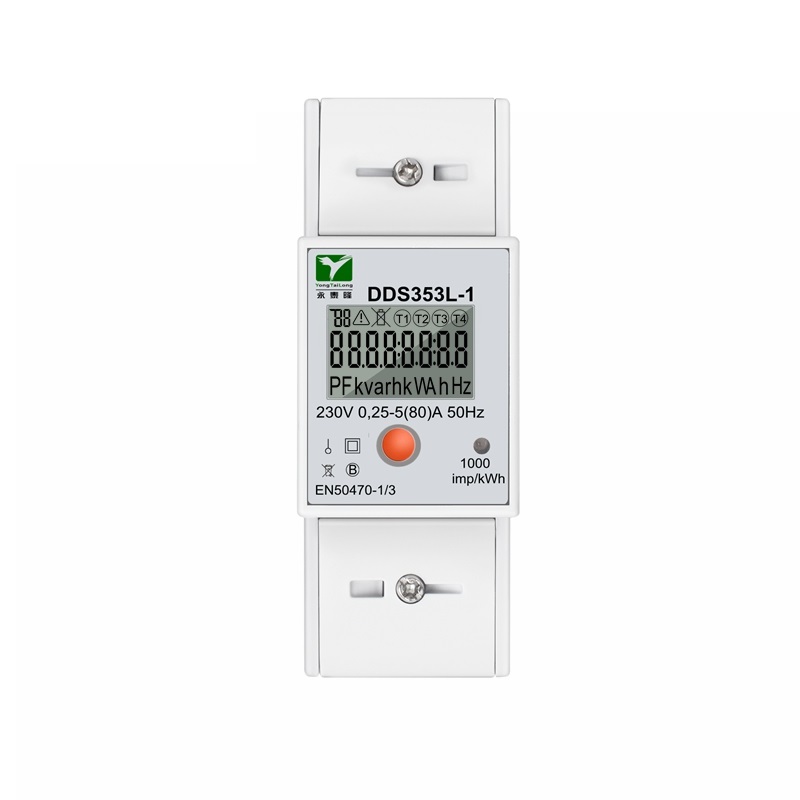

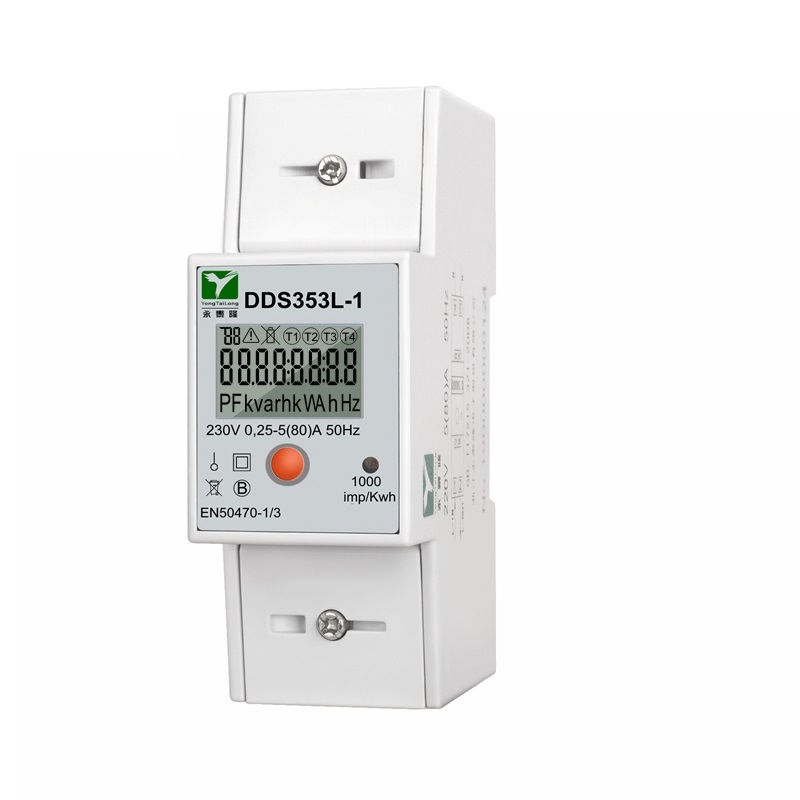

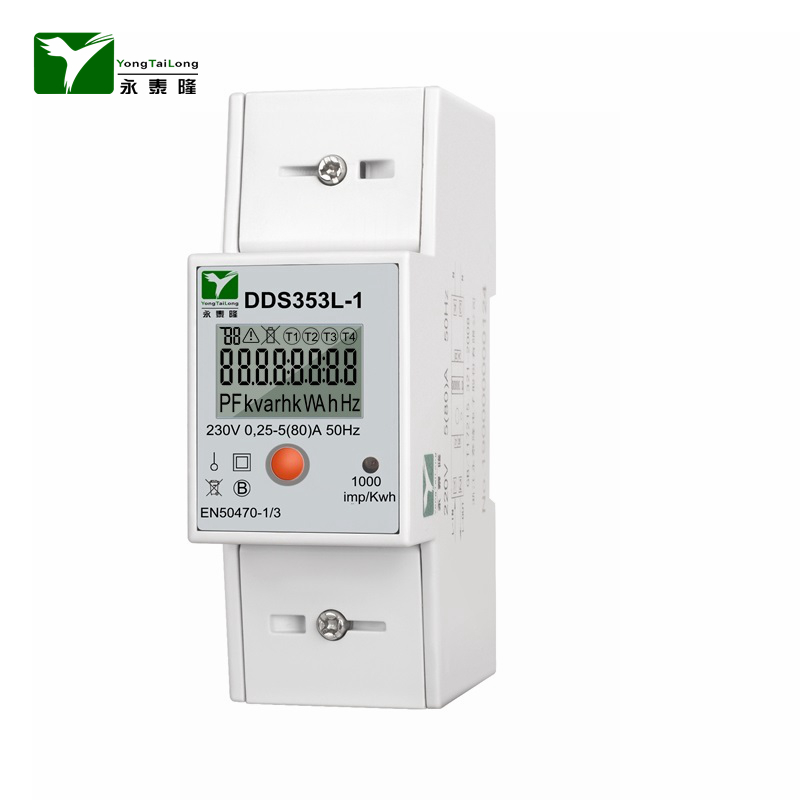

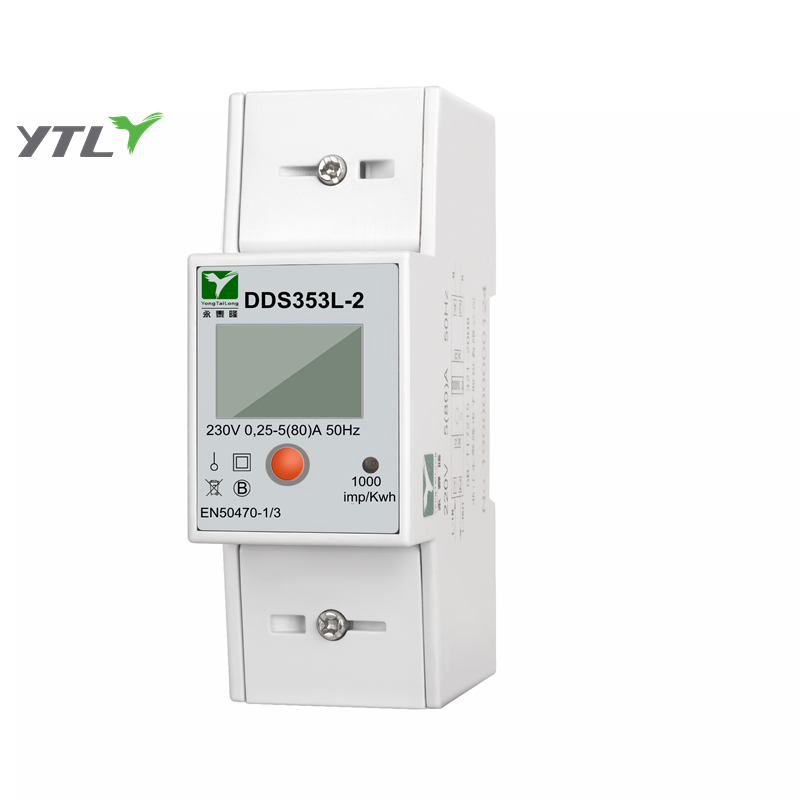

It's a din rail single phase two module energy meter with simple kWh measurement function.
It's a din rail single phase two module energy meter with simple kWh measurement function.
It's a din rail single phase two module energy meter with simple kWh measurement function.
It's a din rail single phase two module energy meter with simple kWh measurement function.
Voltage | 230V |
Current | 5(80) A |
Accuracy class | Class B / Active 1.0 |
Standard | IEC62052-11, IEC62053-21 |
Frequency | 50-60Hz |
Impulse constant | 1000imp/kWh |
Display | LCD 5+1= 99999.9kWh |
Power consumption | ≤8VA ≤0.4Wh |
Starting current | 0.004Ib |
Temperature range | -20~65℃ |
Flashing red | Impulse indication |
Average humidity value of year | 75% |
Maximal value | 95% |
A LCD |
|
B Pulse indication |
|
C Scrolling button |
|
Material | |
Bottom Case:ABS Cover: PC Terminal cover: PC Hook: ABS |
Height 101mm | |
Width 37mm | |
Depth 65mm |
Choose 35mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the location which are waiting for installation.
Push down the clip under the bottom of the meter for a gear.
