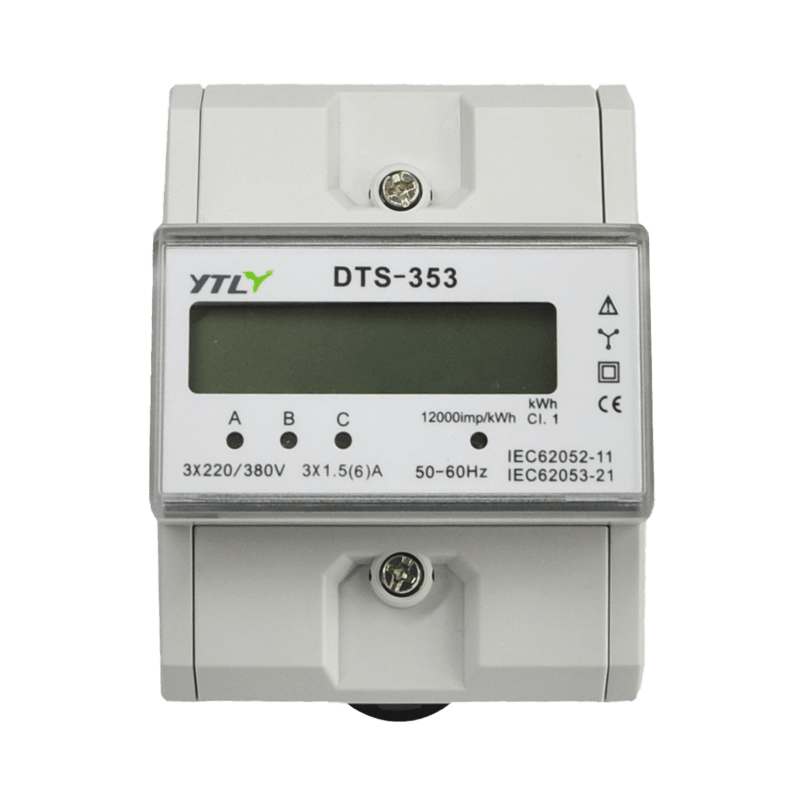

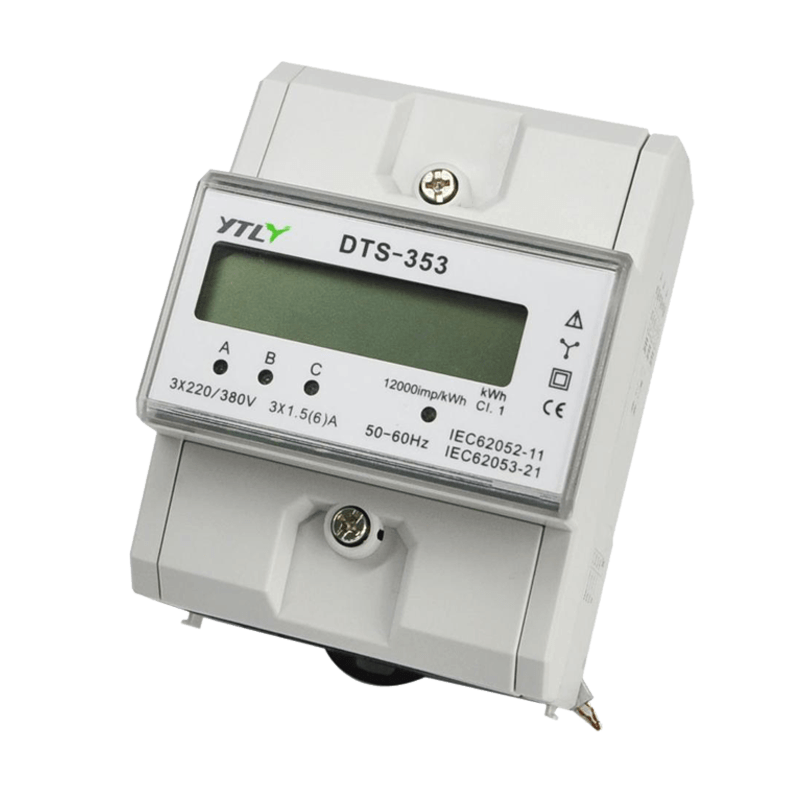

This is a simple three-phase, four-section mutual inductance electronic metering device with an LCD screen that can be displayed with a backlight.
Its performance conforms to the relevant technical requirements of IEC 62052-11, IEC 62053-21 international standards for Class 1 three-phase active energy metering devices, which can directly and accurately measure the active energy consumption of loads in the three-phase AC power grid with a rated frequency of 50 Hz.
With good reliability, extremely small size, light weight, beautiful appearance, easy to install, etc.
Convenient and so on.
LCD Backlight Mutual Inductance Three-Phase Four-Section Electronic Electricity Meter Suppliers
Home / Products / electronic energy meter / LCD Backlight Mutual Inductance Three-Phase Four-Section Electronic Electricity Meter
D512026-01
Contact Us
SPEC Download
LCD Backlight Mutual Inductance Three-Phase Four-Section Electronic Electricity Meter
- Technical Parameters
- Description

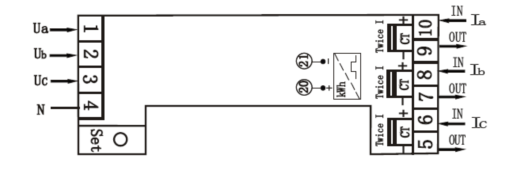

- Connectlon Diagram
- Meter Dimensions
- Impulse Connection
- det6
-
Voltage:
3*220/380V
Current:
3*5(80) A
Accuracy class:
Class B / Active 1.0 Standard:
IEC62052-11, IEC62053-21 Frequency:
50-60Hz Impulse constant:
12000imp/kWh Display:
Counter 6+2
Temperature range:
-10～45℃ Relative Humidity:
＜75%
-

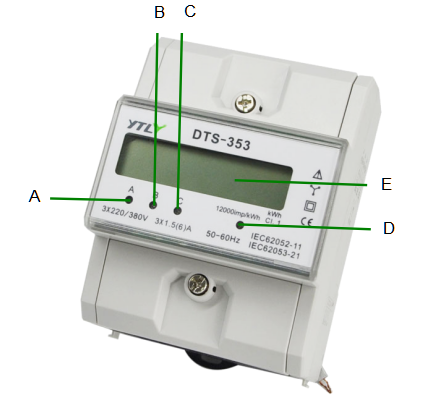

A A-phase power indication
B B-phase power indication
C C-phase power indication
D Pulse indication
E LCD screen display
Material
Bottom case： Grey flame resistant ABS
Panel： Grey flame resistant ABS
Terminal case： Grey flame resistant ABS
-
-

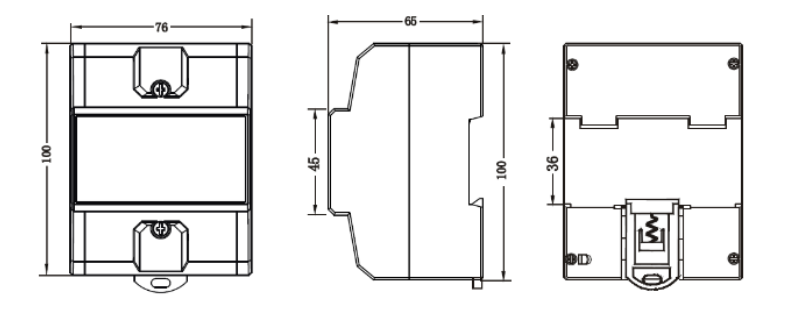

Height 100mm
Width 76mm
Depth 65mm
Weight 0.28kg(Net)
-

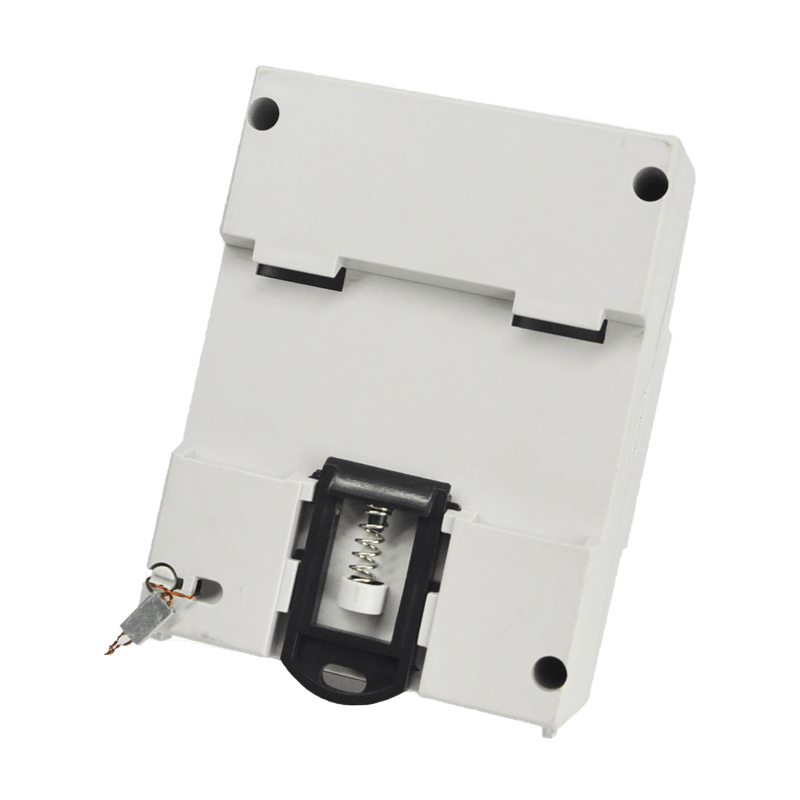

Take one standard 35mm guide rail (the length is intercepted according to the actual situation) and fix it in the position
where the metering device is to be installed.
Push the clasp at the bottom of the metering device downward, and after it is stuck on the guide rail, the clasp of the metering device is pushed upward again, so that the metering device is completely stuck on the guide. - https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/07/d512105三相四节透明导轨表规格书20200918.pdf
