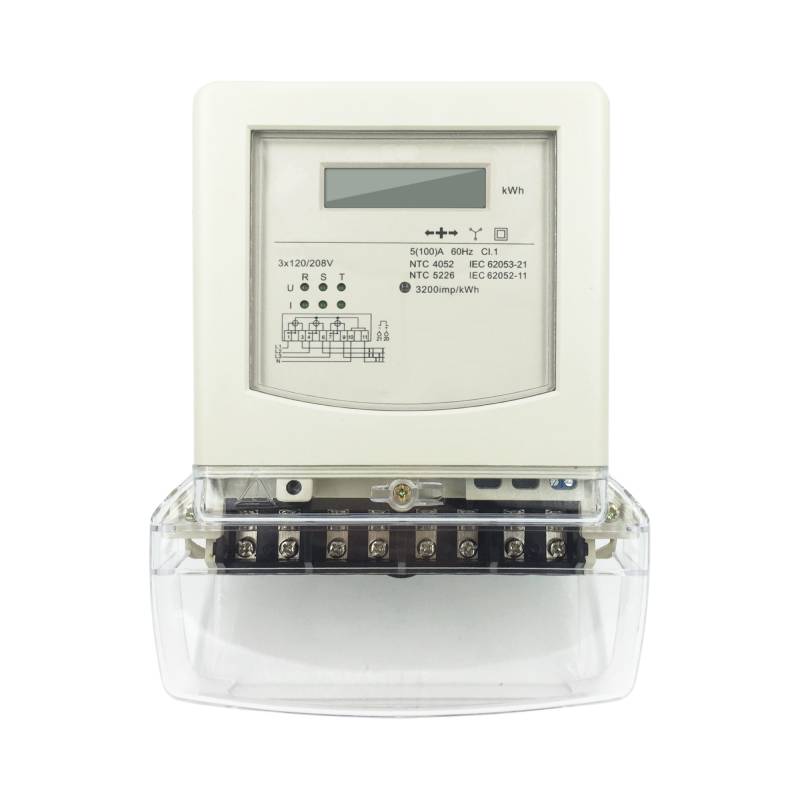

This is a Three phase four wire LCD meter. This meter can be mounted in two ways: wall mounted and Din-Rail installation. It can measure active energy , It adopts new technology of shunt sampling which has many advantages comparing to traditional sampling method,comply with Standard IEC 62052-11 and IEC 65053-21.
| Voltage | 3*120V/208V, |
| Current | 5(100)A |
| Accuracy class | 1.0 for active |
| Frequency | 60HZ |
| Impulse constant | 4800imp/kWh |
| Display | LCD6+2 |
| Power consumption | ≤10VA |
| Starting current | 0.4%Ib |
| Operating temperature | -20—70℃ |
| Storing temperature | -25—85℃ |
| Relative humidity | ≤75% |
| Standard | IEC 62052-11:2003 IEC 65053-21:2003 |
| IEC 62053-31 1998 | |
| Protection degree | IP54(indoor) |
l Shunt sampling low cost
l This meter back light which increase the readability in the dark.
l With Voltage and Current Indicator
l With Impulse output
l With Super capacitor to support Active display when power off 24H.
l Active energy measurement
l Support Wall mounted as well as din rail installation
l With ultrasonic case and anti-tampering screws
