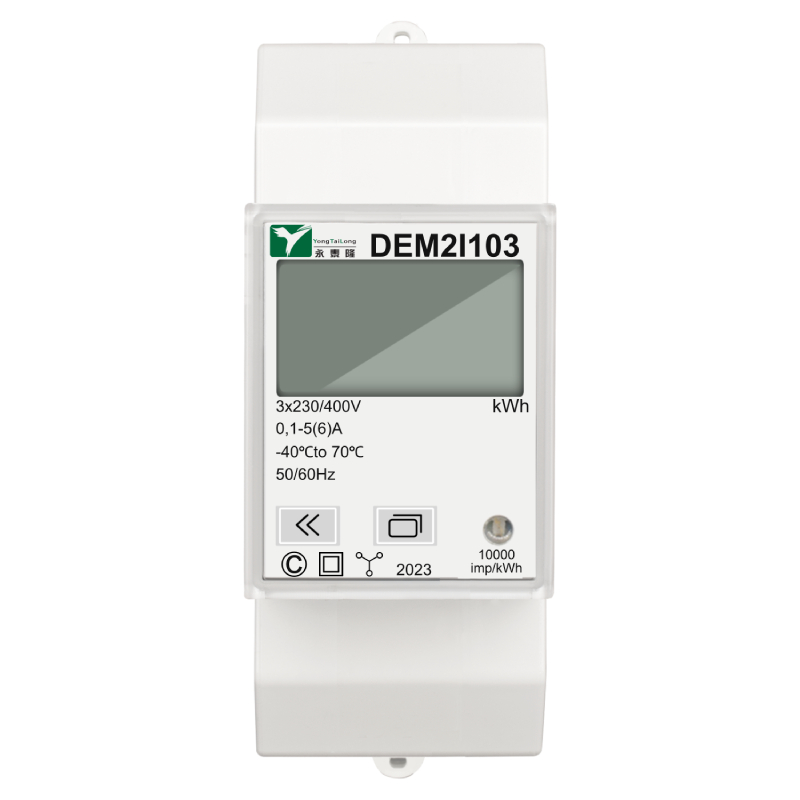

Three-phase CT meter, using double-section din rail appearance, cover width is only 36mm, CT transformation ratio can be set. Designed with RS485 communication for parameter setting and reading of power data. The panel is designed with 2 touch buttons for data page turning and parameter setting.
YTL DIN Rail Three Phase Multi-Function Energy CT Meter Suppliers
Home / Products / multi-function energy meter / YTL DIN Rail Three Phase Multi-Function Energy CT Meter
- Technical Parameters
- Features
- meter dimensions
- det6
-
Content
Parameters
Standard:
EN50470-3
Rated Voltage:
3*230(400)V
Rated Current:
0.1-5(6)A
Impulse Constant:
10000imp/kWh(LED)
10000imp/kWh(SO)
Frequency:
50Hz/60Hz
Accuracy Class:
B
LCD Display:
LCD 6+2
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.002Ib
Case Protection
IP51 indoor
-
Type
DEM2I103
Software Version
U201
CRC
2B77
Impulse Constant
10000imp/kWh(LED)
10000imp/kWh(SO)
Communication
RS485
Baud rate
9600/19200/38400/115200
SO output
The default active pulse output can be configured as active, active forward, active reverse, reactive, reactive forward, and reactive reverse pulse outputs.
Pulse width
Changeable pulse width according to current, the bigger the current the shorter the pulse width
Backlight
Blue
Li-Battery
Battery
Multi-tariff
Time tariff
Measurement Mode
1.total =forward
2.Total=reverse
3.Total =forward +reverse (default)
4.Total=Forward-Reverse
5. Special Algebra and Mode (Forward Power - Reverse Power>0 is counted as Forward Energy and vice versa is counted as Reverse Energy)
Button
Touch button
Button function
Left button:Page turning,
Right button: Page turning,setting information display
Default setting
/
Measurement Mode setting
Button
-
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/10/29/d513053三相双节rs485表规格书.pdf
