The cover is flame retardant PC material, protection class is IP51. There is a lead seal design on the cover plate of the power terminal cover which protects the wiring and prevents the user from changing the wiring and anti-tamper.
The cover is flame retardant PC material, protection class is IP51. There is a lead seal design on the cover plate of the power terminal cover which protects the wiring and prevents the user from changing the wiring and anti-tamper.
Content |
Parameters |
Standard: |
EN50470-1/3 |
Rated Voltage: |
230V |
Rated Current: |
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A |
Impulse Constant: |
1000 imp/kWh |
Frequency: |
50Hz |
Accuracy Class: |
Class B |
LCD Display: |
LCD 5+2 = 99999.99kWh |
Working Temperature: |
-25~55℃ |
Storage Temperature: |
-30~70℃ |
Power Consumption: |
<10VA <1W |
Average Humidity: |
≤75% (Non Condensing) |
Maximum Humidity: |
≤95% |
Start Current: |
0.004Ib |
LED flash: |
Impulse indication, pulse width = 80 ms |
Type |

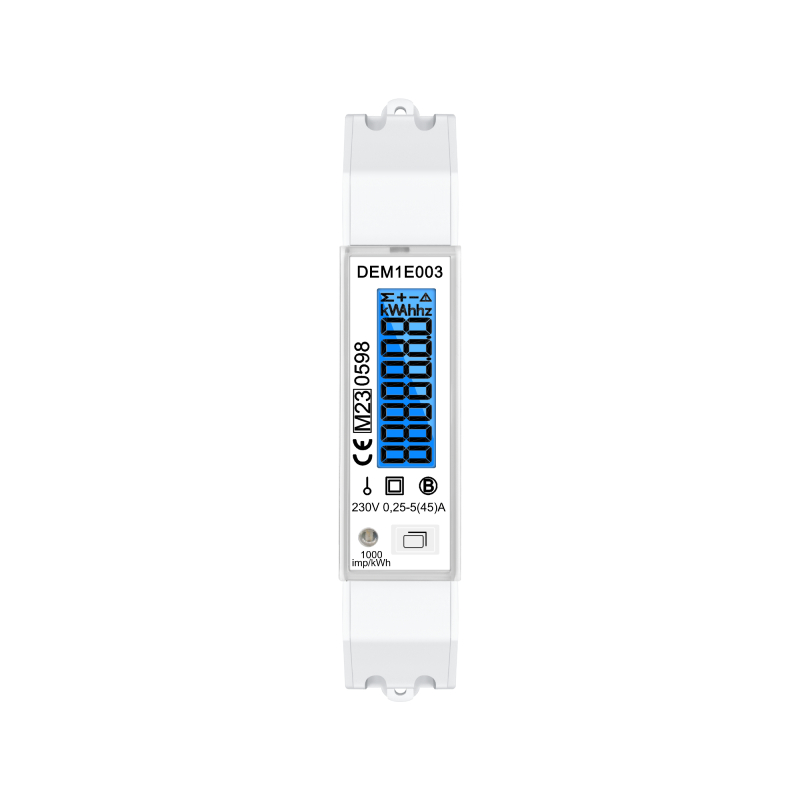

DEM1E001 |
DEM1E003 |
DEM1E103 |
Software Version |
V101 |
V101 |
V101 |
CRC |
5A8E |
B6C9 |
6B8D |
Impulse Constant |
1000imp/kWh |
1000imp/kWh |
1000imp/kWh |
Communication |
N/A |
RS485 Modbus/DLT645 |
RS485 Modbus/DLT645 |
Baud rate |
N/A |
9600\19200\38400\115200 |
9600\19200\38400\115200 |
SO output |
Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default
|
Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default
|
Yes, with variable constant 100-2500imp/kWh Divisible by 10000 as default
|
Pulse width |
SO:100-1000:100ms SO:1250-2500:30ms |
SO:100-1000:100ms SO:1250-2500:30ms |
SO:100-1000:100ms SO:1250-2500:30ms |
Backlight |
Blue |
Blue |
Blue |
Li-Battery |
N/A |
N/A |
YES |
Multi-tariff |
N/A |
N/A |
YES |
Measurement Mode |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
Button |
Touch button |
Touch button |
Touch button |
Button function |
Page turning, setting, information display |
Page turning, setting, information display |
Page turning, setting, information display |
Default setting |
1000imp/kWh,100ms |
1000imp/kWh,100ms 9600/NONE /8/1 |
1000imp/kWh,100ms 9600/NONE /8/1 |
Measurement Mode setting |
Button |
RS485 or Button |
