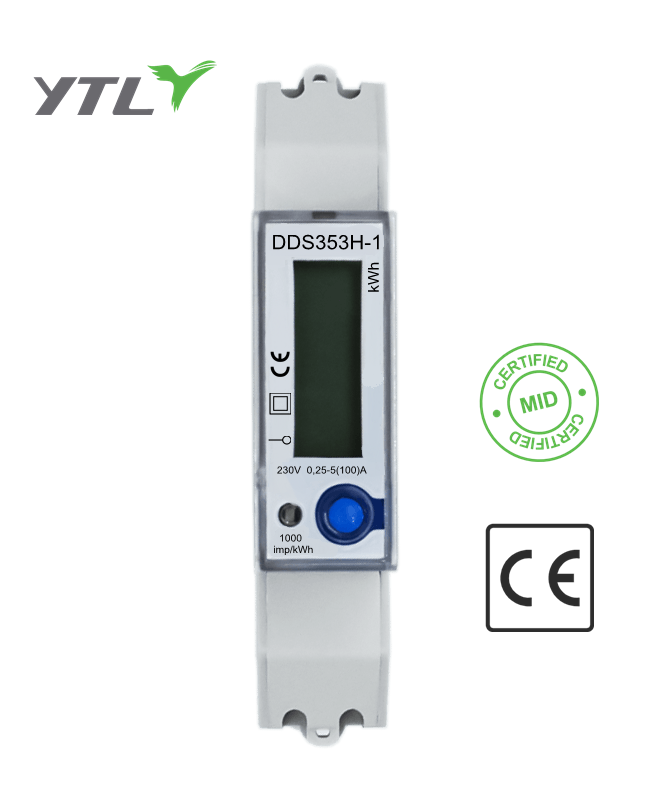

YTL DDS353H Din-Rail 1P one wire Multi-tariff CE Certificate Solar Energy Charge
It supports RS485 communication(YTL-BUS protocol), and can read data remotely.
And it is very popular as its din-rail installation, good reliability, small size, light weight, beautiful appearance and other characteristics; comply with IEC standards.
35mm Din Rail 240V Single Phase Energy Meter Suppliers
-1.jpg?imageView2/2/format/jp2)
DDS353H-2
Contact Us
SPEC Download
35mm Din Rail 240V Single Phase Energy Meter
- TechnicalParameters
- Description

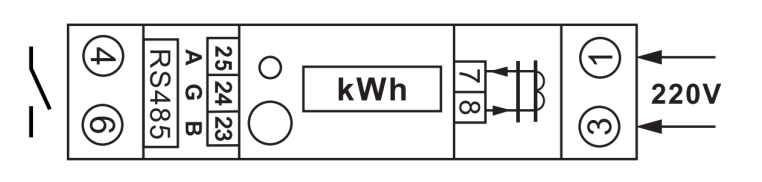

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage: 230V Current: 5（100）A
Accuracy class: active class 1.0，reactive class 2.0
Standard: IEC62052-11, IEC62053-21
Frequency: 50Hz Impulse constant: 1000imp/kWh Display: LCD5+1
Power consumption: ≤5VA ≤0.5W
Starting current: 0.004Ib
Temperature range: -20～70℃ Flashing red: Impulse indication，width=80ms Average humidity value of year: 75% Maximal humidity value: 95% -

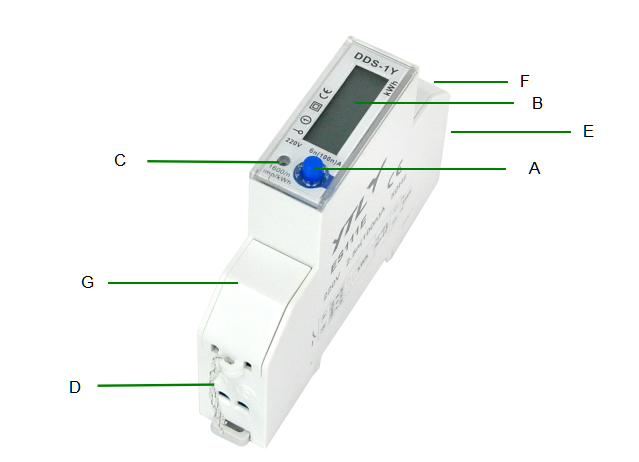

A Button:short time press means scrolling page button, long time press means functional button
B LCD display
C Pulse LED
D Relay control output
E voltage sampling
F current sampling
G RS485 interface
MaterialBase： PC+ABS Alloy material
Upper cover： PC+ABS Alloy material
Terminal cover： PC+ABS Alloy material
Hook： ABS
-
-
Height 90mm
Width 18.5mm
Depth 72mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
-
