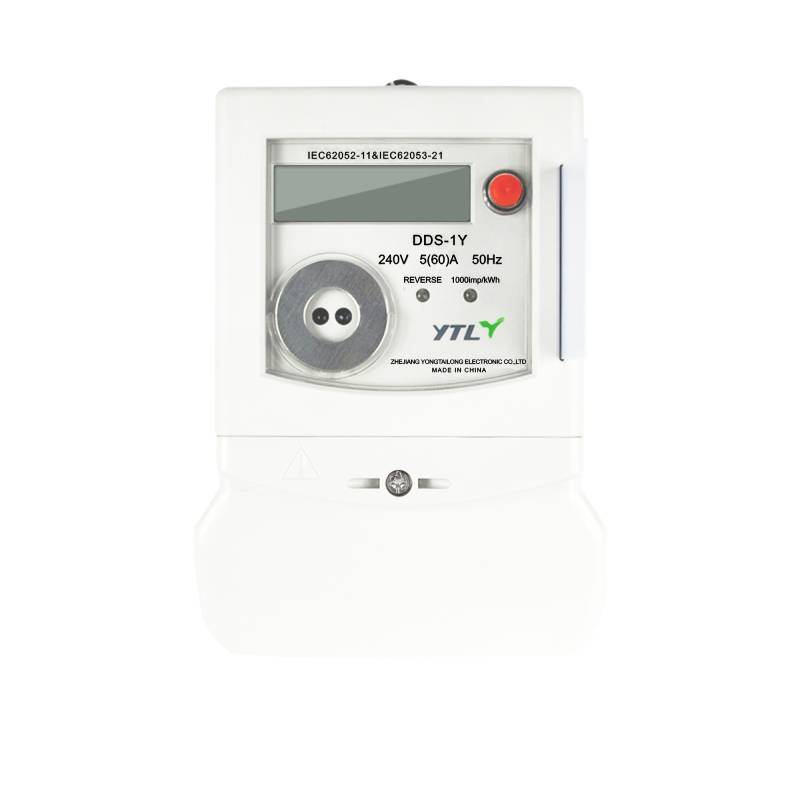

YTL China Single Phase IC card Prepayment Electricity Meter

D124030

YTL China Single Phase IC card Prepayment Electricity Meter

Single phase IC card prepayment meter. The user need to charge the meter via IC card before

using. It could solve the problems of value issue of the scattered residents, temporally users and

always debts users. The software could record the users' information, it will be very convenient to

manage all the users.

Technical Parameters
Features

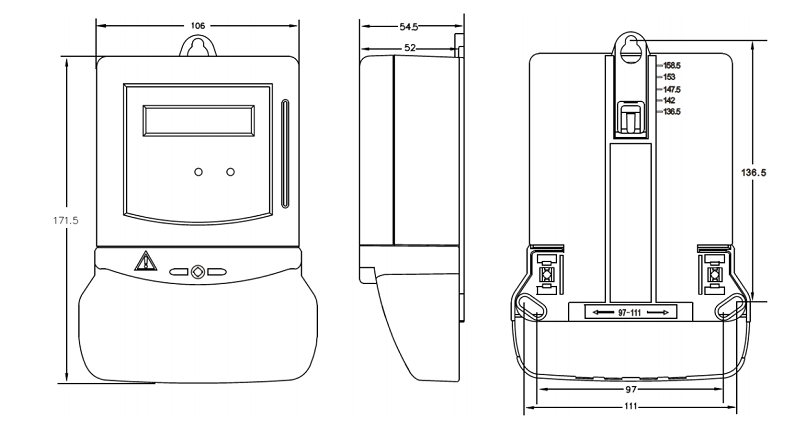

Meter Dimensions

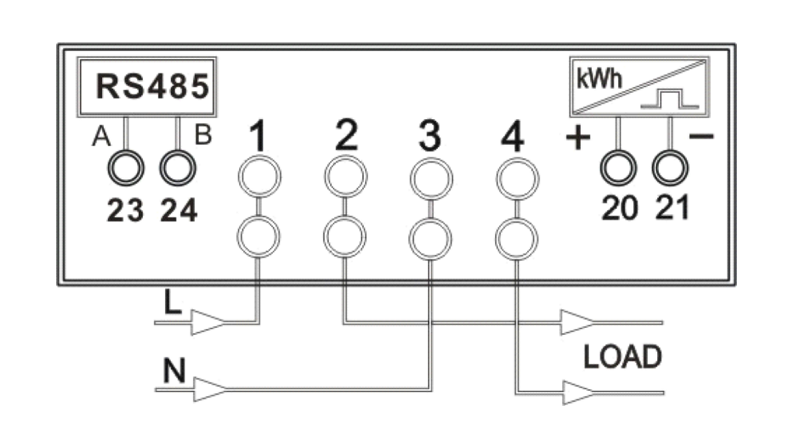

Diagram for installation
det6

Voltage: 230V

Current: 5(60) A

Accuracy class: 1.0

Standard: IEC62052-11, IEC62053-21

Frequency: 50-60Hz

Impulse constant: 1000imp/kWh

Display: LCD 6+2

Power consumption: ≤1.2W and 1.2VA

Starting current: 0.4% Ib

Working Temperature: -20～55℃

Storage Temperature: -25～70℃

Average humidity value of year: 75%
● Recharge by IC card;

● The relay will off when over load. There are 3 methods to close the relay: Inject the IC card ;

Press the button; Switch on after 1 minute automatically. The methods could be chosen to switch

on via Infrared and RS485;

● When the instantaneous power value is more than the threshold, the relay will open. The

methods of making the relay close are settable. 1.inject the IC card 2.press the button and the

times of using this method should be less than the times of switching off caused by over loaded. 3.

switch on after 1 minute automatically;

● When the remain energy is less than the threshold, the meter will alarm and the threshold could

be set via Infrared or RS485;

● Prevent hoarding (too much) credit. The charged credit cannot surpass the preset value

threshold. And the sum of recharged credit and left value cannot surpass the extreme credit of the

meter either ( 999999.99kWh);

● The equipped Vending System has a multiple access management function, and could be

operated by multiple accounts and generate reports automatically;

● When off power, the meter will record the total kWh, remain kWh, impulse number and also

other data that the meter has;

● LCD displays total kWh, remain kWh, latest purchasing energy, meter number, user number and

the forward and reverse;

● Press the button to roll LCD pages:

1. Total kWh2

2. Remain kWh

3. Latest purchasing energy

4. Meter number

5. User number

6. The LCD will show Error5 when the remain energy is not enough(it will not alarm if the remain

energy is more than the alarm value)

● Communication: Infrared and RS485;

● There are User’s Card, Recharge Card and Reset Card for this system.
https://www.ytl-e.com/contact/

Applications

View all applications

Electricity Distribution

View all products

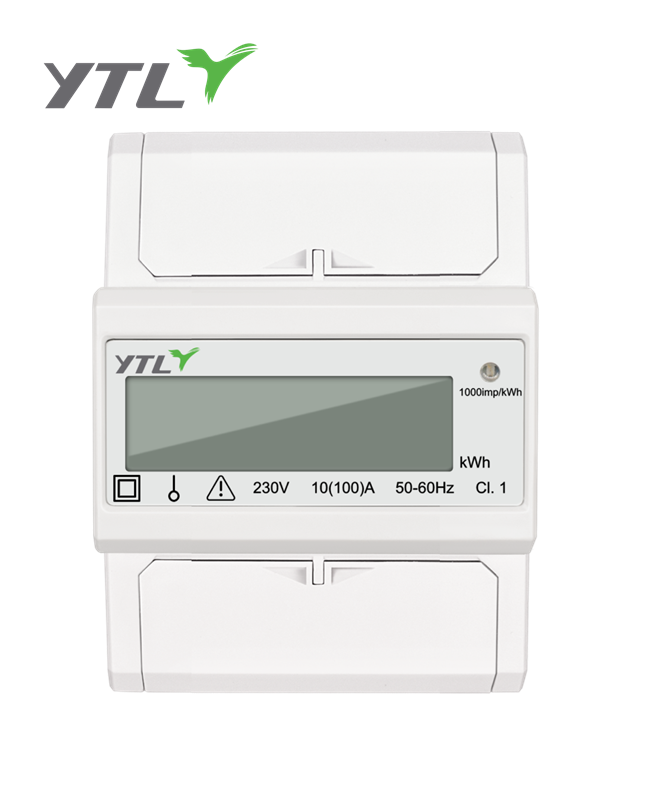

Digital Device Measure Electronic Panel Electricity Meter
