YTL prepaid meter 800imp/kWh Split Type 3P 4 Module keypad energy meter
After purchasing the power, the user will get a string of 20-digit recharge code and manually enter the correct 20-digit code on the meter keyboard. When inputting, you need to continuously input in one time, and the interval between every two numbers should not exceed 20 seconds, otherwise the previously entered numbers will be automatically cleared.When input incorrect, can modify by, after reconfirmation,press Enter button.If the input is not complete, pressing the input key has no effect.
Three Phase Keypad Split Type Energy Meters Manufacturers
Home / Products / multi-function energy meter / AMI Metering Prepaid Three Phase Suspension Energy Meter
.jpg?imageView2/2/format/jp2)

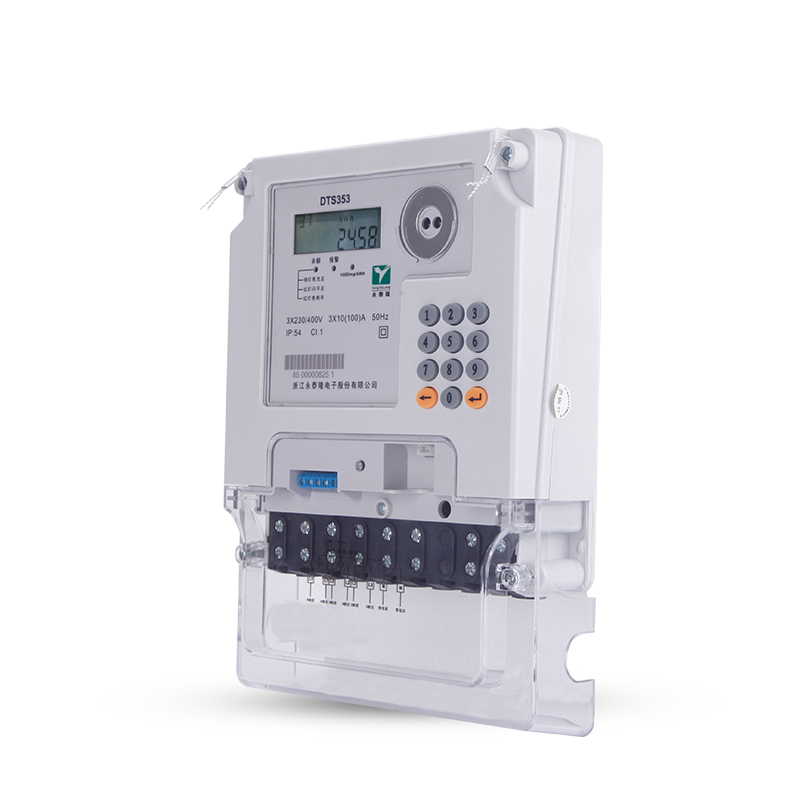

AMI Metering Prepaid Three Phase Suspension Energy Meter
- TechnicalParameters
- ConnectlonDiagram
- Description
- det4
-
Voltage
3*220/380V AC±20%
Current
3*1.5(6) A
Pulse constant:
10000imp/kWh
Display:
LCD 6+2
Working temperature:
-20-70℃
Average humidity value of year:
≤75%
Reference frequency:
50Hz
Accuracy level:
1
Starting current:
0.4%Ib (1 class), 0.5%Ib (2 class)
Submerged:
with anti-submerged logic design
Power consumption:
≤1W,<8VA
-
Height 96.73mm
Width 96.73mm
Depth 56mm
Weight 0.2925kg(Net) -
A Page up Button
B Page Down Button
C Mode Button (Exit)
D SET Button
Material
Case Grey flame resistant ABS
Panel Grey flame resistant ABS
Base Bottom Grey flame resistant ABS -
