for smart microgrid Solar Hybrid Inverter

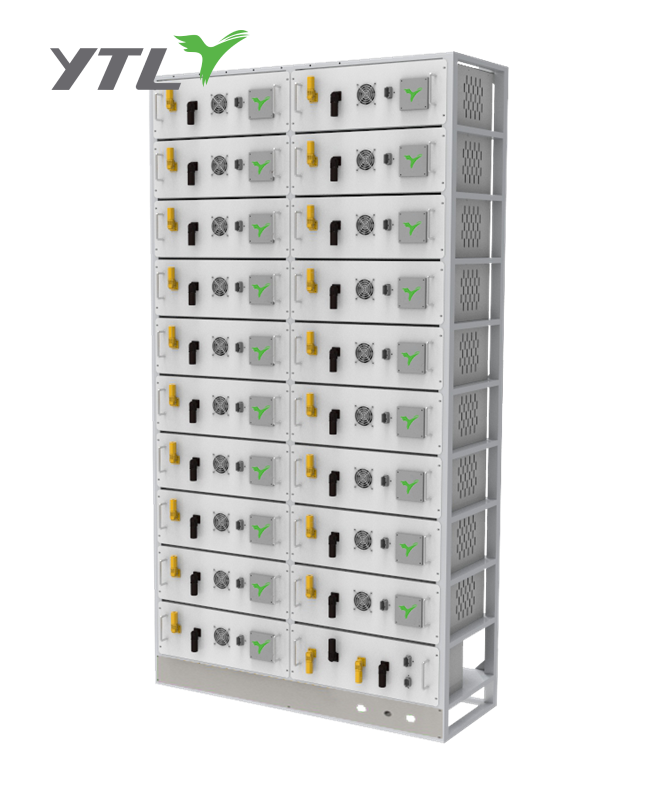

Energy Storage Standard Battery Cluster Suppliers
- specification
- det6
-
Parameter 729.6V 280A 734.16V 346A 662.4V 240A Serial and parallel 1P228S 2P228S 6P207S Voltage range 570〜832.2V 570〜832.2V 517.5〜755.55V Recommended charging and discharging current 140 A 173A 240A Max charge and discharge current 280A 346A 480A Max working temperature -20°C〜+55°C -20°C〜+55°C -20°C〜+55°C Design life >10year >10year >10year Cycles 5000@25°C
0.5C5000@25°C
0.5C5000@25°C
1CWeight 1550kg 1850kg 1700kg Protection level IP20 IP20 IP20 Dimensions (mm) 1008×600×2500 1328×500×2500 1156×545×2295 Matching battery module 1P12S 2P12S 6P9S Communication method CAN/RS485 CAN/RS485 CAN/RS485 Standard UN38.3/UL1973 /UL9540A -
https://www.ytl-e.com/contact/
-1.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
Welcome To A National High-tech Enterprise
Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China Energy Storage Standard Battery Cluster Suppliers and Energy Storage Standard Battery Cluster Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
-
