Intelligent street lamp management system, the implementation of unified management of street lamp public lighting, to achieve the "trinity" of lighting remote monitoring, intelligent control and energy saving and consumption reduction. It provides a systematic solution for rational arrangement of lighting brightness and saving electric energy.

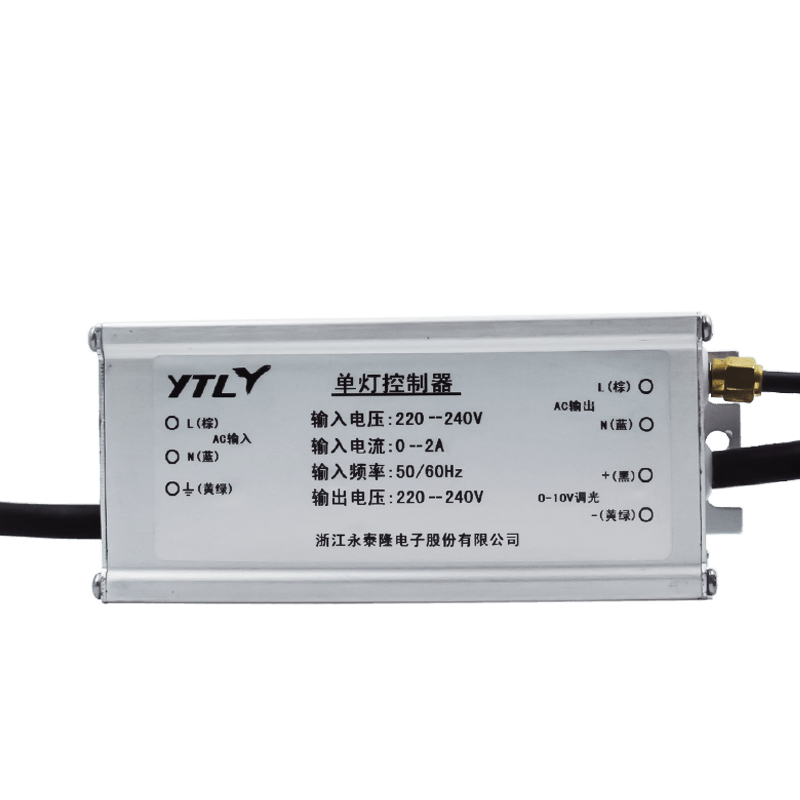

HPLC single lamp controller
|
items |
discription |
|
supply power |
single phase supply power |
|
supply voltage |
220V±30% |
|
frequency |
50Hz±10% |
|
power comsumpion
|
static power consumption≤1W |
|
dynamic power comsumpion≤1.5W |
|
|
upgoing channel |
LoRa |
|
control interface |
0~10V |
|
|
PWM |
|
max load |
10A |
|
relay work life |
100000 times |
|
work temperture |
-40~85℃ |
|
work humidity |
10% ~ 100% |
|
electro magnetic compatibility
|
electrostatic discharge 8kV |
|
high frequency electromagnatic field 10V/m |
|
|
fast transient pulse train 4kV |
|
|
surge ≤1W |
|
|
power frequency withstand voltage4kV |
Longth 136.8mm
Wideth 68.2mm
Hight 44.1mm
Electric energy meters shall not be subjected to severe shock during transportation and storage, and shall be transported and stored in accordance with the provisions of gb13384-2008 general technical conditions of instrument packaging;
The energy meter should be stored in the original package, where the temperature range of the environment is 0-40c, the relative humidity should not exceed 85%, and there is no corrosive gas in the air.
Electricity meters shall be stored in the warehouse, and shall be placed on the platform. The stacked height shall not exceed 10 boxes. After unpacking, the stacked height of single packed electricity meters shall not exceed 5 layers.
