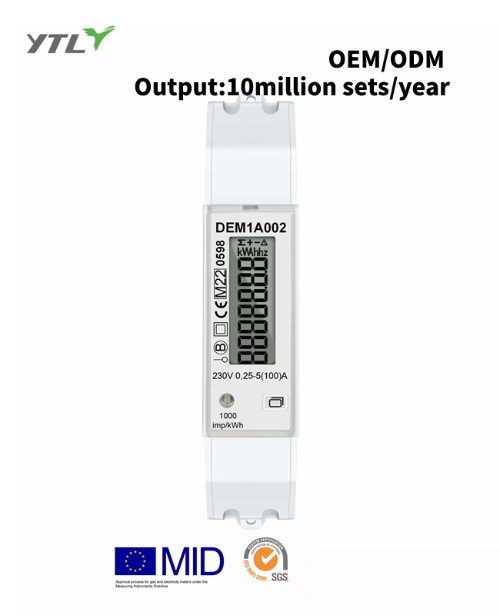

Energy meter for AC is an instrument used to measure AC energy, usually composed of current and voltage sampling, signal processing, calculation, and display. It can measure parameters such as real time power, cumulative energy, and max load of AC electricity, and is widely used in the fields of power, energy, and industry.
Energy meter for AC can be divided into single phase energy meters, three phase three wire energy meters, and three phase four wire energy meters according to the circuits they use. According to their uses, they can be classified as active energy meters, reactive energy meters, complex tariff energy meters, prepaid energy meters, anti tamper energy meters, etc. In addition, there are new types of energy meters such as electronic energy meters and smart energy meters.
When using Energy meter for AC, they need to be correctly connected to the circuit to work properly. If connected incorrectly, there may be errors in energy counting or even damage to the energy meter. When wiring the meters, besides following general rules, it is necessary to verify and refer to the wiring instructions provided with the energy meter. During installation, the power supply to the input terminals must be disconnected to ensure the safety of the installation operation.
1. Energy meter for AC can measure the voltage and current of AC electricity, helping users understand the power situation in the circuit.
2. Energy meter for AC can calculate the power and energy consumption in the circuit, helping users understand the energy consumption of power equipment.
3. Energy meter for AC can detect abnormal conditions in circuits, such as overvoltage, overcurrent, phase loss, and imbalance. This helps users to quickly identify and resolve issues.
4. Energy meter for AC can record electricity consumption data within a circuit, which helps users analyze the operation and performance of the power system.
5. Energy meter for AC can provide circuit protection functions, such as overload protection and short circuit protection, to ensure the safety of power equipment and personal safety.
In conclusion, Energy meter for AC are instruments that measure AC energy, providing users with accurate power data and protection functions. They are widely used in the fields of power, energy, and industry. When using them, attention must be paid to safety and proper usage methods to guarantee the accuracy and reliability of measured results.
