What is a CT energy meter ？What are the characteristics？

CT Energy Meter: A Key Tool in Modern Power Management
In the vast field of power management, CT energy meters are emerging as essential tools for modern electricity measurement and management, thanks to their unique technical advantages and wide-ranging applications. With the acceleration of smart grid construction and the deepening of energy transition, CT energy meters, with features such as high precision, wide measurement ranges, and intelligent capabilities, provide reliable and efficient energy metering solutions for various industries.

I. CT Energy Meter: Definition and Working Principle

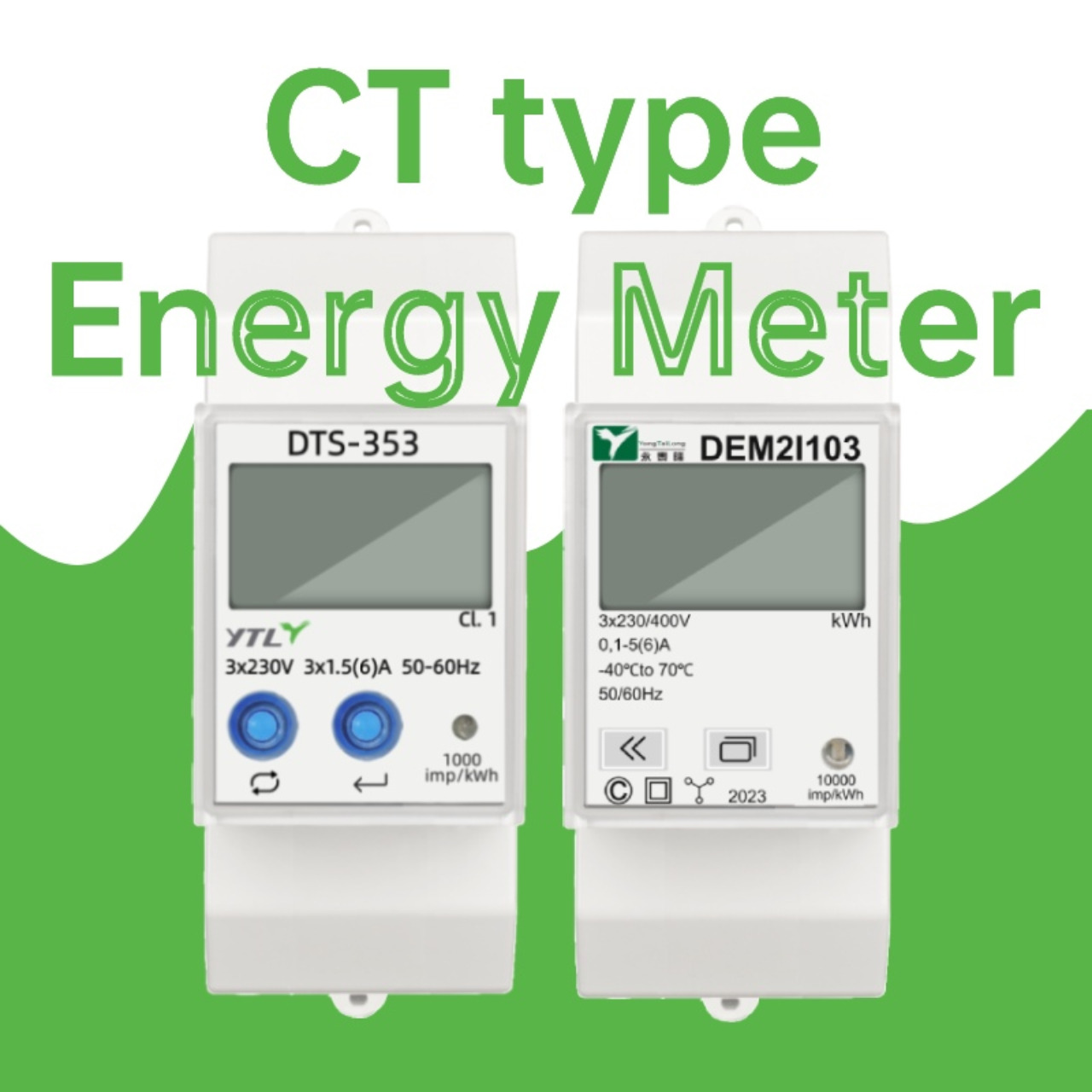

A CT energy meter, short for Current Transformer energy meter, is a device that measures current in a circuit using an external current transformer (CT). The current transformer is a critical component that converts high currents into proportionally smaller currents. This not only protects circuits from high-current impacts but also ensures precise current signals for the meter. As a result, CT energy meters accurately measure high-current loads, making them ideal for industrial and commercial applications.

The working principle of a CT energy meter is straightforward yet efficient. The current transformer is connected to the circuit, converting high currents into low currents, which are then fed into the meter. The meter’s internal circuitry measures these low currents precisely and calculates energy consumption. Additionally, CT energy meters integrate voltage measurement, either through external voltage transformers or direct voltage inputs. By combining current and voltage data, the meter accurately computes energy usage, providing a reliable basis for billing and power management.

II. Technical Features: Precision, Efficiency, and Intelligence

The prominence of CT energy meters in power metering stems from their distinct technical strengths:

1. High Precision: Utilizing advanced current transformers and metering circuits, CT energy meters achieve measurement accuracies typically at Class 0.5 or higher. This ensures fair and accurate billing, critical for both utilities and consumers.

2. Safety Isolation: By limiting secondary-side output to ≤5A, CT meters avoid direct contact with high-voltage circuits, enhancing operational safety.

3. Wide Measurement Range: With adaptable current transformers, CT meters can measure currents ranging from 0.5A to 5000A, accommodating diverse power systems and equipment scales.

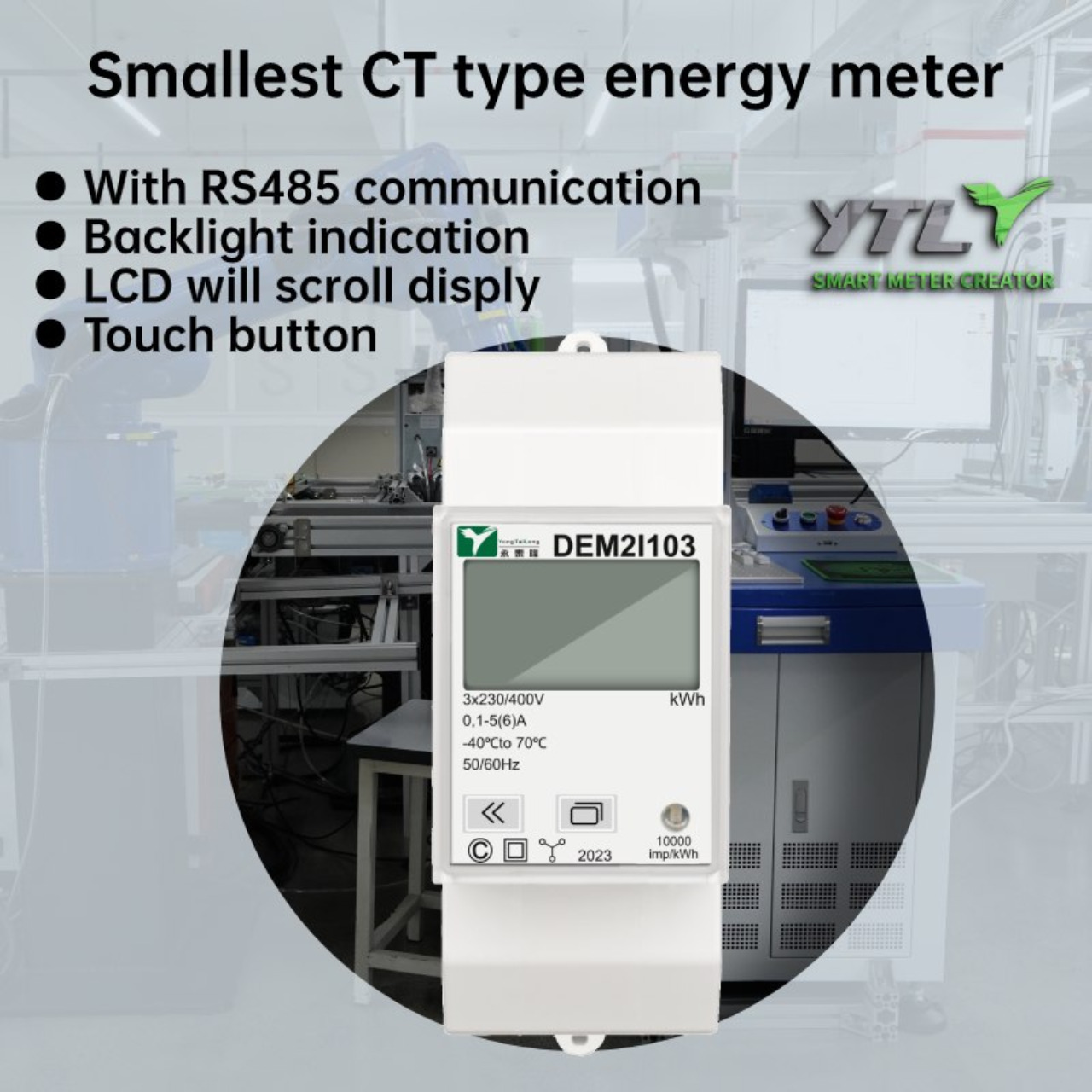

4. Smart Management: Modern CT energy meters integrate IoT technologies, enabling remote communication, data analytics, and smart alarms. Real-time data transmission to cloud platforms or management systems facilitates automated energy management. Smart alerts notify users of anomalies, enabling prompt troubleshooting.

III. Applications: Versatility Across Sectors

CT energy meters are widely deployed across industries, commercial sectors, residential areas, and renewable energy systems:

1. Industrial Power: Used for monitoring large-scale equipment, CT meters help industries optimize energy use, reduce costs, and improve efficiency.

2. Commercial Buildings: In malls, hotels, and office complexes, CT meters enable precise energy tracking for fair cost allocation and energy-saving initiatives.

3. Residential Use: With smart grid adoption, households leverage CT meters to monitor real-time consumption via mobile apps, fostering energy-conscious behavior.

4. Renewable Energy: For wind and solar systems, CT meters accurately measure grid-connected generation, supporting subsidy calculations and billing.

IV. Future Outlook: Driving Smart Grid Development

As smart grids and energy transitions advance, CT energy meters will play an increasingly pivotal role. Future trends focus on enhanced intelligence, networking, and integration. By incorporating IoT, big data, and AI, these meters will deliver smarter, more efficient energy management. Challenges remain, such as maintaining precision in dynamic environments and adapting to distributed renewable systems. Addressing these issues will shape the next generation of CT meters, solidifying their position as cornerstones of modern energy infrastructure.

In conclusion, CT energy meters are not just measurement tools but enablers of a smarter, greener energy future. Their evolution will continue to empower industries, optimize resource use, and accelerate the global transition to sustainable energy systems.
