It is a Smart STS Single-phase meter system, GPRS with 4G or 3G communication. Be able to measure in STS mode, currency mode, and post-paid (traditional) mode. Data will be sent to master station for management.
YTL Prepaid Meter 230V Split Type 1P 2 Wire 4G Electricity Meter Suppliers
Home / Products / smart meter / three phase smart meter / YTL Prepaid Meter 230V Split Type 1P 2 Wire 4G Electricity Meter
D129115-GPRS
Contact Us
SPEC Download

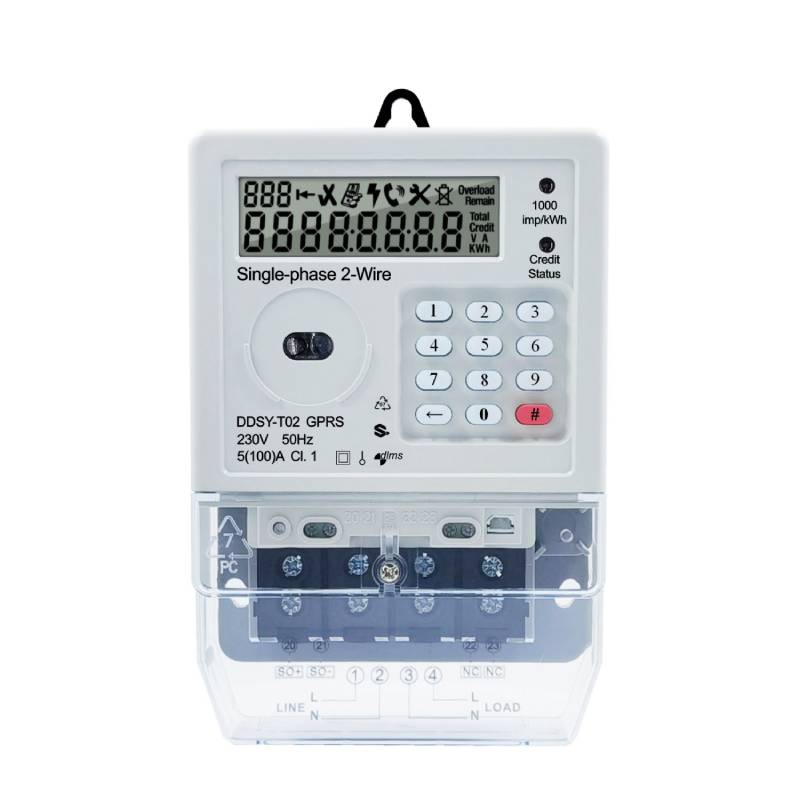

YTL Prepaid Meter 230V Split Type 1P 2 Wire 4G Electricity Meter
- Type
- Technical Parameters and Features
- Features
- det6
-
Type Communication CIU communication D124066 4G/3G/2G Bluetooth D129115 4G/3G/2G RF D12A067 PLC PLC/Bluetooth D124065 Wifine Bluetooth -
Parameter
Description
Accuracy class
1.0 (or better)-active energy
2.0-Reactive Energy
Voltage
230V
Frequency
50Hz
Ib/Imax
Direct type: 5/100A;
Min Starting Current
Class 1:40mA
Class 2: 50mA
Over-voltage rating
Withstand 420VAC for 48 hours
LCD
LCD 6+2 = 999999.99kW,
Alarm
PF;
voltage dip/Low voltage;
Temperature near terminal block
Tamper inputs
Meter cover open;
Terminal cover open;
Comms module cover open;
Strong magnetic field tamper
Communications
DLMS/COSEM(IEC62056)
Tariff
Multi tariff
Standards compliance
IEC62052-11:2003, IEC62053-21:2003, IEC 62056-21,
IEC62055-41:2018
-
Anti-tampering
Support load ground connection, bypass detection, open cover detection, influence of external magnetic field, abnormal voltage record, live&neutral double circuit metering.
Tariff
Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every timetable has a backup table for remote updating of backup timetable and configure the switching time. Meter will automatically switch the tariff table at the switching time.
Communication
Meter support 4G communication, with fall back capability to 2G and 3G.
Event
Open cover, magnetic field, load ground connection, reserve current, over-voltage, low-voltage, low-frequency, overload, power-fail, low remaining power, and token record.
Measurement
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy, the absolute value of total active tariff energy, total input energy of the current month, total input energy of last 12 month, total output energy of the current month, total output energy of last 12 month, and total reactive energy.
Mode
Meter has 3 operation modes: STS token mode, currency prepaid mode and post-paid (traditional) mode, which can be switched.
And the currency mode can be divided into tariff mode and step price mode. Modes can be configured through communication.
STS operation
Enter 20-digit token via keypad of meter or IHD, the meter display will be green Picture 1 if recharging is successful, will be red Picture 2 if is failed.
