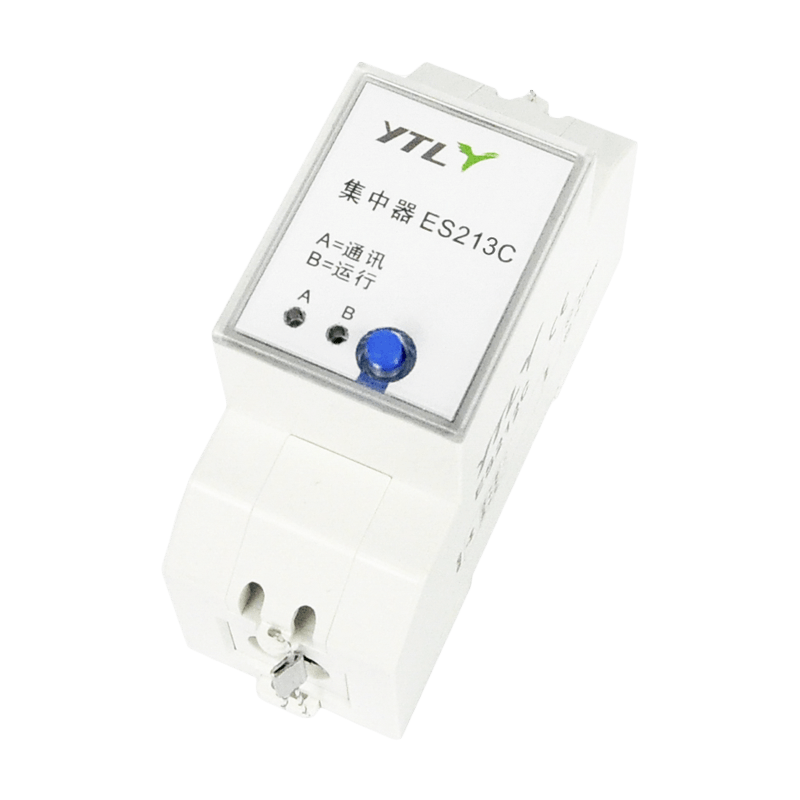

Model ES213C is a concentrator with Ethernet communication which can receive the real-time tasks issued by the master station through Ethernet , read the measurement data of the measuring device regularly and upload it to the master station. In addition, it can receive the data uploaded by the electricity meter actively through RS485 and upload it to the cloud.
Uploaded Data Measuring Device Regularly Concentrator with Ethernet Communication Suppliers
Home / Products / energy saving / Uploaded Data Measuring Device Regularly Concentrator with Ethernet Communication
J119009
Contact Us
SPEC Download
Uploaded Data Measuring Device Regularly Concentrator with Ethernet Communication
- Technical Parameters
- Description

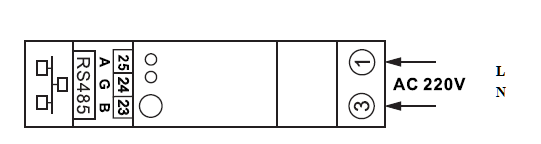

- Connectlon Diagram
- Meter Dimensions
- det6
-
Reference voltage： 220V±20% Rated frequency： 50Hz-60Hz communication： Ethernet
RS485 baud rate： 38400 Ethernet：
10/100M Adaptive Ethernet interface do not support AUTO MDI/MDIX
-

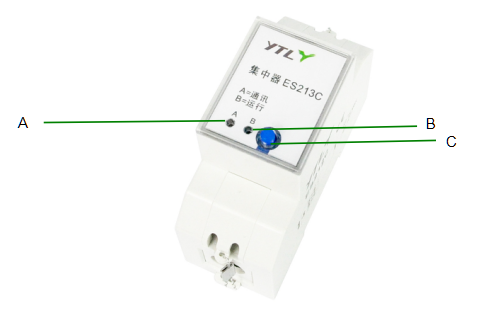

A communication
B working
C blue button: Long press 5-9S, release the button after the first fast blinking of LED B, restart the meter.Long press 14-18S, release the button after the second fast blinking of LED B, set to factory default.
Notes: Press the button to keep LED B permanently on, and release it when LED B fast blinking.
MaterialBase： PC+ABS Alloy material
Cover： PC+ABS Alloy material
Terminal cover： PC+ABS Alloy material
Terminal block： PC+ABS Alloy material
Lock： ABS
-
-

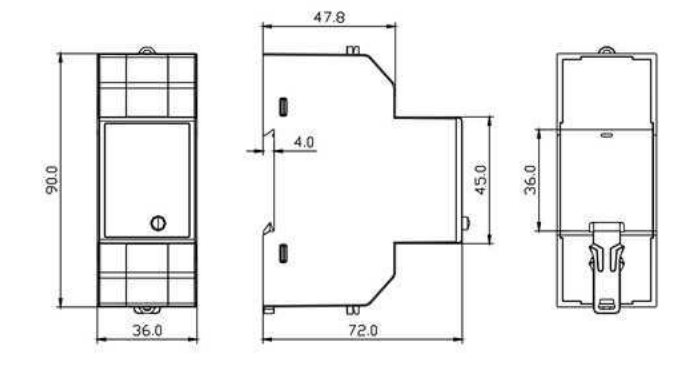

Height 90.0mm
Width 36.0mm
Depth 72.0mm
-
