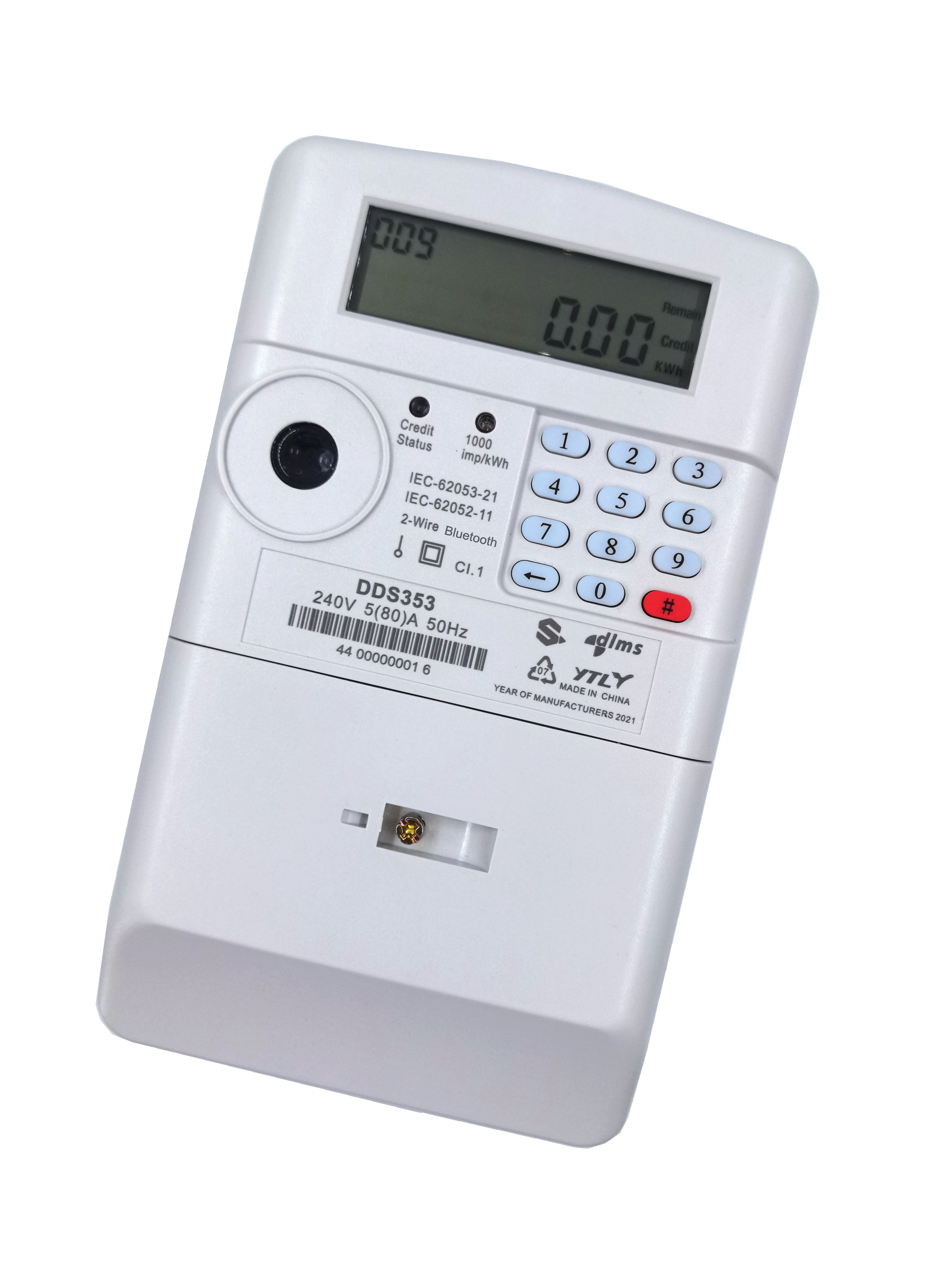

STS Prepaid Single Phase Suspension Wi-Fine Energy Meter

YTL prepaid meter Split Type 1P 2W Smart Energy Meter
Yongtailong STS single-phase prepaid energy meter communication mode adopts modular design RS485\PLC\Wi-Fine communication can be replacedso that users can check the electricity consumption data or buy electricity and recharge at home at any time,with strong real-time data. In addition the meter can be installed in a safer place to prevent electricity tamper.

TechnicalParameters
ConnectlonDiagram
Description
det6

Rated voltage:                     230V

Rated current:                 5(80) A

Constant:                 1000imp/kWh

Display of meter:                 LCD 6+2

Display of IHD:                           LCD 6+2

Relative humidity:   ≤85%

Rated frequency:         50Hz

Accuracy degree:             1.0

Power consumption:                      0.96W/2.524VA

Standard:

Functional test:                  IEC62052-11:2003

Impulse output:                  IEC62053-21:2003

Protection degree:          IP51

Communication protocol:                   DLMS

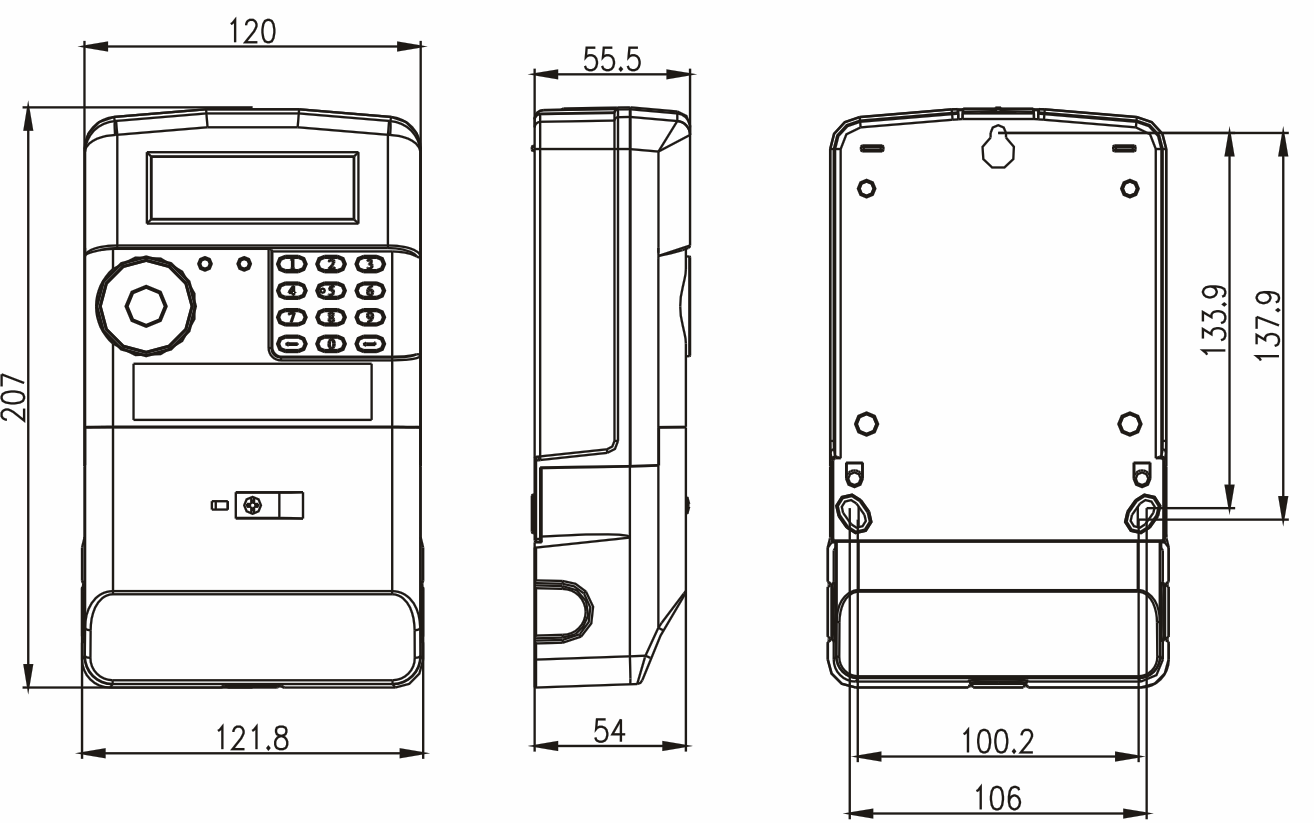

Dimension

Height: 207mm

Width: 121.8mm

Depth: 55.5mm
A Credit status

B Constant

C Seal

D LCD display

Material

Case: PC
