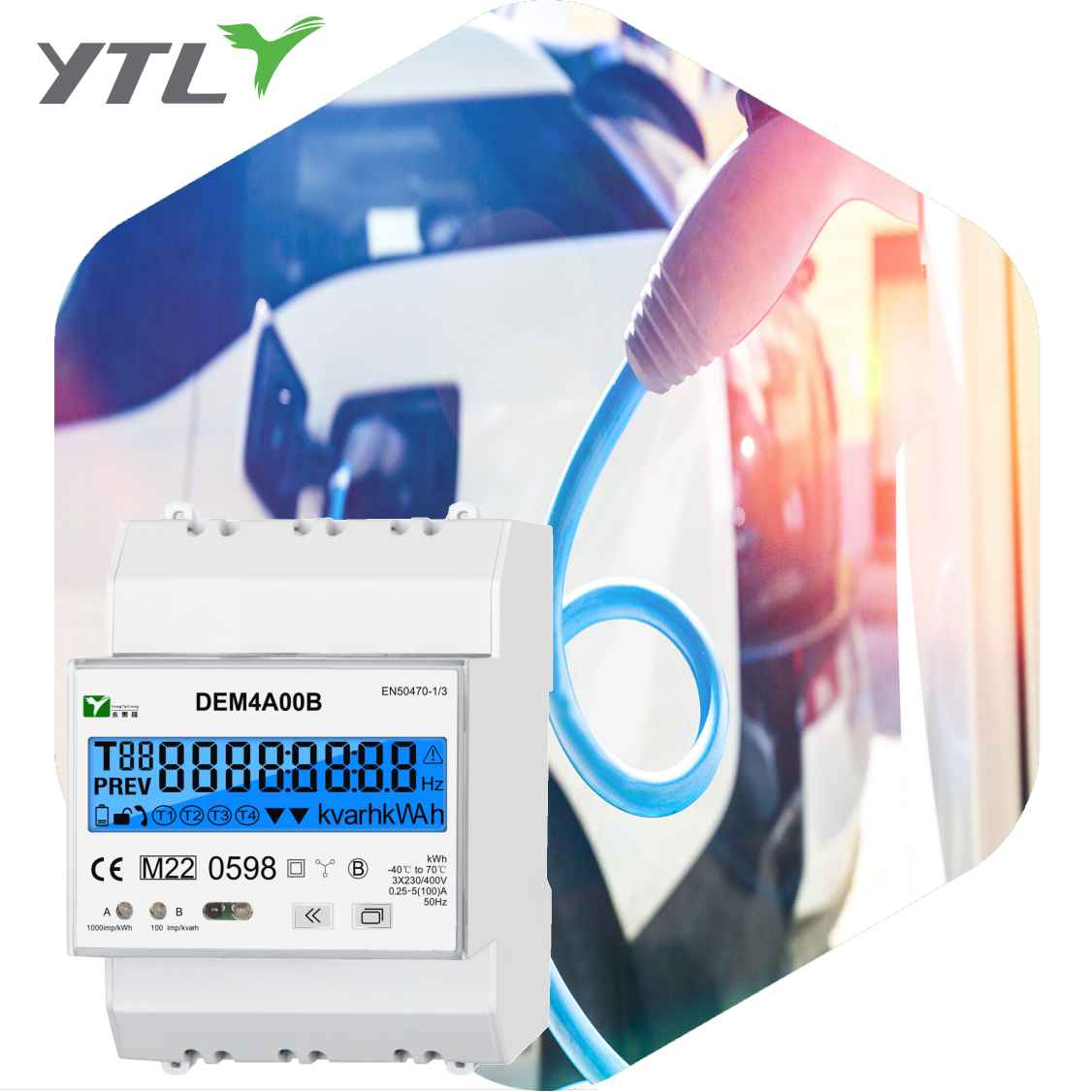

The appearance of the three-phase four-wire watt-hour meter adopts the Din rail type, which reduces the overall space in volume and is convenient for installation in the charging station. The meter metering mode can be set through RS485 communication, absolute value measurement, algebra and metering, only counting forward, forward and reverse measurement can be set through communication, suitable for various scenarios of applications; If solar power generation is involved, it can be immediately set to algebraic and bidirectional metering modes.
YTL DEM4A Wholesale Three Phase kWh Meter with MID B+D Certified Suppliers
Home / Products / Applications / MID EV charging / YTL DEM4A Wholesale Three Phase kWh Meter with MID B+D Certified
DEM4A009 - MID
Contact Us
SPEC Download

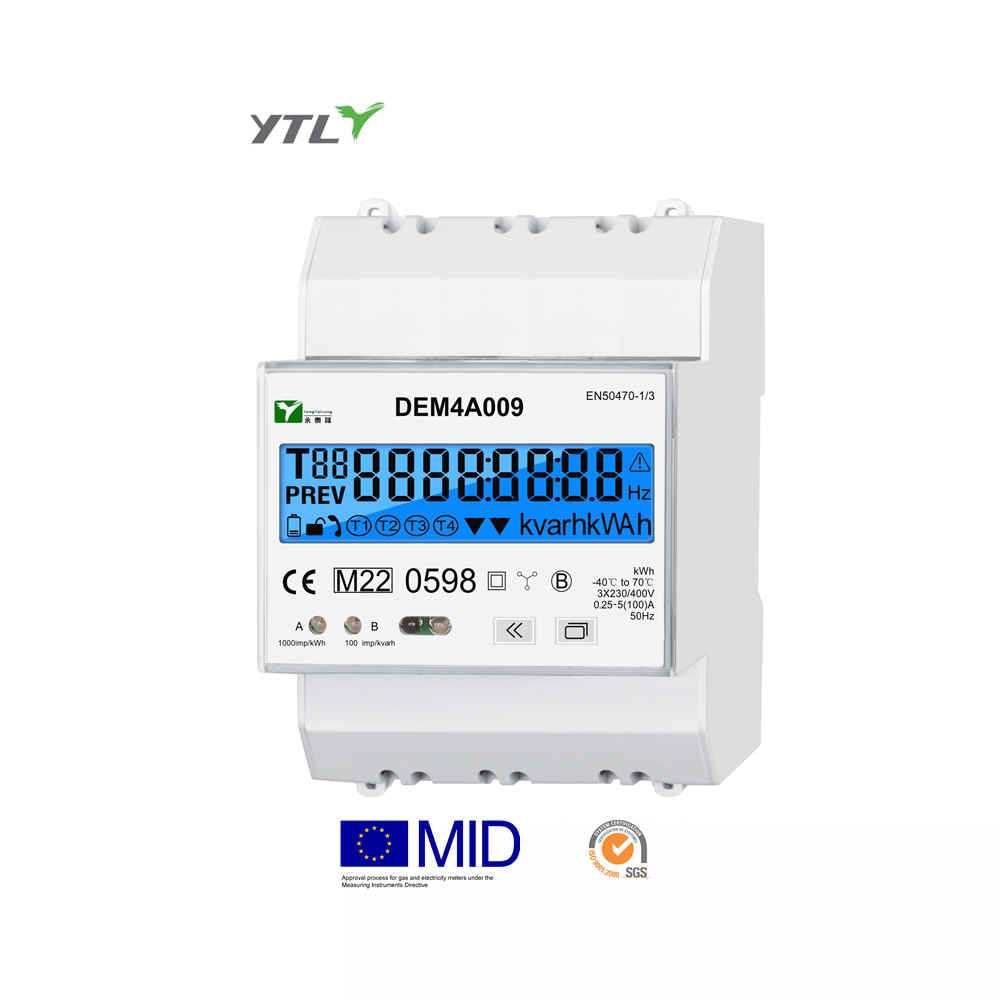

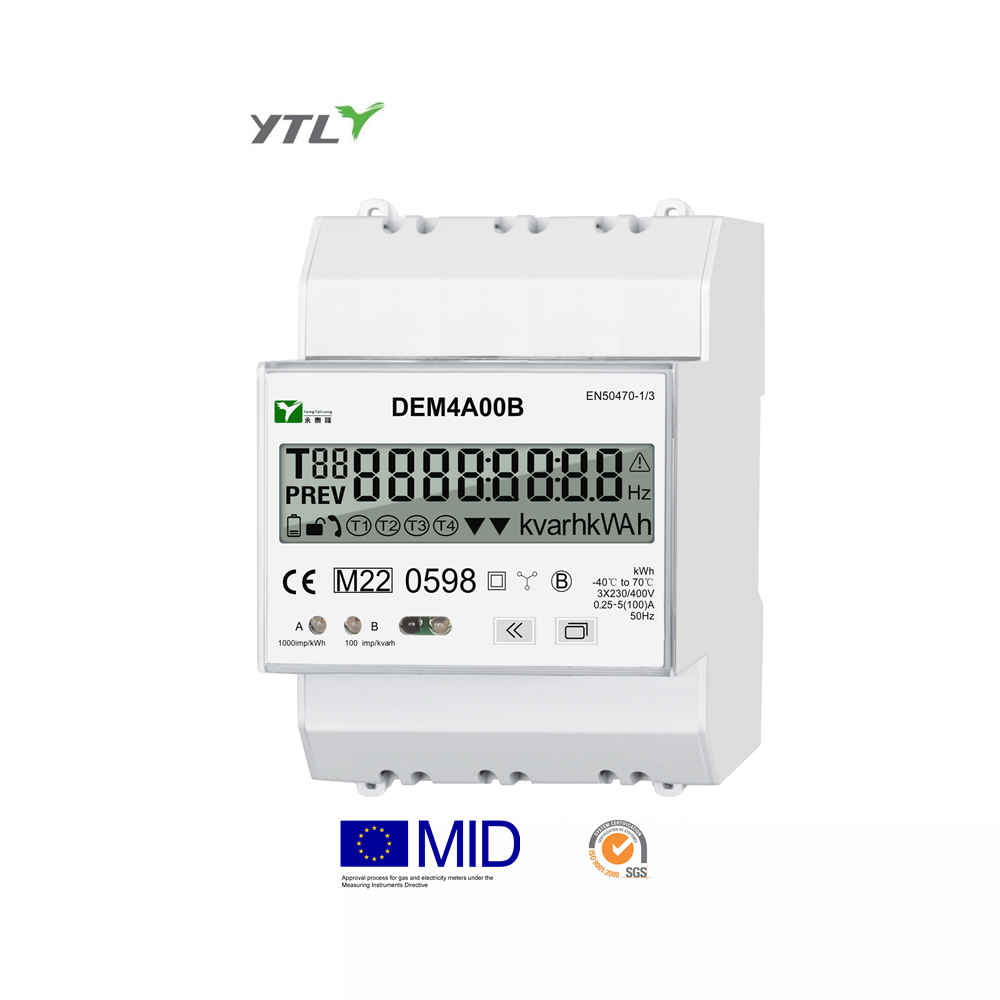

YTL DEM4A Wholesale Three Phase kWh Meter with MID B+D Certified
- Features
- Technical Parameters
- Description
- det6
-
Type
Software Version
V301
V301
V301
V301
V301
CRC
708A
5B61
2B60
5B61
2B60
Impulse Constant
1000imp/kWh
Communication
IR
IR,RS485 Modbus/DLT645
Baud rate
N/A
9600\19200\38400\115200
SO output
SO1 is SO output for kWh(default) or Active/reactive forward kWh optional
SO output for Active kWh
with variable constant
SO2 is SO output for kvarh (default) or Active/reactive reverse kWh optional
External Signal input port
Pulse width
Changeable pulse width according to current, the bigger the current the shorter the pulse width
Backlight
Blue
Li-Battery
N/A
N/A
YES
N/A
YES
Multi-tariff
N/A
N/A
YES
N/A
YES
Measurement Mode
1-total =forward
3-Total =forward +reverse (default)
Button
Touch button
Button function
Left:Page turning,
Default setting
1000imp/kWh,100ms
1000imp/kvarh,100ms
9600/NONE /8/1
Measurement Mode setting
Button
RS485 or Button
-
Standard:
EN50470-1/3
Rated Voltage:
3*230(400)V
Rated Current:
0,5-10(30)A,0,5-10(32)A,0,5-10(40)A,0,5-10(45)A,
0,5-10(50)A,0,5-10(60)A, 0,5-10(80)A,0,5-10(100)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Class B / Active 1.0, Reactive 2.0
LCD Display:
LCD 6+2 = 999999.99kWh
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
Case Protection
IP51 indoor
-
-
