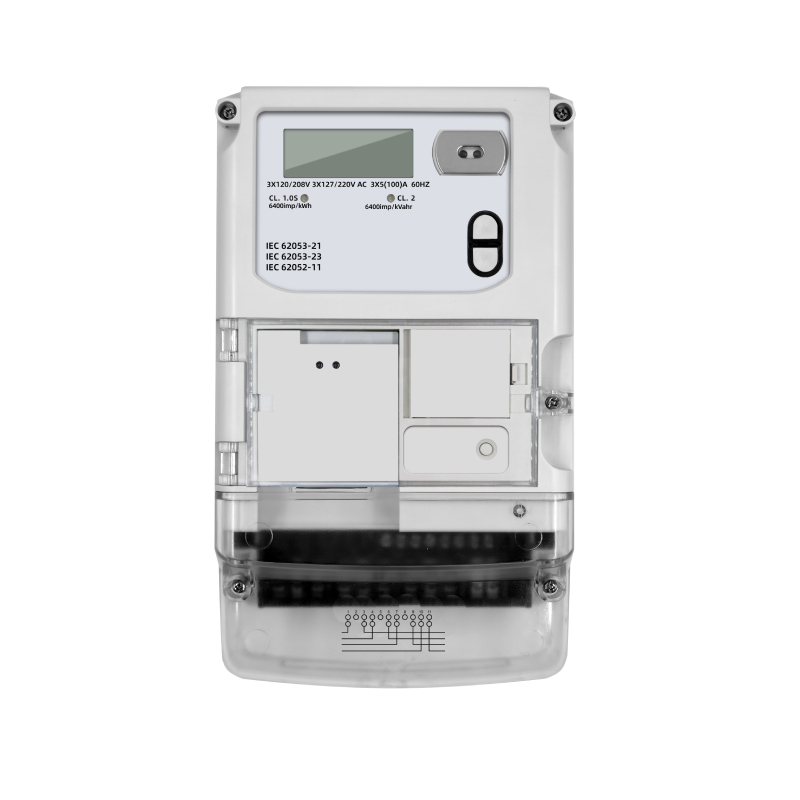

This is a three phase anti-tamper meter with RS485 communication function. It has alarming function if the cover is opened. LCD display different parameters like current, voltage, instantaneous power and kWh.
This meter is favored by customers with the features of high accuracy, wide measuring range, various anti-tampering functions.
| Voltage | 3x120/208V 3x127/220V AC |
| Current | 5（100）A |
| frequency | 60Hz |
| Constant | 6400imp/kWh 6400imp/kvarh |
| Accuracy class | Active power 1.0 Reactive power 2.0 |

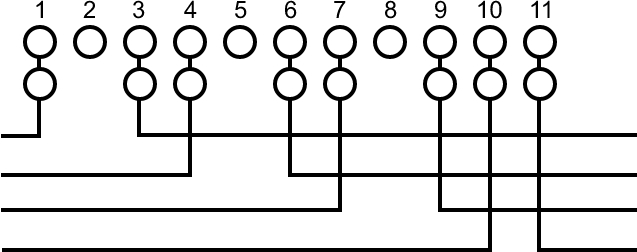

| Wiring | Direct Inductance |
| Measurement type | AC |
| Power supply | three phase four wire |
| Power type | switching power supply |
| Installation method | suspension Mounting |
| Environmental temperature | -20~75℃ |
| Application Environment | IP54， |
| outdoor, meter can work under 70 degree | |
| Sampling method | Shunt |
| Service life (reference temperature) | 10 years |
| Standards need to comply | IEC62052-11-2003; |
| IEC62053-21-2003; | |
| IEC62053-23：2003 | |
| IEC 62056-21 : DLMS/COSEM |
