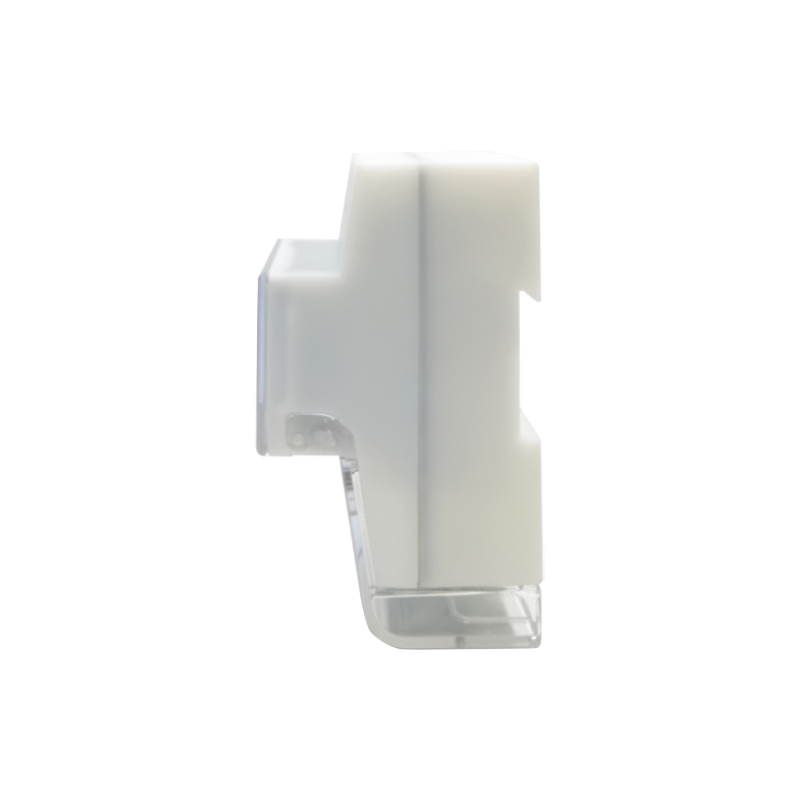

It is three phase din-rail meter with Wi-Fine(RF) communication. Be able to measure bi-directional and can set the energy in 4 tariffs. Data will be sent to master station via data collector for management.
It is three phase din-rail meter with Wi-Fine(RF) communication. Be able to measure bi-directional and can set the energy in 4 tariffs. Data will be sent to master station via data collector for management.
Type | Single phase Wifine energy meter | Three phase Wifine energy meter |
Communication |
RS485(9600\19200\38400\115200bps settable) IR (9600bps) WiFine (115200bps) Protocol: Modbus/DLT645 |
RS485(9600\19200\38400\115200bps settable) IR (9600bps) WiFine (115200bps) Protocol: Modbus/DLT645 |
The main characteristic and advantage:
1-Class 255 routing enables the collection of thousands of power metering devices simultaneously.
2-Zero networking time, thousands of three device are reading in a few seconds.
3-The high efficient private protocol(CRC-32 message verification) is adopted to prevent collisions and greatly improve the stability of communication.
4-Adopting different customer ID, global unique number UUID, different network ID and different wireless channel coding, combined encryption to ensure network security.
5-The power consumption is very low, enables the battery
Voltage | AC 230/400V±20% |
Current | 0.25~5(100)A |
Accuracy class | Active1.0 reactive2.0 |
Frequency | 50-60Hz |
Impulse constant | 1000imp/kWh 1000imp/kvarh |
Display: LCD | 5+2 |
Power consumption | ≤1W, 10VA |
Starting current | 0.4%Ib |
Temperature range | -40~70℃ |
Average humidity value of year | 75% |
Maximal value | 95% |
