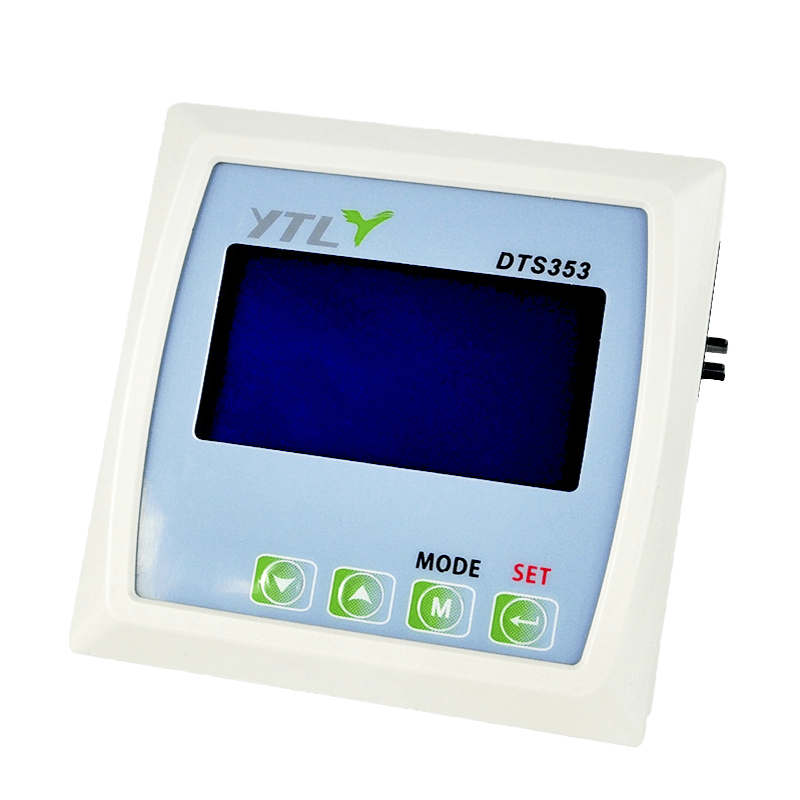

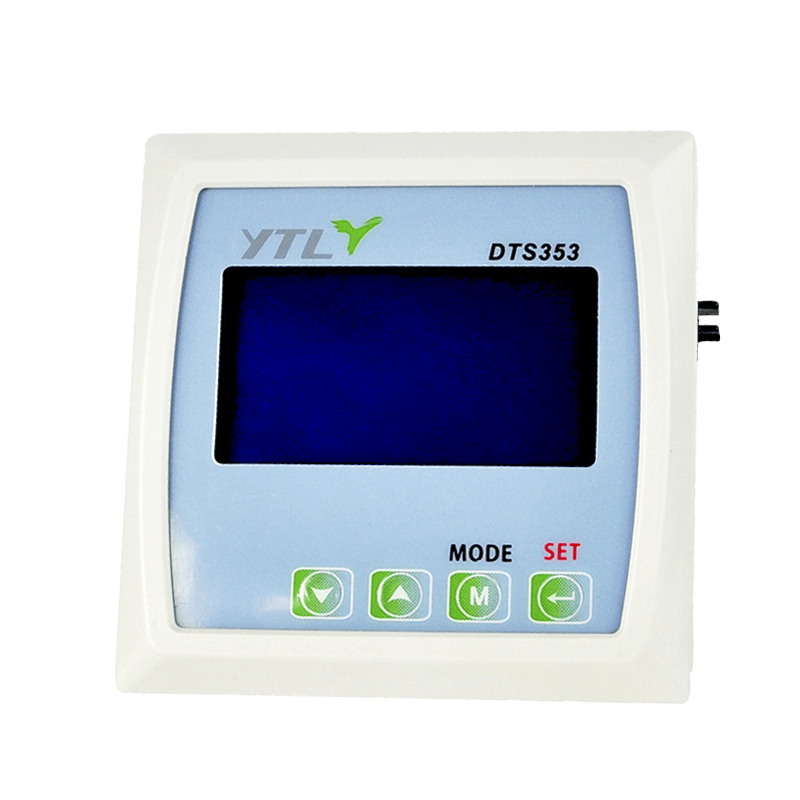

These two are panel meters of different sizes, also called embedded meters; It is mostly used for energy measurement on the distribution cabinet. It can measure voltage, current, power factor, active/reactive power, active/reactive electricity, demand, harmonics, etc. Three-phase panel meter, voltage 3*220/380V, current 3(6)A CT type, accuracy class 0.5. RS485 communication Modbus protocol, using dot matrix LCD.
Digital Device Measure Electronic Panel Electricity Meter Suppliers
Home / Products / multi-function energy meter / Digital Device Measure Electronic Panel Electricity Meter
- TechnicalParameters
- ConnectlonDiagram
- Description
- det6
-
Voltage
3*220/380V
Current
3*3(6)A
Pulse constant:
1000imp/kWh, 1000imp/kvarh
Display:
LCD 6+2
Working temperature:
-20-70℃
Average humidity value of year:
≤75%
Reference frequency:
50Hz
Accuracy class:
1, 2
Starting current:
0.4%Ib (1 class), 0.5%Ib (2 class)
Submerged:
with anti-submerged logic design
Power consumption:
≤1W,<8VA
-

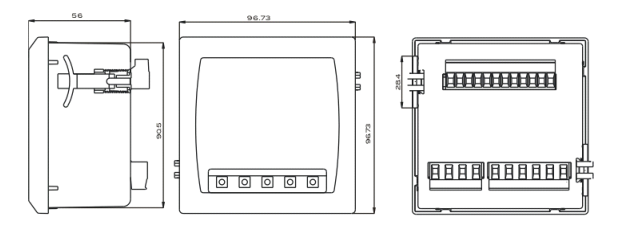

Height 96.73mm
Width 96.73mm
Depth 56mm
Weight 0.2925kg(Net) -

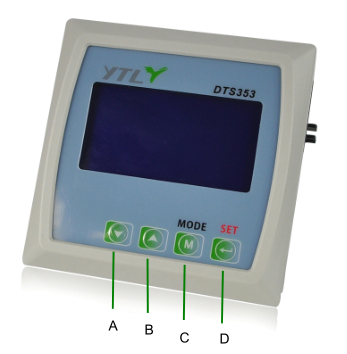

A Page up Button
B Page Down Button
C Mode Button (Exit)
D SET Button
Material
Case Grey flame resistant ABS
Panel Grey flame resistant ABS
Base Bottom Grey flame resistant ABS -
