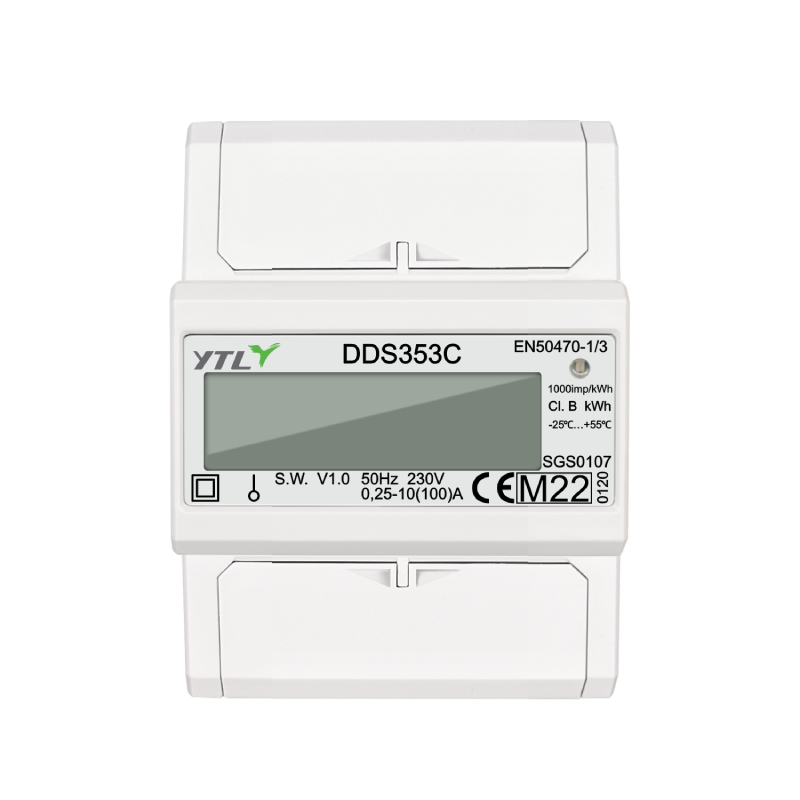

This is our another single phase Din-rail meter with MID certificate which could reach 100A.
Prevent reverse tamper and indication.
This meter has been MID B&D Certified by SGS UK,
More options to meet different requirements from market !
YTL Din-Rail Single Phase ODM Factory Electric MID Power Meter Suppliers
Home / Products / electronic energy meter / YTL Din-Rail Single Phase ODM Factory Electric MID Power Meter
D112022-MID
Contact Us
SPEC Download
YTL Din-Rail Single Phase ODM Factory Electric MID Power Meter
- TechnicalParameters
- Description

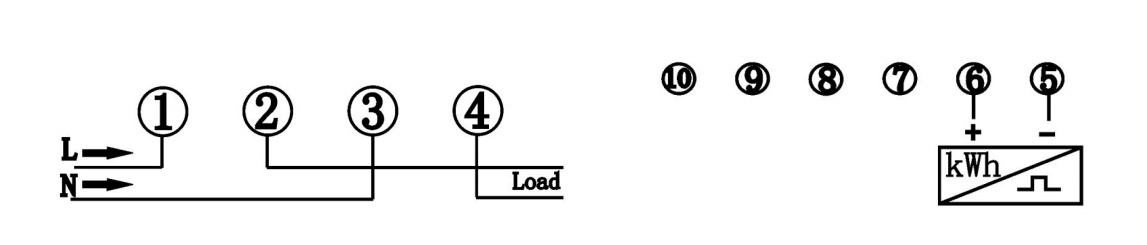

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage: 230VCurrent: 0.25-10(100)AAccuracy class: BStandard: EN50470-1/3Frequency: 50HzImpulse constant: 1000imp/kWhDisplay : LCD 5+2 = 99999.99kWhPower consumption: ≤1W (When 220V 20A)Starting current: 0.004IbCreep: logical design of Anti-creepTemperature range: -25~55℃Relative Humidity: ≤95%
-
MaterialCaseGrey flame resistant ABSTerminal cover Grey flame resistant ABSBase BottomGrey flame resistant ABS
-
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)
Height ,100mmWidth .76mmDepth .65mmWeight .0.2378kg(Net) -
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
-
