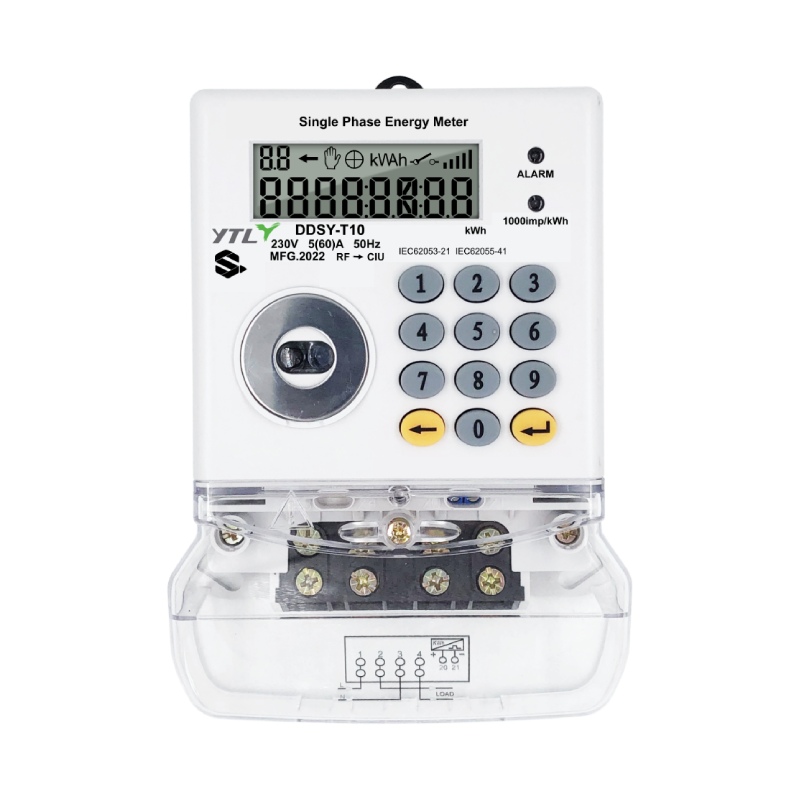

This is a single phase two wire WiFi prepayment keypad meter, the prepayment energy meter supports WiFi communication, built-in magnetic relay, can realize the functions of pay-as-you-go, remote meter reading, remote recharge, remote balance clearing/total power, overpower tripping, automatic tripping when the balance is exhausted, etc
Single Phase YTL Prepayment Smart Energy Meters with Wifi Communication Suppliers
Home / Products / electronic energy meter / Single Phase YTL Prepayment Smart Energy Meters with Wifi Communication
D124056
Contact Us
SPEC Download
Single Phase YTL Prepayment Smart Energy Meters with Wifi Communication
- Type
- TechnicalParameters

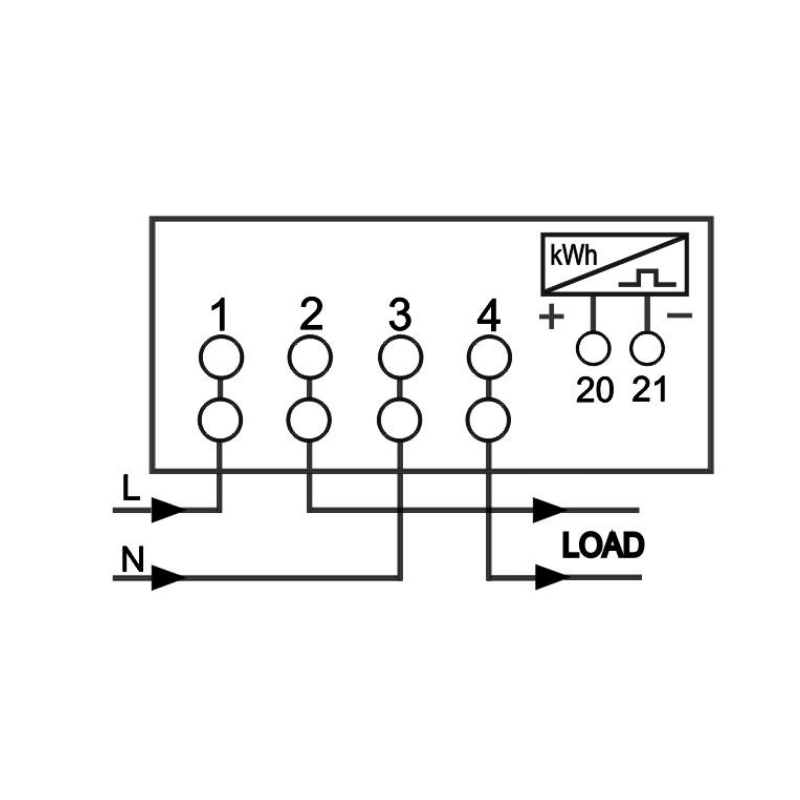

- ConnectlonDiagram
- Description
- Meter Dimensions
- det6
-
Type Communication CIU communication Functions D124023 IR / prepaid,Build in Relay,Open cover detection,Shunt D124033 LoRA RF prepaid,Build in Relay,Open cover detection,event alarm,Active,Reactive measurement D124036 RS485 / prepaid,Build in Relay D124055 Wifi / prepaid,Build in Relay,event alarm,Different measurements way D124056 Wifi Bluetooth prepaid,Build in Relay,event alarm,Different measurements way -
Voltage
230V
Current
5(60)A
Pulse constant:
1000imp/kWh
Display:
LCD 6+2
Operating temperature:
-20-55℃
Storage temperature:
-20-70℃
Relative humidity
75%
Reference frequency:
50Hz
Accuracy level:
Active1.0 reactive2.0
Starting current:
0.4%Ib (1 class), 0.5%Ib (2 class)
Submerged:
with anti-submerged logic design
Power consumption:
≤10VA ≤2W
-

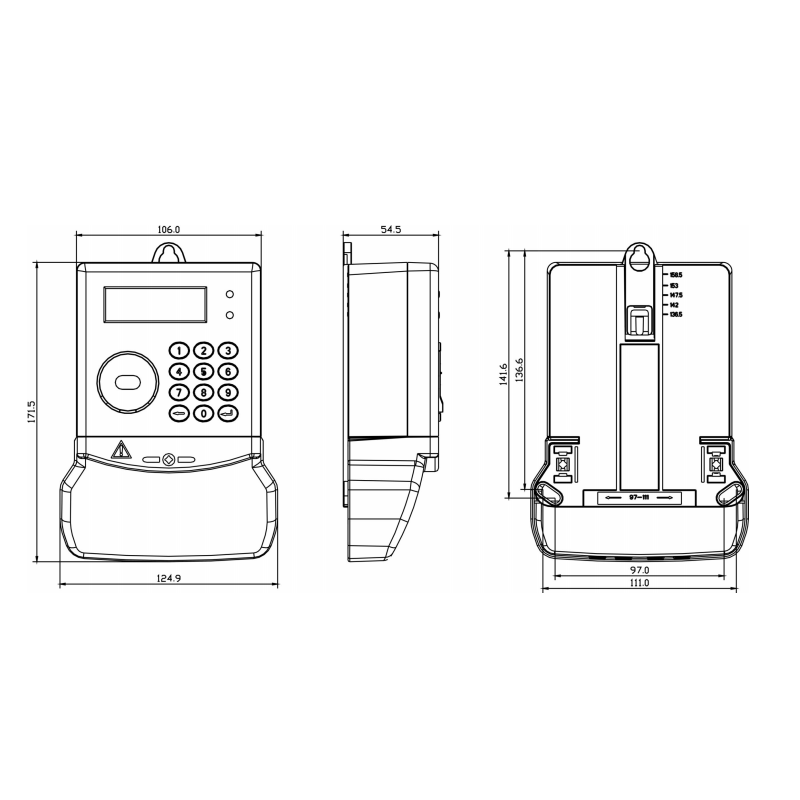

Length:171.5mm
Width 124.9mm
Depth 54.5mm -

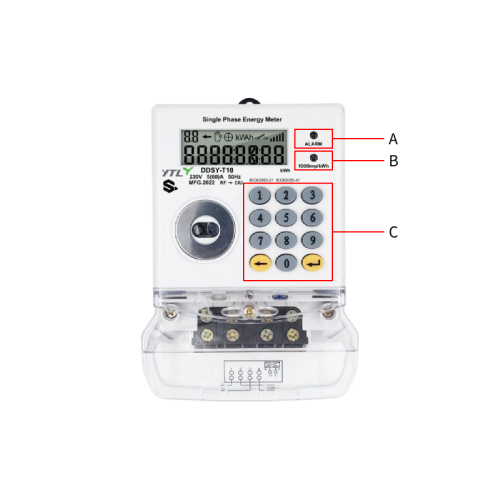

A Status indication
B Pulse indication
C Keypad -
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
