DDS353F+R

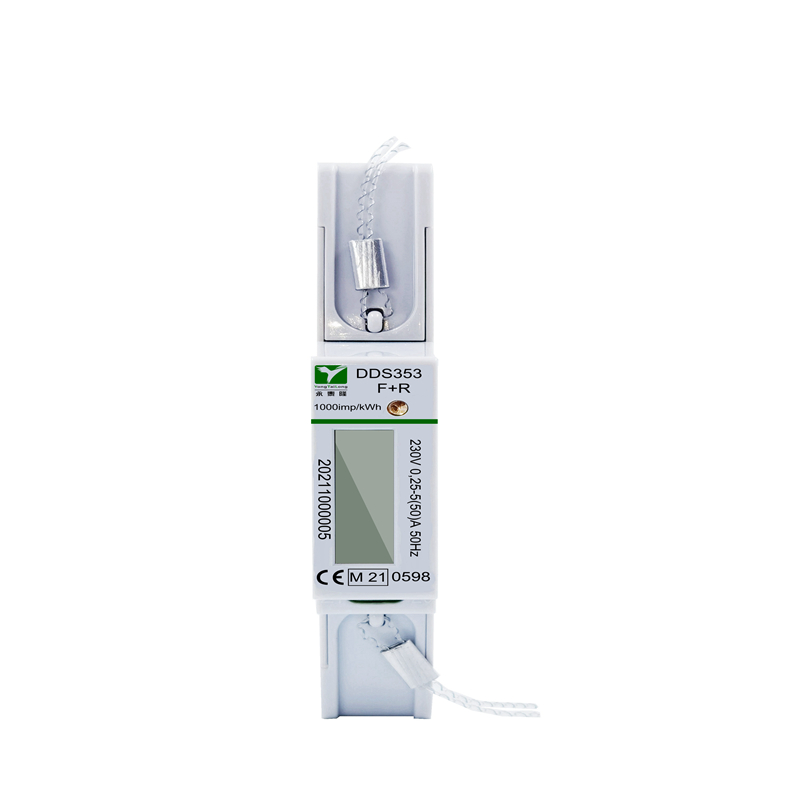

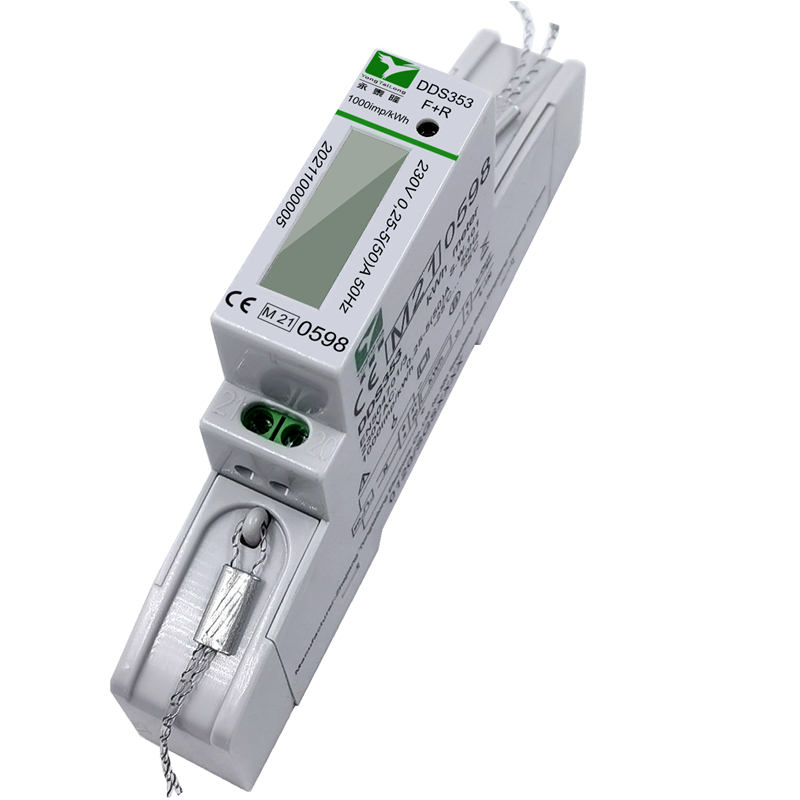

DDS353F+R Electricity Single Phase China kWh Meter Manufacturer Din Rail

Single section din rail single phase two wire electric energy meter, small size, easy installation; The pulse output can be used to verify the measurement accuracy error and collect the number of pulses, and the matching backlight can be lit for night viewing

Technical Parameters
Measurements
Meter Dimensions
Diagram for installation
det6

https://www.ytl-e.com/contact/

Applications

View all applications

View all products

D118081

Pass-Through 230 Volts 100A Din Rail kWh Energy Smart Meter
D619001

Universal with Button Energy Meter For EV Charger
K212-01-PLC

Din Rail Multifuction Digital Single Phase Prepaid Electric Smart Meter
D511001

YTL Company Anti-Tampering Stepper Counter Three Phase Seven Module Energy Meter
D619002

YTL DC Meter DEM2D Series 75mV Din-Rail 1 Phase 2 Wire CE Energy Meter
D519037

Commercial Installations Standard Three Phase Muliti-Function Energy Meter
Digital Device Measure Electronic Panel Electricity Meter
J119007

Real-Time Tasks 220V,50-60HZ Concentrator with GPRS Communication
D123073-Wi-Fine

YTL STS Prepaid Wi-Fine Energy Meter Single Phase Wall Mounted ODM
Energy Storage Standard Battery Cluster
Bidirectional Energy Storage Inverters
DDS353F+R+I

DDS353F+R+I Din Rail Energy Meter Digital Household 230V IoT Watt Hour Meter

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China DDS353F+R Electricity Single Phase China kWh Meter Manufacturer Din Rail Suppliers and DDS353F+R Electricity Single Phase China kWh Meter Manufacturer Din Rail Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

MID
KEMA
DLMS
IEC
KEMA
SGS

YTL News

View All News

Why do energy meters need to be calibrated regularly?

2024-12-20

1. Accurate measurement protects user rightsElectricity meters are the core equipment for electricity metering. Their accuracy may be affected by the external e...
The future development of AMI power meter

2024-12-19

As an important part of smart grid, AMI (Advanced Metering Infrastructure) Watt-hour meter has a bright future and is full of challenges. The following is a det...
What are the common certifications for electric meters?

2024-12-17

There are various types of certifications for electric meters, which aim to ensure that the meters meet the standards and requirements set by different countrie...
How to improve the efficiency of power management in industrial parks and reduce energy costs through three-phase electricity meters?

2024-12-13

1. Efficiency of three-phase power systemsThree-phase electricity is the most common power supply method in the current industrial field. Compared with single-p...
Anti-theft function of energy meters — Magnetic field protection

2024-12-12

The anti-magnetic field technology in energy meters is a crucial feature designed to ensure accurate and fair energy measurement. As electricity theft methods ...
The function of lead seal of electric energy meter

2024-12-10

The lead seal of electric energy meter plays a vital role in the work of electric power measurement and management, which is mainly embodied in the following as...

Content	Parameters
Standard:	EN50470-1/3
Rated Voltage:	230V
Rated Current:	0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A,0,25-5(50)A
Impulse Constant:	1000 imp/kWh
Frequency:	50Hz/60Hz
Accuracy Class:	B
LCD Display:	LCD 5+2 = 99999.99kWh
Working Temperature:	-25～55℃
Storage Temperature:	-30~70℃
Power Consumption:	<10VA <1W
Average Humidity:	≤75% (Non Condensing)
Maximum Humidity:	≤95%
Start Current:	0.004Ib
LED flash:	Impulse indication, pulse width = 80 ms

Meter Type	Measurement
DDS353	kWh Total =Forward energy+Reverse energy
DDS353AF	KWh Total=Forward energy only
DDS353F+R	1 = kWh total ( forward + reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export])
DDS353F-R	1 = kWh total (calculated by forward - reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353AI	1 = kWh total ( forward + reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353FI	1=Forward energy only 2= V (Voltage) 3= A (Ampere - current load) 4= W (Watt - current active power) 5= Hz (Frequency) 6 = PF (power factor)
DDS353F+R+I	1 = kWh total ( forward +reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export]) 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
DDS353F-R-I	1 = Total Kwh（Forward - Reverse) 2 = Forwarder energy display 3 = reverse energy display 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
