DC metering device using shunt sampling. Support RS485 communication.and the current can measure the maximum current of 2000A by using external shunt adoption.
Universal with Button Energy Meter For EV Charger Suppliers
D619001
Universal with Button Energy Meter For EV Charger

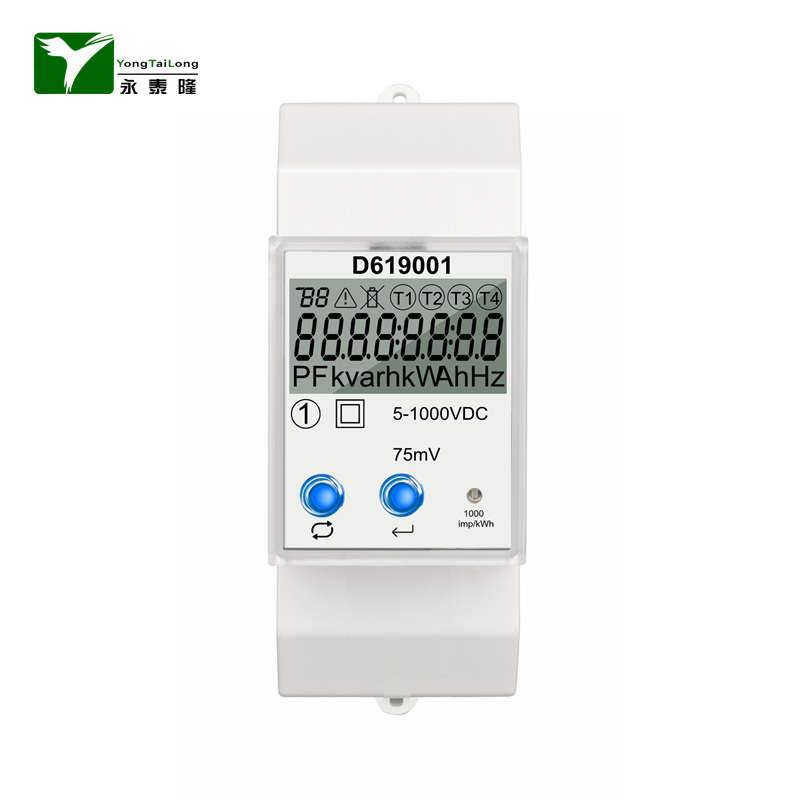

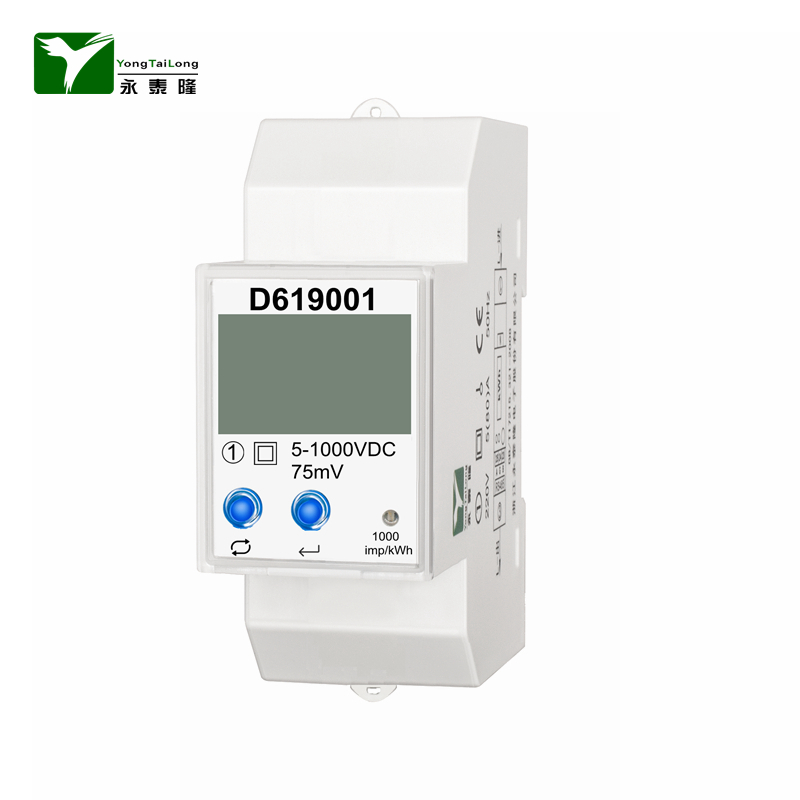

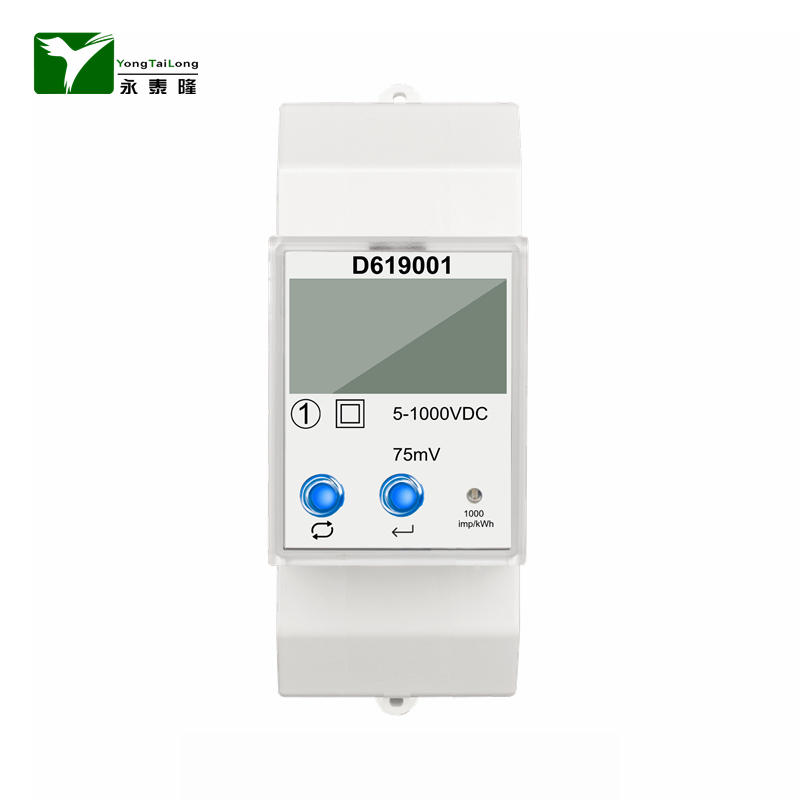

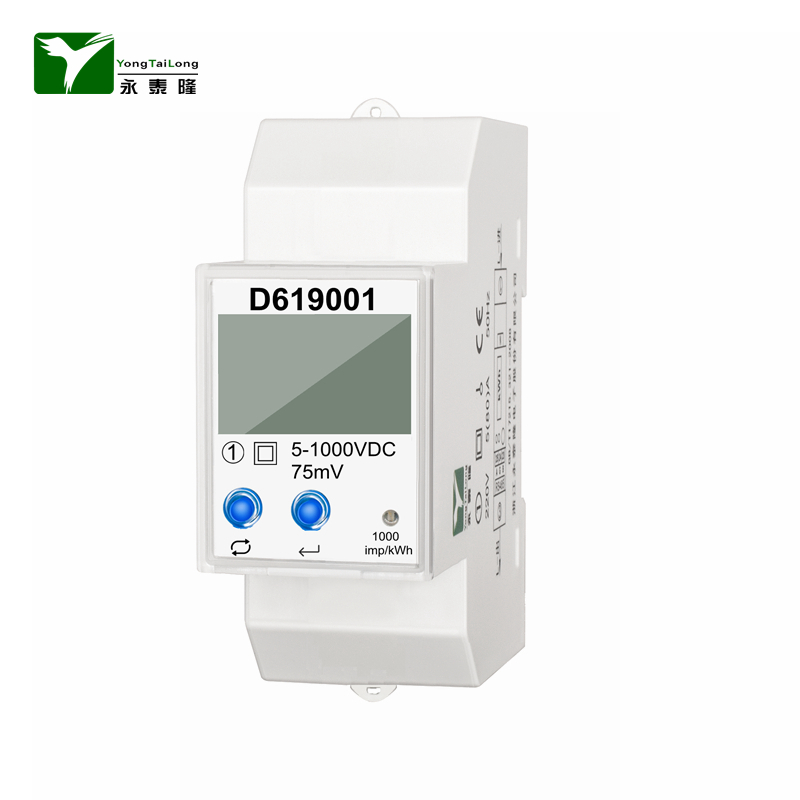

YTL DC meter DEM2D series 5~1000V Din-Rail 1P 2 module MultiChannel Meter CE Approved Renewable Energy
Contact Us
SPEC Download
- TechnicalParameters
- Description
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Type
DEM2D002
DEM2D102
DEM2D003
DEM2D103
Voltage input:
DC 5V~1000V
DC 5V~1000V
DC 5V~1000V
DC 5V~1000V
Auxiliary power supply
85~300V AC or 85-300V DC
85~300V AC or 85-300V DC
DC 9-60V
DC 9-60V
Current:
Shunt connection method, the primary side current supports up to 2000A
Connection signal :75mV
Shunt connection method, the primary side current supports up to 2000A
Connection signal :75mV
Shunt connection method, the primary side current supports up to 2000A
Connection signal :75mV
Shunt connection method, the primary side current supports up to 2000A
Connection signal :75mV
Accuracy current:
0.5%
0.5%
0.5%
0.5%
Voltage Accuracy
0.5%
0.5%
0.5%
0.5%
Active Power Accuracy
1.0%
1.0%
1.0%
1.0%
Active Accuracy
Class 1.0
Class 1.0
Class 1.0
Class 1.0
Constant:
According to 1000imp/kWh, 1.2 times the maximum voltage and current,
the pulse width is 1.2ms, corresponding to the current setting
According to 1000imp/kWh, 1.2 times the maximum voltage and current,
the pulse width is 1.2ms, corresponding to the current setting
According to 1000imp/kWh, 1.2 times the maximum voltage and current,
the pulse width is 1.2ms, corresponding to the current setting
According to 1000imp/kWh, 1.2 times the maximum voltage and current,
the pulse width is 1.2ms, corresponding to the current setting
LCD:
LCD 6+2
LCD 6+2
LCD 6+2
LCD 6+2
Consumption:
≤8VA ≤0.4W
≤8VA ≤0.4W
≤8VA ≤0.4W
≤8VA ≤0.4W
Temperature:
-25～70℃
-25～70℃
-25～70℃
-25～70℃
Humidity:
≤95%
≤95%
≤95%
≤95%
AC withstand voltage
4400V/min
4400V/min
4400V/min
4400V/min
Impulse withstand voltage
6.4kV - 1.2/50µS waveform
6.4kV - 1.2/50µS waveform
6.4kV - 1.2/50µS waveform
6.4kV - 1.2/50µS waveform
Battery
NO
YES
NO
YES
Muti-tariff
NO
YES
NO
YES
Relay
NO
YES
NO
YES
-
● RS485 communication: used for parameter setting, data reading; DTL645 protocol/Modbus Protocol
● DC metering: using shunt sampling, high measurement accuracy; can measure DC power, current, voltage,
● Alarm function: Over-current alarm: When the current exceeds the CT1 value set by the meter, an alarm event occurs, and the alarm light on the electrical surface panel lights up (yellow light),
At the same time, the value of the corresponding alarm status register will change, and the user can read this register through communication to determine whether an over-current alarm has occurred.
● Display: LCD with backlight ,Support Various parameters display,energy data and Instantaneous parameters
● Firmware upgrade: RS485 local upgrade
-
DEM2D103：
DEM2D102：
DEM2D002：
DEM2D003：
-
Height 90mm
Width 36mm
Depth 72mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head. - https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/05/双节rs485双协议直流表d619001英文规格书20220304.pdf
