ES110E is the smallest direct type meter in the world with multi-function.
It supports RS485 communication, and can read data remotely.
And it is very popular as its din-rail installation, good reliability, small size, light weight, beautiful appearance and other characteristics; comply with IEC standards.
YTL DDS353H Din-Rail Single Phase Multi-Function kWh Meter with CE Certified Suppliers
Home / Products / electronic energy meter / YTL DDS353H Din-Rail Single Phase Multi-Function kWh Meter with CE Certified

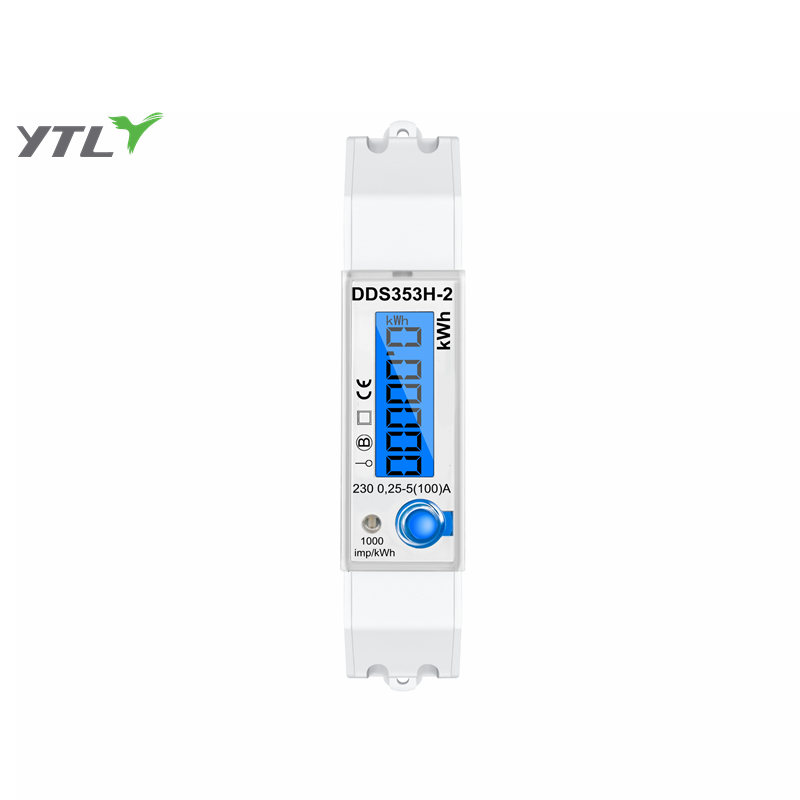

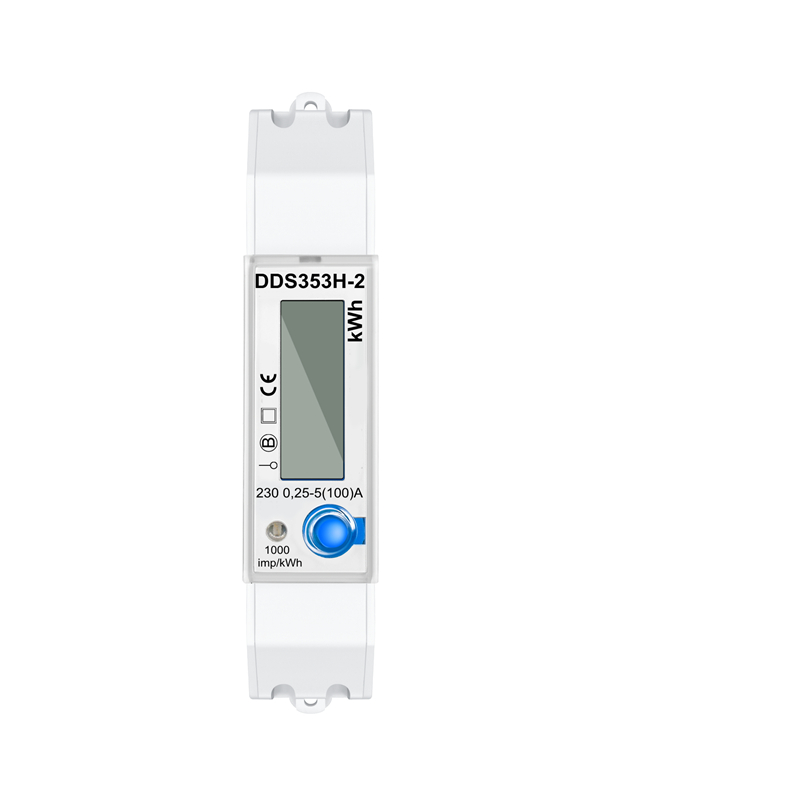

DDS353H-2 - MID
Contact Us
SPEC Download

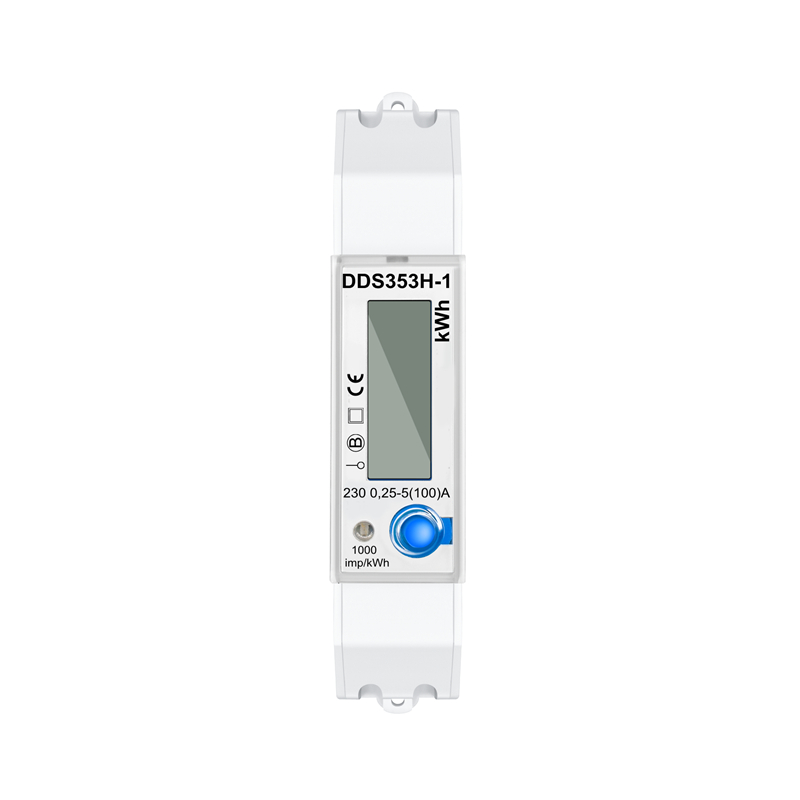

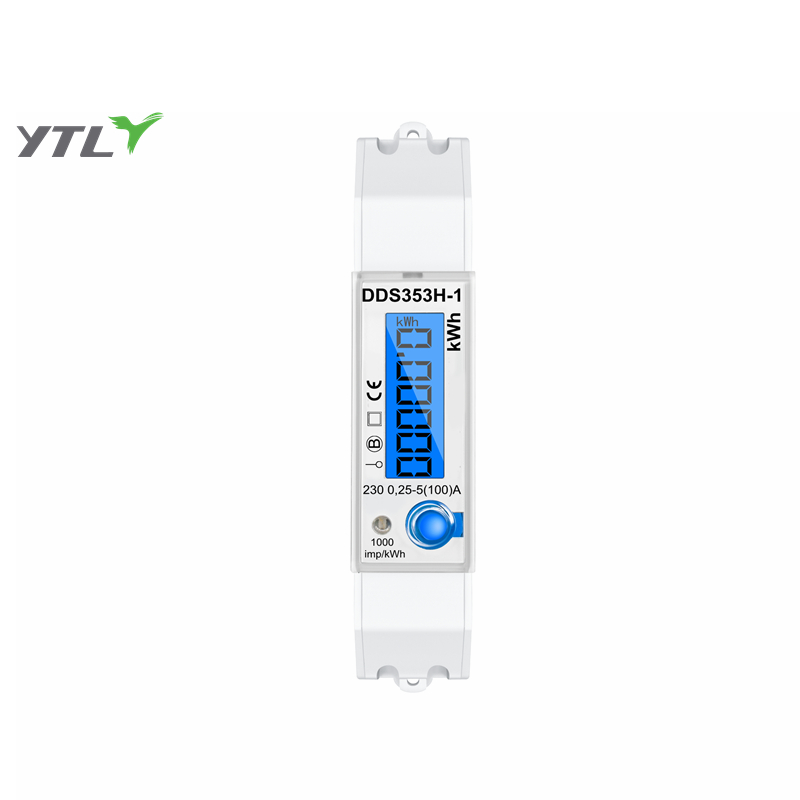

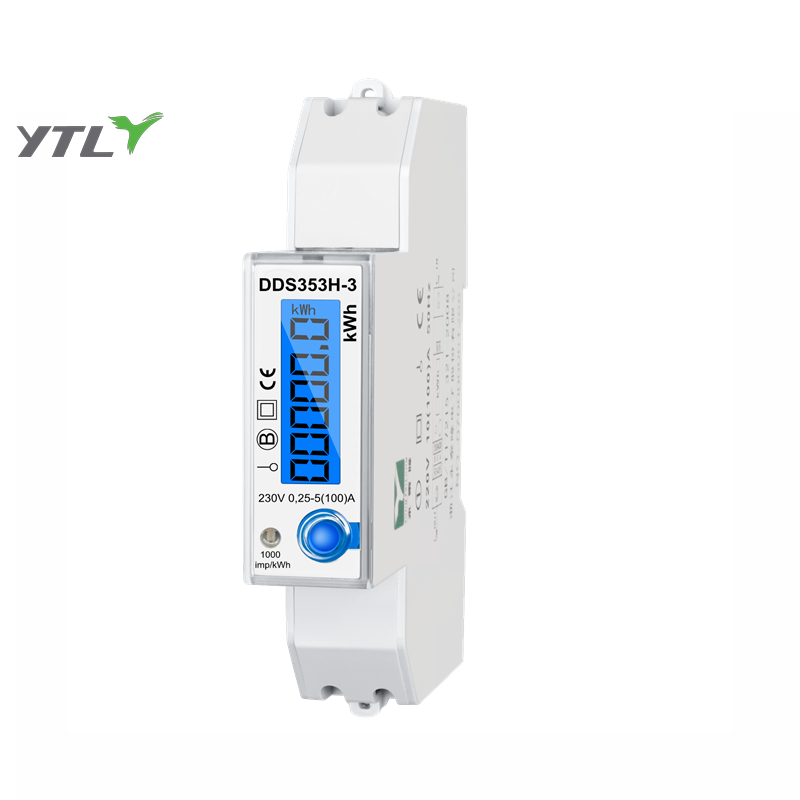

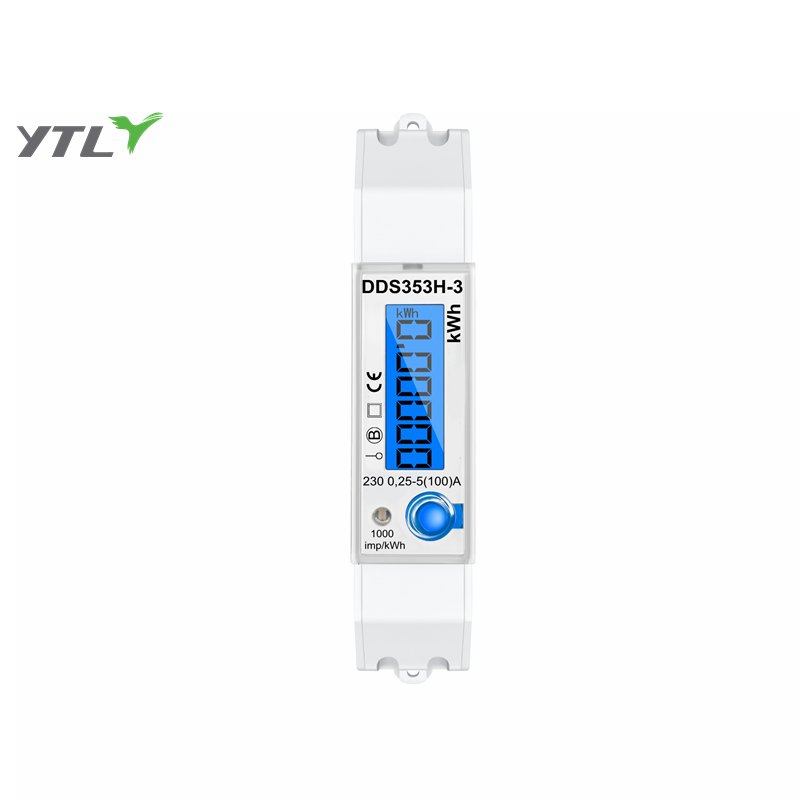

YTL DDS353H Din-Rail Single Phase Multi-Function kWh Meter with CE Certified
- TechnicalParameters
- Description
- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A, 0,25-5(40)A, 0,25-5(45)A
0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A
Impulse Constant:
100/1000/2000imp/kWh
Frequency:
50Hz
Accuracy Class:
Class B / Active 1.0
LCD Display:
LCD 5+1 = 99999.9kW
Working Temperature:
-25～55℃
Power Consumption:
≤8VA, ≤0.4W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
LED flash:
Impluse indication, pulse width = 90 ms
Materials:
Case: PBT, PC
-
.jpg?imageView2/2/format/jp2)
A LCD display
B Pulse LED
C Button:short time press means scrolling page button, long time press means functional button
D RS485 interface
MaterialBase： PC+ABS Alloy material
Upper cover： PC+ABS Alloy material
Terminal cover： PC+ABS Alloy material
Hook： ABS
-
-

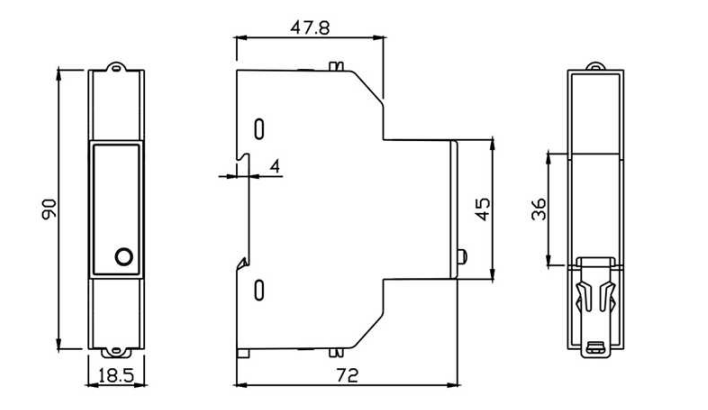

Height 90mm
Width 18.5mm
Depth 72mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;

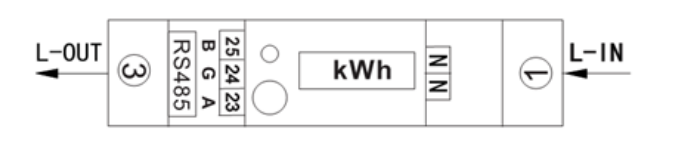

The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
-
