EMi30.1Y-W is a three-phase intelligent power sensor with WIFI and RS485 communication. It integrates functions of information collection, real-time monitoring, analysis and prediction, security alarm, energy consumption monitoring, etc. It is widely used in all kinds of electrical appliances, electromechanical Equipment, effectively achieve remote interconnection, security prevention and control, fault prediction, preventive maintenance, energy saving.
Electromechanical Equipment Energy Conservation Three-Phase Intelligent Power Sensor Suppliers
Home / Products / energy saving / Electromechanical Equipment Energy Conservation Three-Phase Intelligent Power Sensor
D519039
Contact Us
SPEC Download

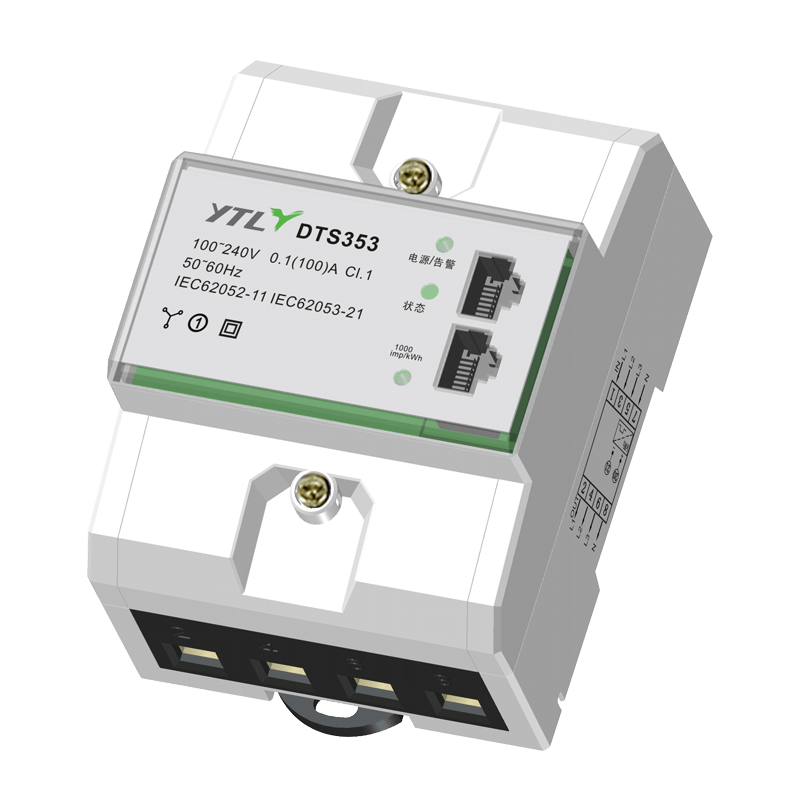

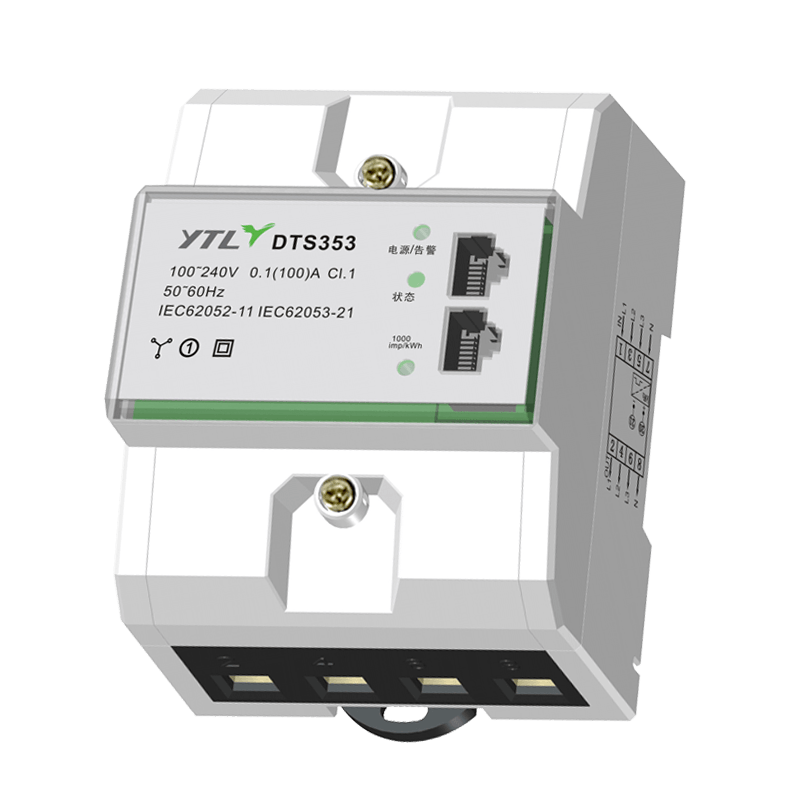

Electromechanical Equipment Energy Conservation Three-Phase Intelligent Power Sensor
- Technical Parameters
- Description
- Connectlon Diagram
- Meter Dimensions

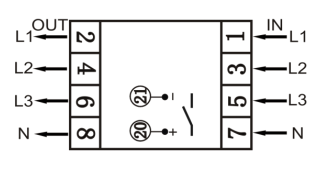

- Impulse Connection
- det6
-
Voltage
3*220/380V
Current
5（80）A
Frequency
50-60Hz
Accuracy
1.0
Standard
IEC62052-11、IEC62053-21
Starting current
0.004Ib
Consumption
≦10VA
Constant
1000imp/kWh
Installation
Din rail
Temperature
-25~70℃
Humidity
≦75%
Weight
0.33KG
Size
100*76*65mm
Communication：
WIFI/RS485
-

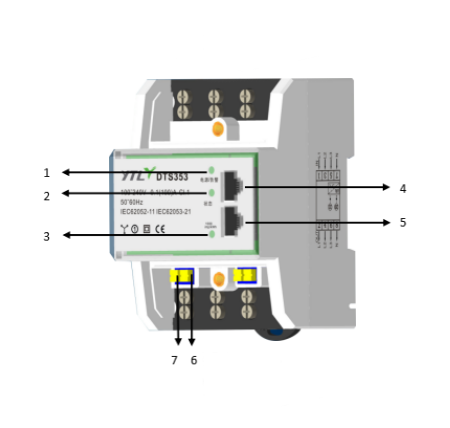

- Power/alarm indicator
- Communication indicator
- Pulse indicator
4, 5. 485 interface
6, 7. Switch output interface
- Incoming end, outgoing end terminal
-
-

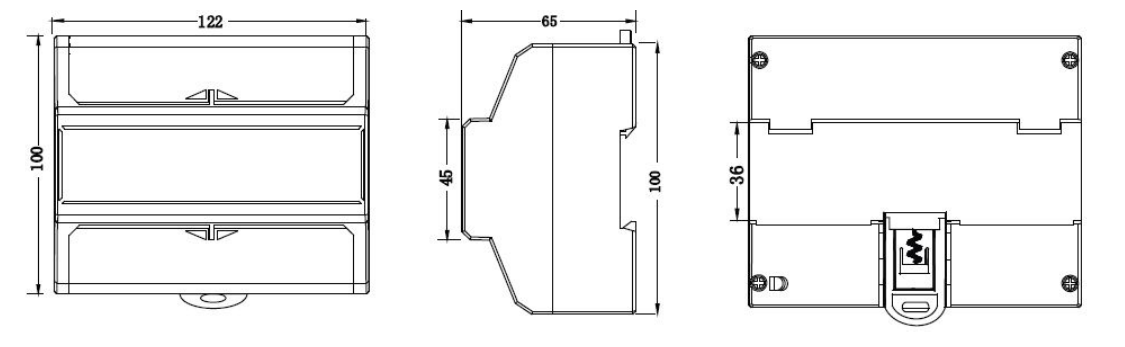

Length:100mm
Width 76mm
Depth 65mm -
Sensor installation requires an experienced electrician or professional and confirm that you have read this user guide;
During the installation process, if the casing is obviously damaged due to severe impact or falling, please do not install, power on, and contact our company or dealer in time；
The sensor has passed the inspection before leaving the factory, and it is sealed and can be directly installed and used；
The sensor should be installed in an indoor or outdoor meter box. The installation table is fixed on a solid refractory wall with no corrosive gas in the air； -
