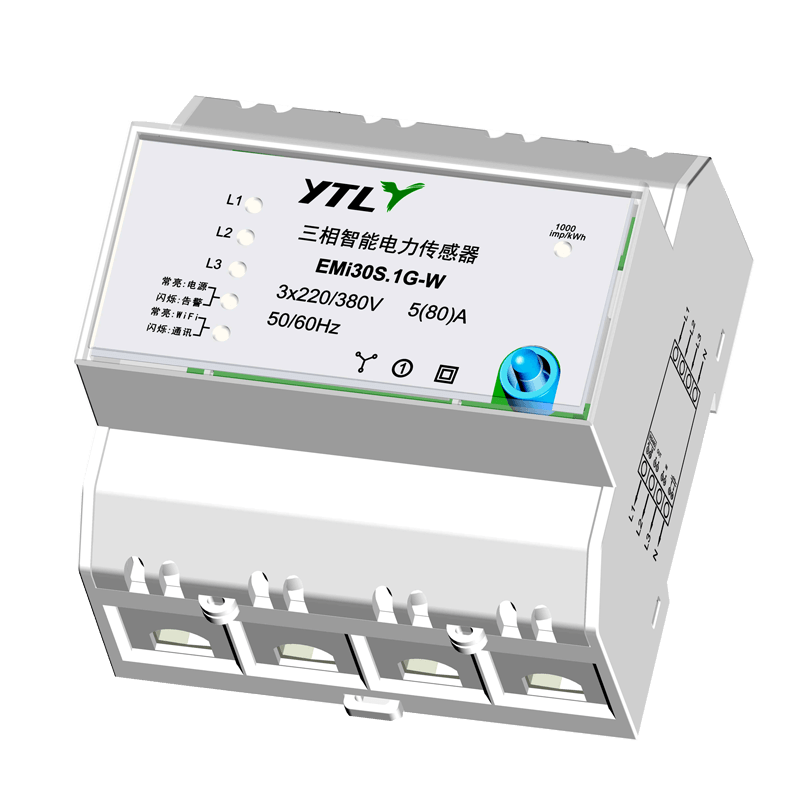

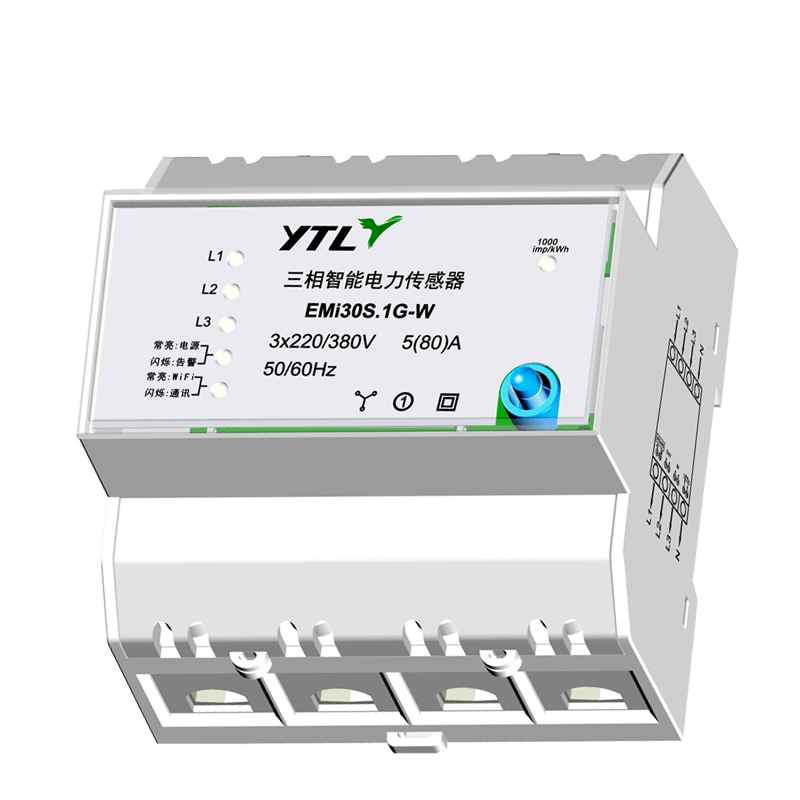

EMi30S.1G-W is a three phase smart electricity sensor, which is including measurement, control, safety alarm, power consumption monitoring, timing task based on WIFI and RS485 communication. It is used for remote connection, safety monitoring and control, malfunction foreknow, preventive maintenance, energy-saving and cost-reducing.
Energy Saving Intelligent Electricity Sensor Suppliers
- TechnicalParameters
- Description

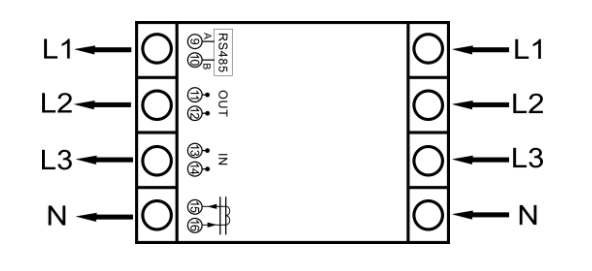

- ConnectlonDiagram
- MeterDimensions
- det6
-
Voltage:
3*220/380V
Current:
5（80）A
Frequency:
50-60Hz
Accuracy Class:
1.0
Reference Standard:
IEC62052-11, IEC62053-21
Start Current:
0.004Ib
Power Consumption:
≦10VA
Pulse Constant:
1000imp/kWh
Installation Type:
DIN Rail
Working Temperature:
-25~70℃
Rated Humidity:
≦75%
Net Weight:
0.47KG
Dimensions:
90*90*72mm
Communication Method:
WIFI, RS485
-

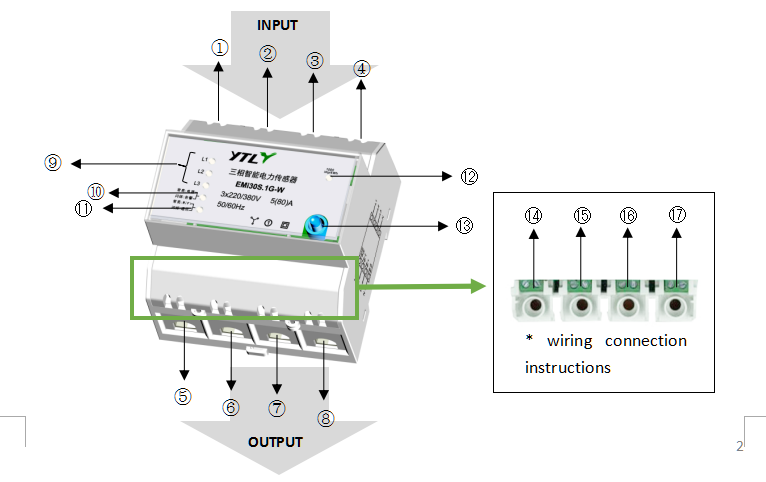

1, 2, 3, 4
L1, L2, L3, N (INPUT)
5, 6, 7, 8
L1, L2, L3, N(OUTPUT)
9
LED for Phase A, B, C indicator
10
Power Supply/Alarm indicator
11
WIFI Communication LED
12
Pulse indicator
13
Button
14
RS485 Port
15
Relay output terminal
16
Relay input terminal
17
Residual current transformer port
-
-

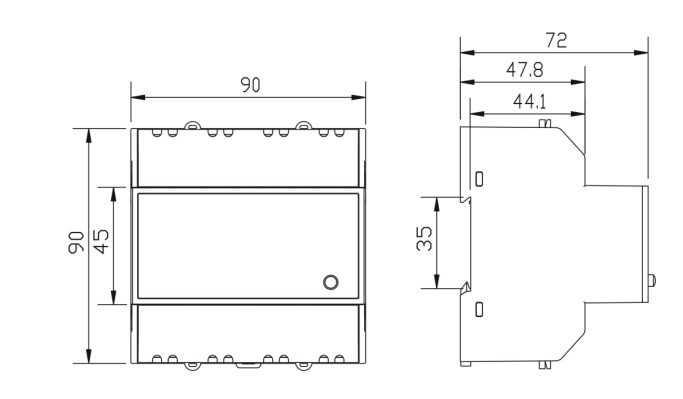

Length:90mm
Width 90mm
Depth 72mm -
