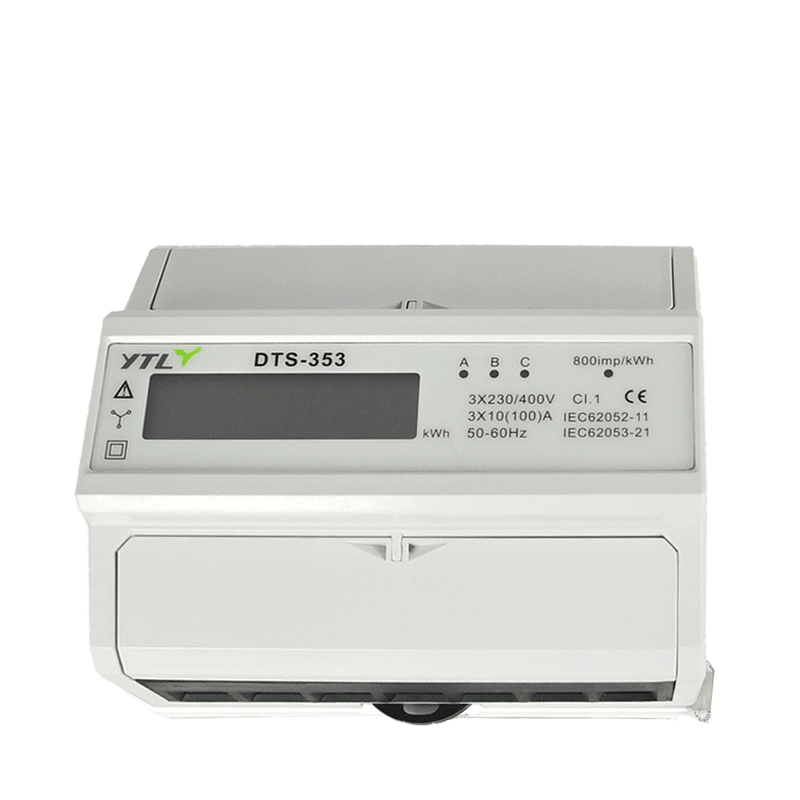

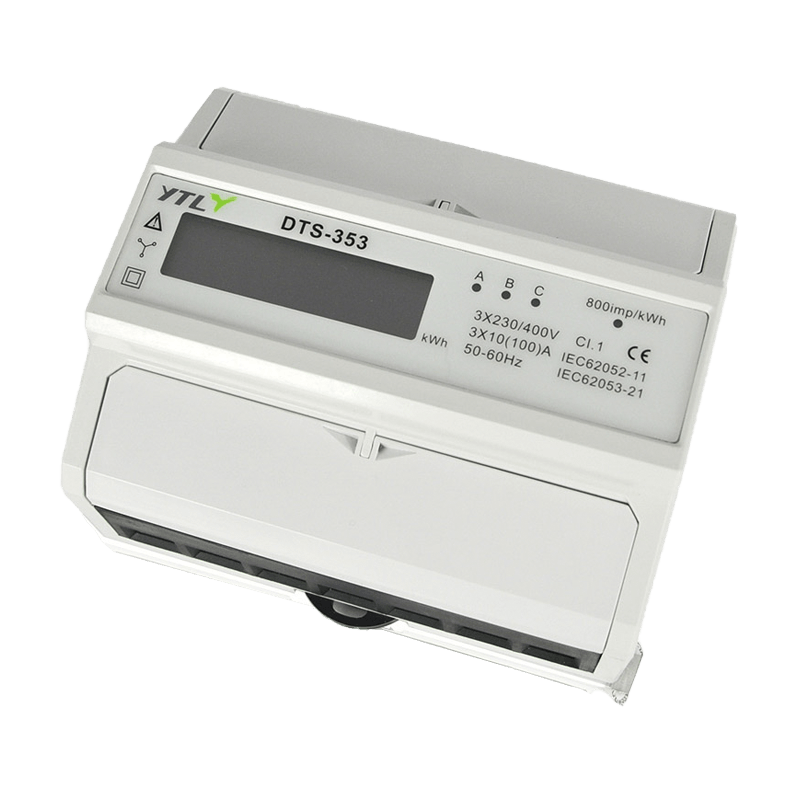

This is a three phase seven module Din-rail meter with RS485 communication ( MODBUS protocol ).
YTL DTS353 3*230/400V DIN rail 3P 7 Module Dual Tariff MID B+D Certificate Electricity Pulse Meter。while using, the power of the A\B\C three phases is indicated by a separate pulse indicator by flashing fast and slow.
|
Voltage: |
3*220/400V |
|
Current: |
3*10(100) A |
|
Accuracy class: |
1.0 |
|
Standard: |
IEC62052-11, IEC62053-21 |
|
Frequency: |
50-60Hz |
|
Impulse constant: |
800imp/kWh |
|
Display: |
LCD 6+1 |
|
Temperature range: |
-20～70℃ |
|
Relative Humidity: |
≤95% |

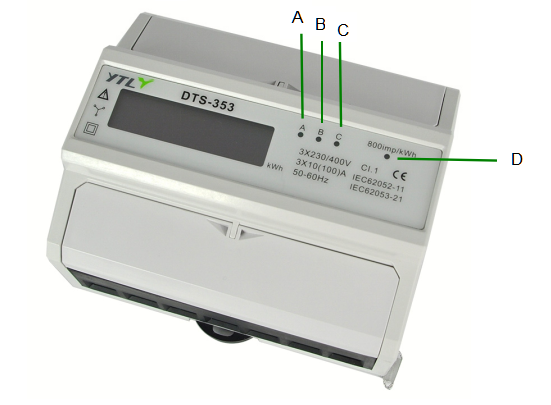

A Power Indication of Phase A
B Power Indication of Phase B
C Power Indication of Phase C
D Impulse Output
Material
Case: Grey flame resistant ABS
Terminal cover: Grey flame resistant ABS
Base Bottom: Grey flame resistant ABS

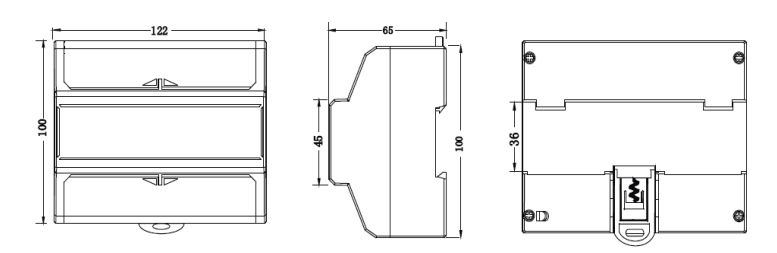

Height 100mm
Width 122mm
Depth 65mm
Weight 0.3943kg(Net)

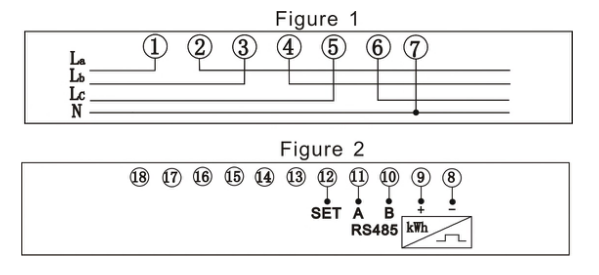

Connect the meter correctly to computers or other applicable communication equipments, and connect to the power supply. The original address is 0.
Usage and setting of software please see below Figure and Modbus protocol. Pls press SET button when writing data.
