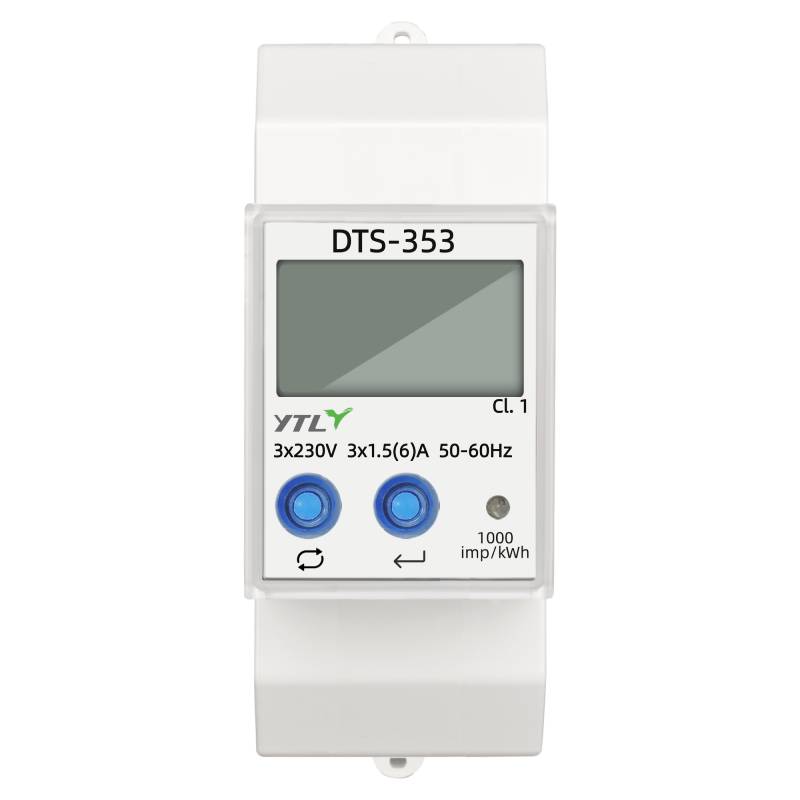

Three-phase CT type energy meter, using double-section din rail appearance, cover width is only 36mm, CT transformation ratio can be set. Designed with RS485 communication for parameter setting and reading of power data. The panel is designed with 2 buttons for data page turning and parameter setting.
YTL CT type Three Phase Two Wire Din Rail Electricity kWh Meter Suppliers
Home / Products / multi-function energy meter / YTL CT type Three Phase Two Wire Din Rail Electricity kWh Meter
- Technical Parameters
- Features

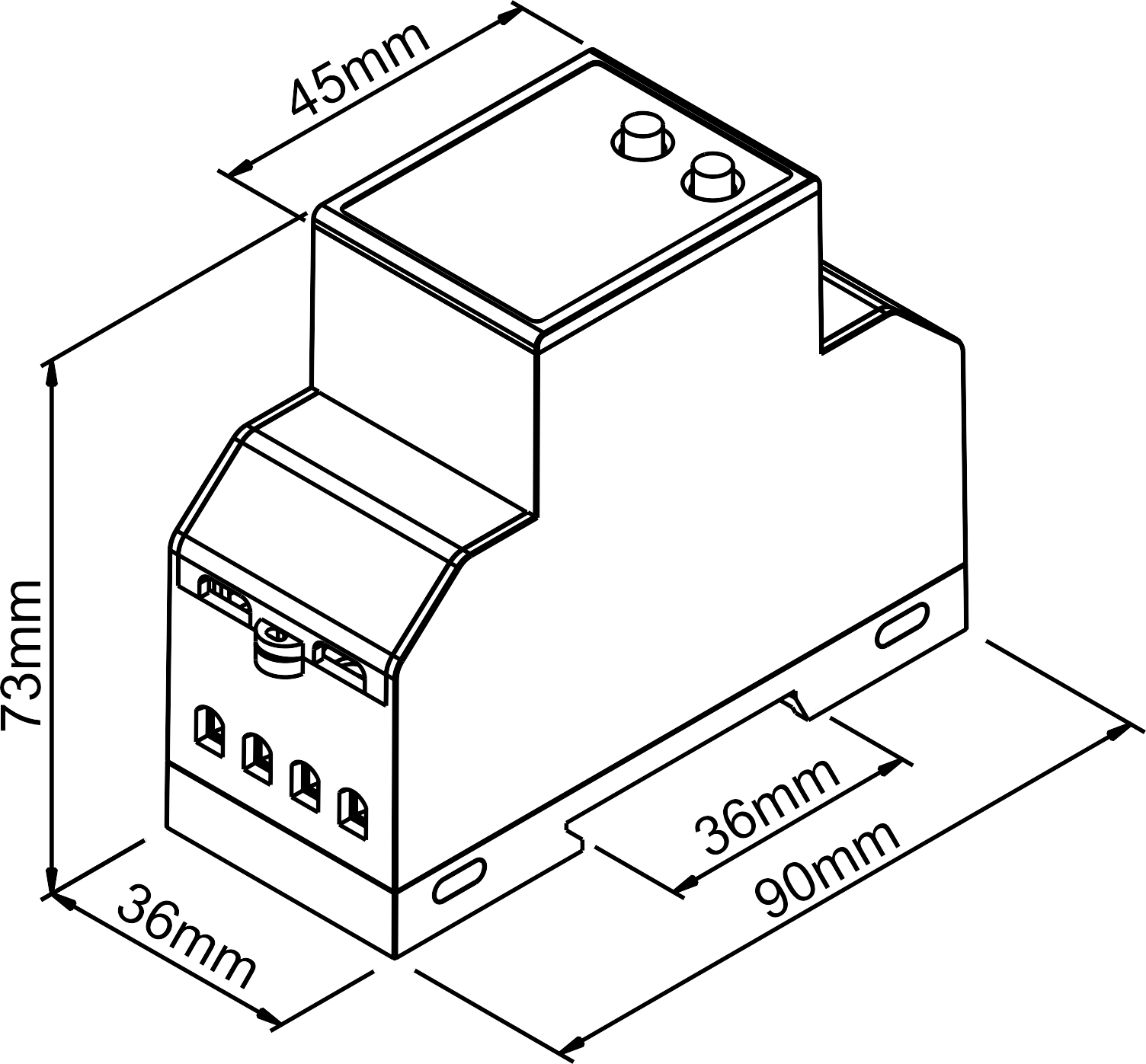

- meter dimensions
- det6
-
Voltage : 3*220V±20% Current : 1.5(6) A Accuracy class : 1.0S Frequency : 50HZ Impulse constant : 10000imp/ kWh Display : LCD 8+0、7+1、6+2、5+3=99999.999kWh ( According to display electricity integer digit changes automaticaly ) Starting current : 0.002Ib Power consumption : s8VAs0.4Wh Standard : IEC62052-11,IEC62053-21 Average humidity : 75% Maximal value : 95% Flashing red : Impulse indication , width =40ms Temperature range : -20~70℃ -
● LCD will scroll display ( through external button ): voltage 、 current 、 frequency 、 power factor 、 active and reactive power 、 active and reactive kWh .
● To set parameters through button , including code , CT , VT , meter address , CT . VT protection and
remotely output control .( to set through communication is optional ).
● CT and VT ratio are resettable :( CT :1~1000:1 VT :1~1000:1 Max . CT * VT :1000)
Factory Default : CT ratio 1:1, VT ratio 1:1.
● Built - in smal relay ( load voltage Max .400v、 load current Max .100mA、 impedance Max .30Ω).
· Impulse output isolation .
●RS485 communication protocol : Modbus RTU .
● Backlight indication :
When the button is locked via communication , the backlit color wil become purple ;
When backlit color is blue , it indicates built - in small relay disconnects ; When backlit color is red ,it indicates built - in small relay connects .
● it supports setup of check sum through PC software :8N118E1 -
