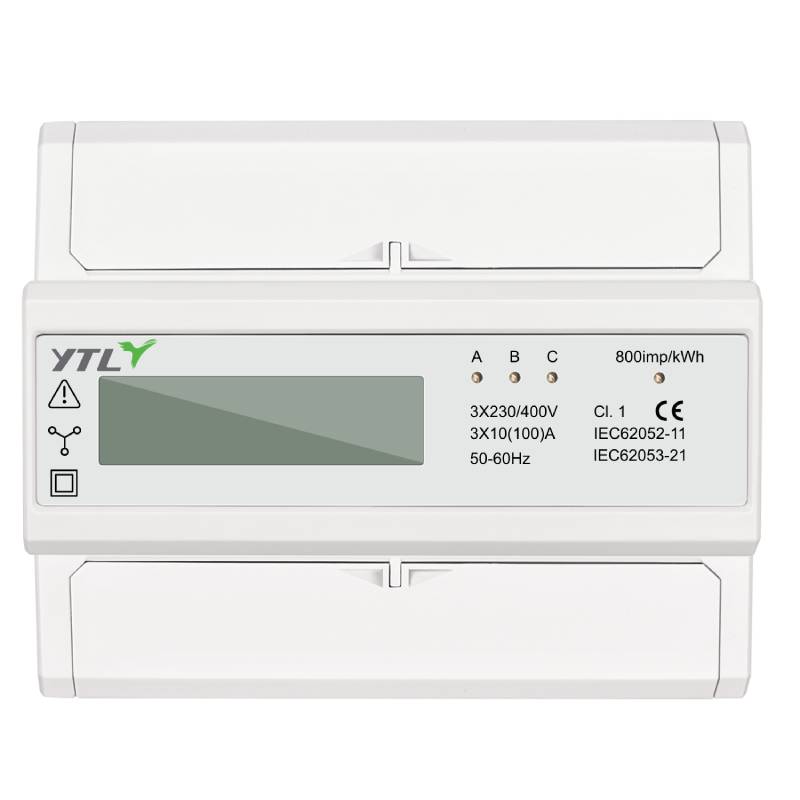

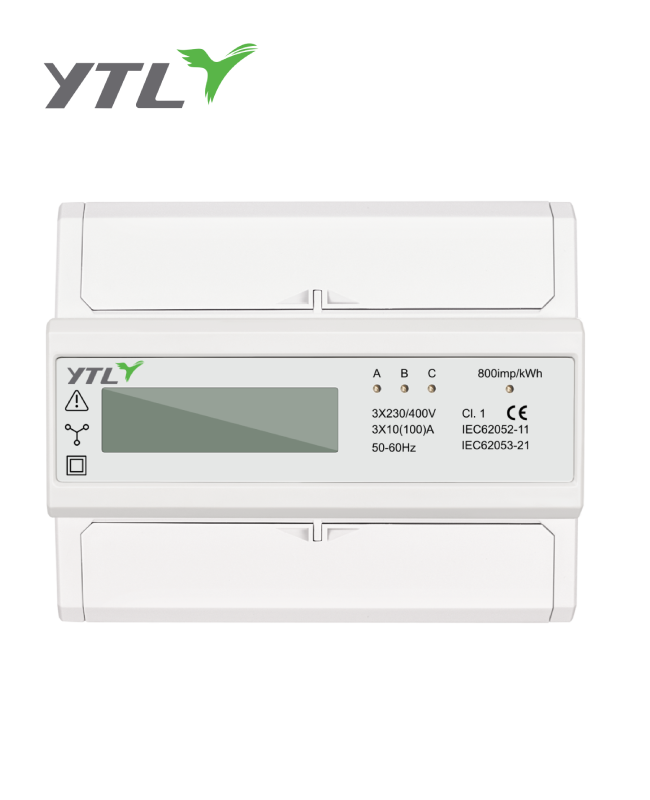

This is din rail three phase muli-funcational energy meter. It is popular in West European as its standard installation with DIN EN 50022,which is the ideal solution for residential and commercial installations.
With RS485 communication is used for data acquisition, and pulse output can be used for verification of measurement accuracy error and acquisition of pulse times.
| Voltage | 3*230/400V |
| Current | 10(100)A |
| Accuracy class | Class B / Active 1.0 |
| Standard | IEC62052-11, IEC62053-21 |
| Frequency | 50-60Hz |
| Impulse constant | 800imp/kWh |
| Display | LCD 6+1 |
| Power consumption | ≤8VA ≤0.4Wh |
| Starting current | 0.004Ib |
| Temperature range | -20～65℃ |
| Flashing red | Impulse indication, width=90ms |
| Average humidity value of year | 75% |
| Maximal value | 95% |

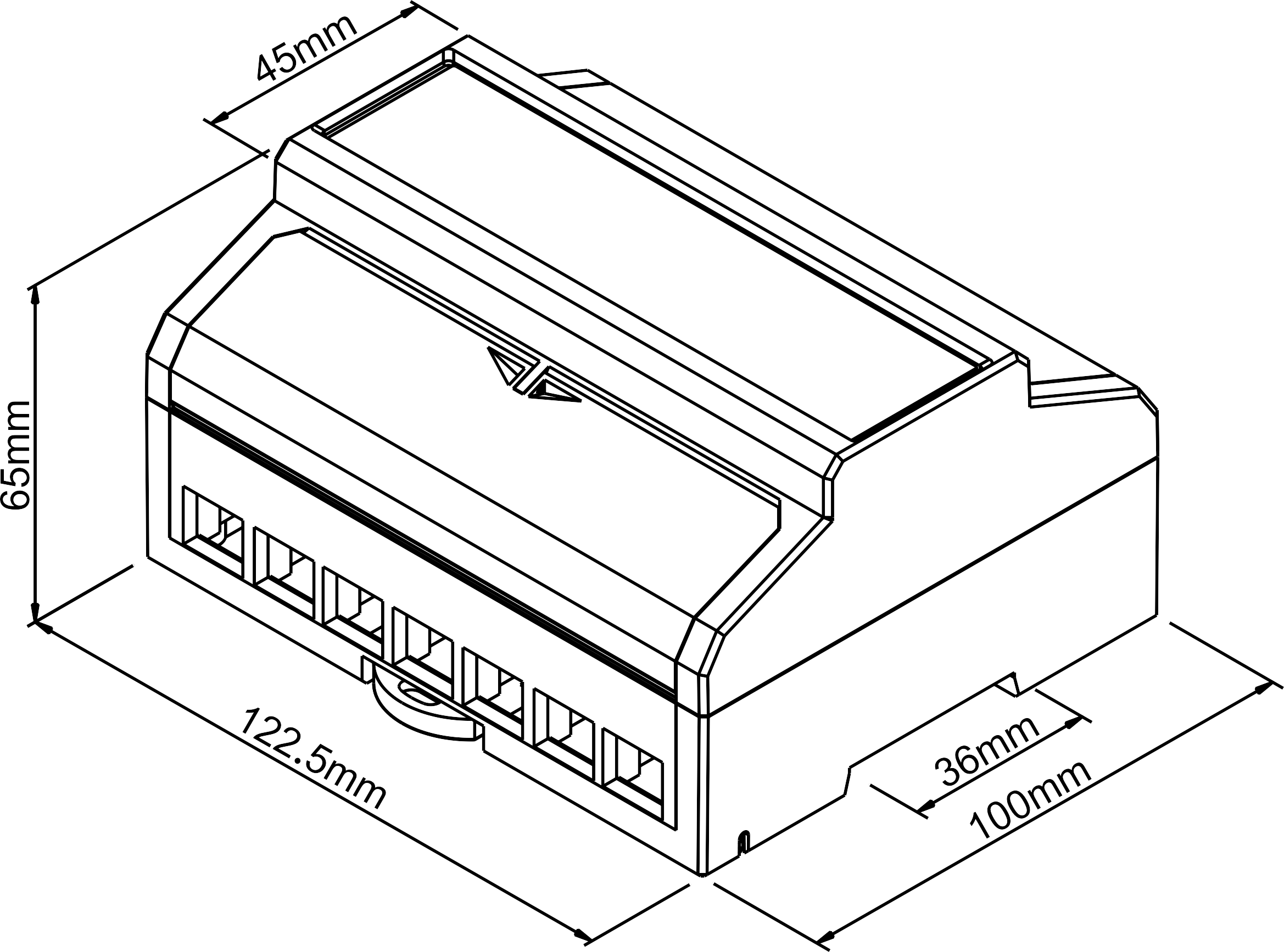

● DIN RAIL standard installation size.
● RS485 communication, Protocol: IEC1107
● Degree of Protection: IP51 (indoor meter).
