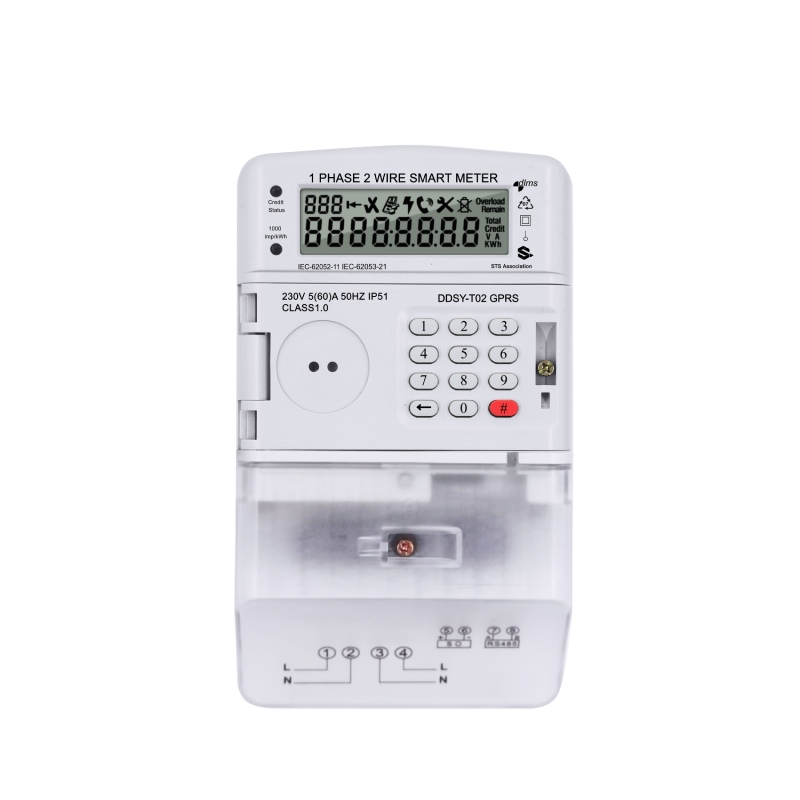

This is a single phase two wire meter wich has anti-tamper functions,such as bypass detection, open cover detection, influence of external magnetic field and so on. LCD display different parameters like current, voltage, instantaneous power and kWh.
This Meter support 10 tariffs,4G communication, with fall back capability to 2G and 3G.
| Voltage | 230V |
| Current | 5（60）A |
| frequency | 50Hz |
| Constant | 1000imp/kVarh |
| Accuracy class | Active power 1.0 Reactive power 2.0 |
| Wiring | Direct Inductance |
| Measurement type | AC |
| Power supply | single phase two wire |
| Power type | switching power supply |
| Installation method | suspension Mounting |
| Environmental temperature | -20~75℃ |
| Application Environment | IP51 |
| Sampling method | Shunt |
| Service life (reference temperature) | 10 years |
| communication | 4G |
| Payment mode | prepaid /postpaid |
| Standards need to comply | IEC 62053-21:2020 |
| IEC 62052-11:2020 | |
| IEC62052-31 2015 |
.jpg?imageView2/2/format/jp2)
.jpg?imageView2/2/format/jp2)
