This is a Prepaid Electricity Meterwith wireless communication Wi-Fine 433MHz and Bluebooth . communication. Prepaid Electricity Meterhas various of events alerting functions including kWh remote reading, electricity using remote management and tampering, provides customers a convenient remote reading method. This meter is favored by customers with the features of high accuracy, wide measuring range, various anti-tampering functions and competitive cost performance.
YTL Prepaid Electricity Meter 80A wall Mounted type Suppliers
K019-10-Wi-fine
Contact Us
SPEC Download
YTL Prepaid Electricity Meter 80A wall Mounted type
- Type
- Technical Parameters
- Meter Dimensions

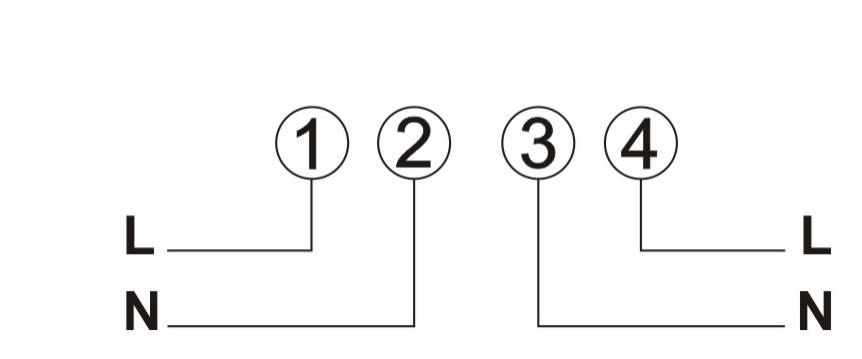

- Diagram for installation
- det6
-
Type Communication CIU Communication Function
K019-01-IR IR / Build in Rely,Shunt sampling,
1 Tariff,Event alarmK019-02-PLC PLC / Remote upgrades K019-03-PLC PLC / Absolute measurement K019-04-PLC PLC / Different measurements way,
Absolute measurementK019-05-PLC PLC / Build in Rely,Absolute measurement,
self diagnosis,Open cover detectionK019-06-RS485 RS485/Twisted Pair wire / Active , Reactive measurement K019-07-RS485 RS485/Twisted Pair wire / Build in Rely,Absolute measurement,
self diagnosis,Event alarmK019-08-Wi-Fine Wi-Fine / Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
4 TariffK019-09-Wi-Fine Wi-Fine Wi-Fine Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profileK019-10-Wi-Fine Wi-Fine Wi-Fine/ Bluetooth Different measurements way,Neutral
measurement,Absolute measurement,
Event record,Anti-tamper,Build in Rely,
8 Tariff,Load profile -
Rated voltage
230V
Rated current
5(80) A
Constant
1000imp/kWh
Display
LCD 6+2
Relative humidity
≤85%
Rated frequency
50Hz
Accuracy degree
1.0
Power consumption
0.96W/2.524VA
Standard
Functional test
IEC62052-11:2003
Impulse output
IEC62053-21:2003
Protection degree
IP51
Communication protocol
DLMS
-
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
