.jpg)
it adopts high accuracy shunt, stable sampling, small error which ensure high accuracy of energy meter measurement. Measure voltage, current, power factor, active power, reactive power, apparent power, electricity, etc. single phase din rail mounted electronic energy meter, compact size, easy installation.

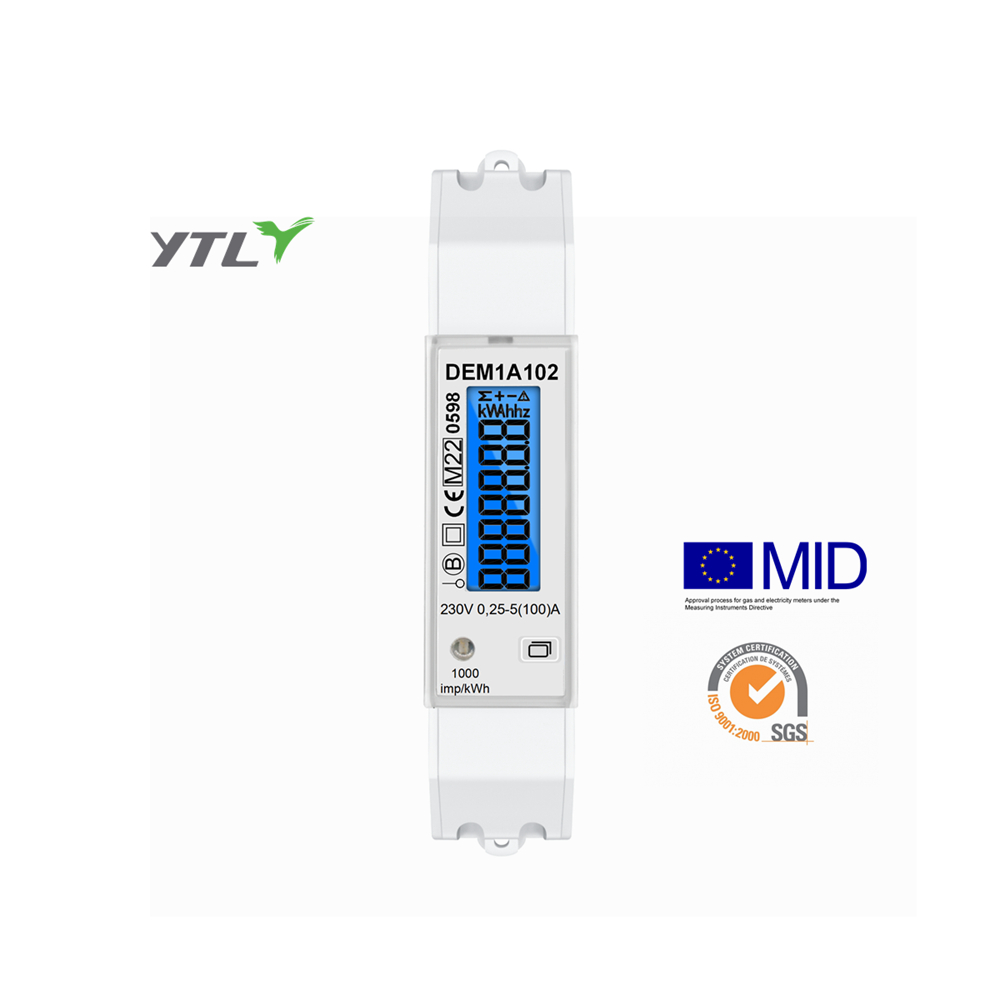

YTL DEM1A DIN Rail Single Phase Power Meter Products Suppliers
- Measurements
- Technical Parameters
- Meter Dimensions
- Diagram for installation
-
Type DEM1A001 DEM1A002 DEM1A102 DEM1A140 Software Version V101 V101 V101 V101 CRC 5A8E B6C9 6B8D 6B8D Impulse Constant 1000imp/kWh 1000imp/kWh 1000imp/kWh 1000imp/kWh Communication N/A RS485 Modbus/DLT645 RS485 Modbus/DLT645 Bluetooth Baud rate N/A 9600\19200\38400\115200 9600\19200\38400\115200 / SO output SO1 is SO output for kWh(default) or Active/reactive forward kWh optional with variable constant 100-2500imp/kWh N/A N/A N/A Divisible by 10000 SO2 is SO output for kvarh (default) or Active/reactive reverse kWh optional with variable constant 100-2500imp/kvarh Divisible by 10000 Pulse width SO:100-1000:100ms N/A N/A N/A SO:1250-2500:30ms Backlight Blue Blue Blue Blue Li-Battery N/A N/A YES YES Multi-tariff N/A N/A YES YES Measurement Mode 1-total =forward 1-total =forward 1-total =forward 1-total =forward 2-Total=reverse 2-Total=reverse 2-Total=reverse 2-Total=reverse 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 3-Total =forward +reverse (default) 4-Total=Forward-Reverse 4-Total=Forward-Reverse 4-Total=Forward-Reverse 4-Total=Forward-Reverse Button Touch button Touch button Touch button Touch button Button function Page turning, setting, information display Page turning, setting, information display Page turning, setting, information display Page turning, setting, information display Default setting 1000imp/kWh,100ms 9600/NONE /8/1 9600/NONE /8/1 / 1000imp/kvarh,100ms Measurement Mode setting Button RS485 or Button RS485 or Button Bluetooth -
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,0,25-5(45)A,
0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A
Impulse Constant:
1000 imp/kWh
Frequency:
50Hz/60Hz
Accuracy Class:
B
LCD Display:
LCD 5+2 = 99999.99kWh
Working Temperature:
-25～70℃
Storage Temperature:
-30~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
Case Protection
IP51 indoor
-
-
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.png?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
