The energy meter has IR communication for reading local data and setting parameters; RS485 bus communication can be connected to the concentrator for data collection and monitoring. The communication protocol is standard Modbus-RTU and has strong applicability
YTL Din Rail Three Phase Energy Meter With RS485 Modbus RTU Suppliers
Home / Products / electronic energy meter / Three phase electronic energy meter / YTL Din Rail Three Phase Energy Meter With RS485 Modbus RTU
- Technical Parameters
- Features
- Description
- det6
-
Standard:
EN50470-1/3
Rated Voltage:
3*230(400)V
Rated Current:
0,5-10(30)A,0,5-10(32)A,0,5-10(40)A,0,5-10(45)A,
0,5-10(50)A,0,5-10(60)A, 0,5-10(80)A,0,5-10(100)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Class B / Active 1.0 Reactive 2.0
LCD Display:
LCD 6+2 = 999999.99kWh
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<12VA <1W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
Case Protection
IP51 indoor
-

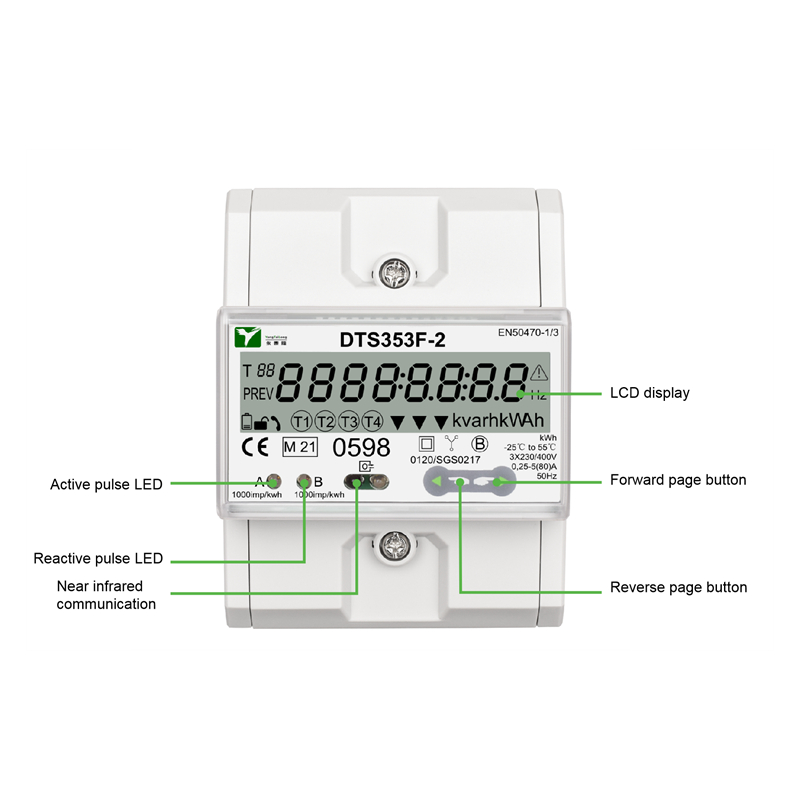

Measurement function It has three phase active/reactive energy and positive and negative measurement, four tariff(optional). It can be set 3 measurement modes according to the synthesis code. Maximum demand calculation. Communication It supports IR(near infrared) and RS485 communication(optional). IR complies with EN62056(IEC1107) protocol, and RS485 communication use the MODBUS protocol. DTS353F-1: IR communication only DTS353F-2: IR communication, RS485 MODBUS DTS353F-3: IR communication, RS485 MODBUS, Multi-tariff function Display It can display the total energy, tariff energy, three phase voltage, three phase current, total/three phase power, total/three phase apparent power, total/three phase power factor, frequency, pulse output, communication address, and so on(details please see the display instruction). Button The meter has two buttons, it can be displayed all the contents by pressing the buttons. Meanwhile, by pressing the buttons, the meter can be set LCD scroll display time. It can be set the automatic display contents through IR. Pulse output Set 1000/100/10/1, total four pulse output modes by communication. -
-
