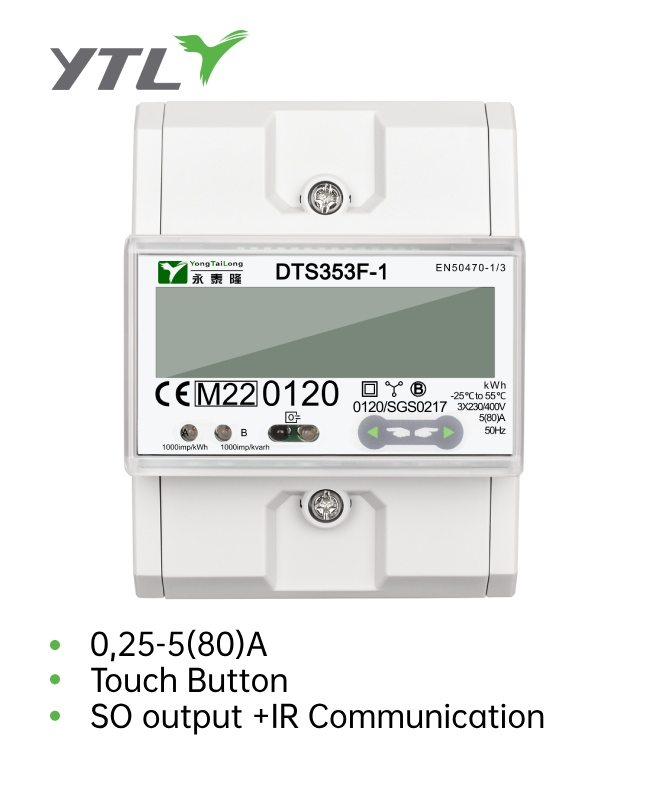

YTL Manufacturer DTS353F 5(80)A DIN Rail 3 Phase 4 Module Two Channel MID Certificate Electricity Meter

DTS353F-1

YTL Manufacturer DTS353F 5(80)A DIN Rail 3 Phase 4 Module Two Channel MID Certificate Electricity Meter

The DTS353F Series Digital Power Meter works directly connected to a maximum load 80A AC circuit
This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality.
This certification allows this model to be used for any sub-billing application

Technical Parameters
Features
Description
det6

Voltage: 3*230/400V

Current: 0,25-5(30)A, 0,25-5(32)A, 0,25-5(40)A, 0,25-5(45)A, 0,25-5(50)A, 0,25-5(80)A

Accuracy class: Class B / Active 1.0 Reactive 2.0

Standard: EN50470-1/3

Frequency: 50Hz

Impulse constant:1000imp/kWh, 1000imp/kVarh

Display: LCD 6+2

Starting current: 0.004Ib

Temperature range: -20～70℃ (Non Condensing)

Average humidity value of year: 85%
Measurement function

● It has three phase active/reactive energy and positive and negative measurement, four tariff(optional).

● It can be set 3 measurement modes according to the synthesis code.

● Maximum demand calculation.

● Holiday Tariff and Weekend Tariff Setting(optional)

Communication

It supports IR(near infrared) and RS485 communication(optional). IR complies with EN62056(IEC1107) protocol, and RS485 communication use the MODBUS protocol.

DTS353F-1: IR communication only

DTS353F-2: IR communication, RS485 MODBUS

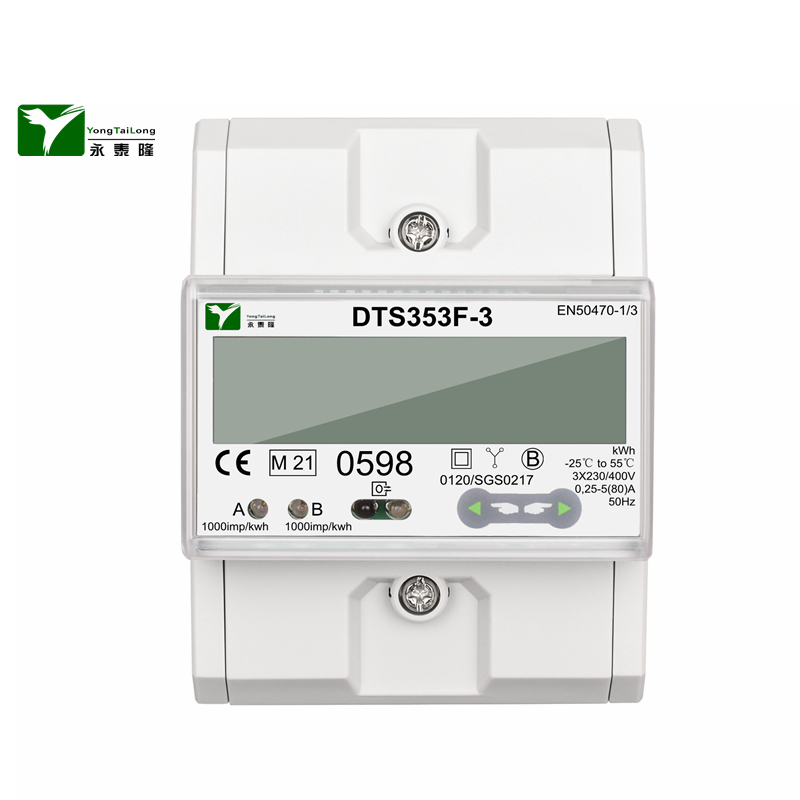

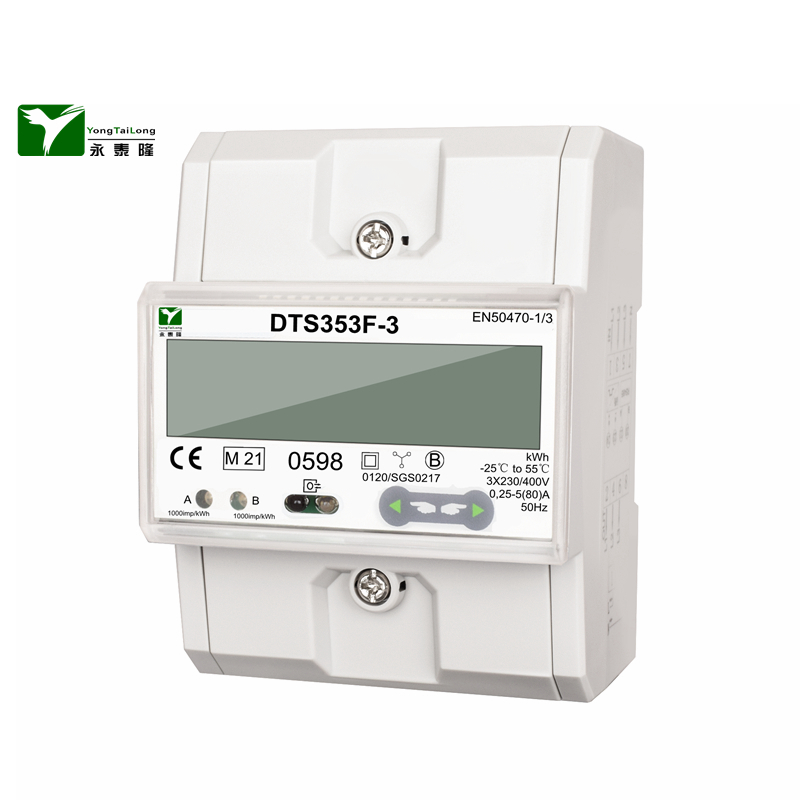

DTS353F-3: IR communication, RS485 MODBUS, Multi-tariff function

Display

●It can display the total energy, tariff energy, three phase voltage, three phase current, total/three phase power, total/three phase apparent power, total/three phase power factor, frequency, pulse output, communication address, and so on(details please see the display instruction).

Button

●The meter has two buttons, it can be displayed all the contents by pressing the buttons. Meanwhile, by pressing the buttons, the meter can be set LCD scroll display time.

●It can be set the automatic display contents through IR.

Pulse output

● Set 1000/100/10/1, total four pulse output modes by communication.
