A. Pain points analysis:
2.Hard to call for electricity unpaid fees, electricity bills aren’t able to be paid remotely.
4.Lack of remote monitoring methods and not capable of recognizing abnormal users.
B. System structure introduction:
‘Zhidian Smart Prepayment meter reading and billing solution’ - is a set of Internet + New-type prepayment meter-reading energy sales management system, which is consist of Management center computer (master station) , intelligent prepaid device and three-level smart phone.
It equips with the function below:
2.User management
3.Device management
4.Maintenance management and etc.
With functions that are mentioned upon, the system realizes remotely TOKEN sent down and remote monitoring&maintenance, solving a series of difficulties in prepayment meter reading and fee charging. These functions increase data accuracy, decrease the costs of labour and improve management efficiency.

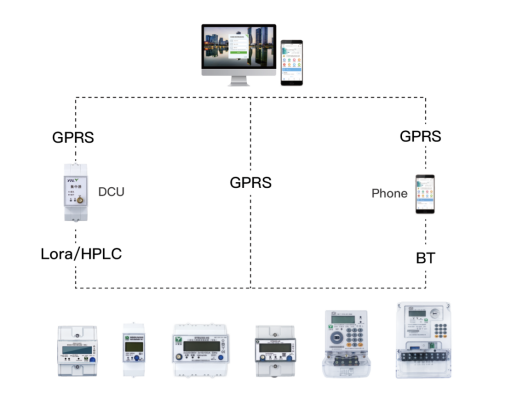

‘Zhidian Smart Prepayment meter reading and billing solution’ has integrated multiple communication modes and realized the function of remote prepaid meter reading. The GPRS device directly connects to server reading prepaid meters. After LoRa devices upstream to concentrator, the concentrator realize meter reading by connection with server. When network anomaly happens, it supports prepaid meter’s built-in blue-tooth communication, realizing data upload by connecting to phones, meter reader and other device. Devices with a keyboard can also be recharged by manually entering the Token directly after recharging.
C. Functions introduction
‘Zhidian Smart Prepayment meter reading and billing solution’ is able to realize the functions below:
1.Management for user documents, supporting multiple people online, customized operation and setting to accounts.2.Daily regulated time meter data reading, generating the power consumption statistics sheets. According to the data from sheets automatically calculating each user’s fee and charge the fee from each user’s balance.

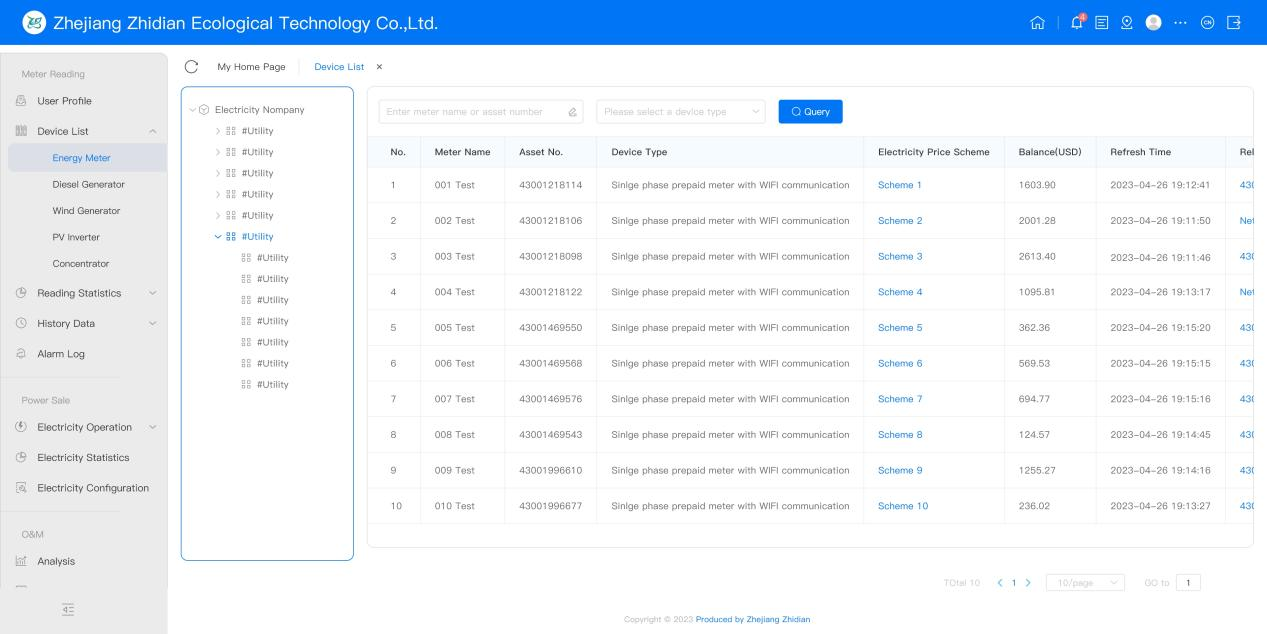

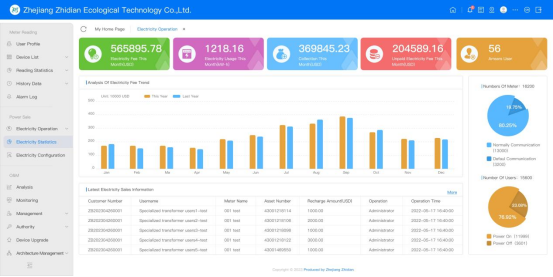

3.On platform you can check the power consumption tendency chart, predicting the trend and reasonable scheduling. Also monthly power consumption, received bills, unpaid bills’ fee and other statistics data can be checked and generating the sheets which are convenient for financial reconciliation.
4.Real-time monitoring to device running status. Alarm when devices exception, be offline and user’s balance runs out, which will be informed by messages or APP reminders, avoiding user’s normal usage of device.

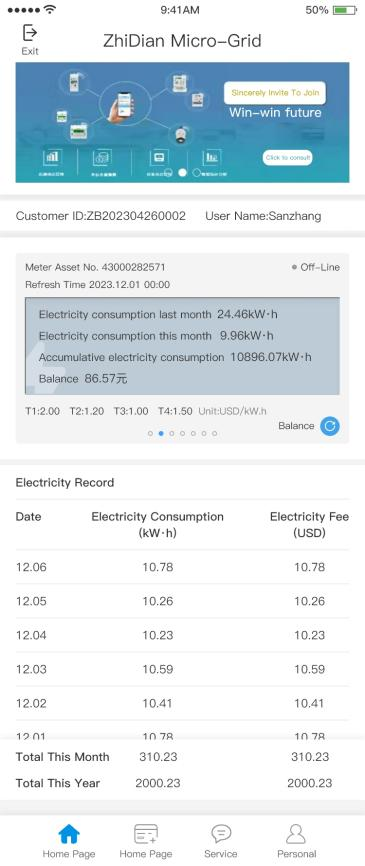

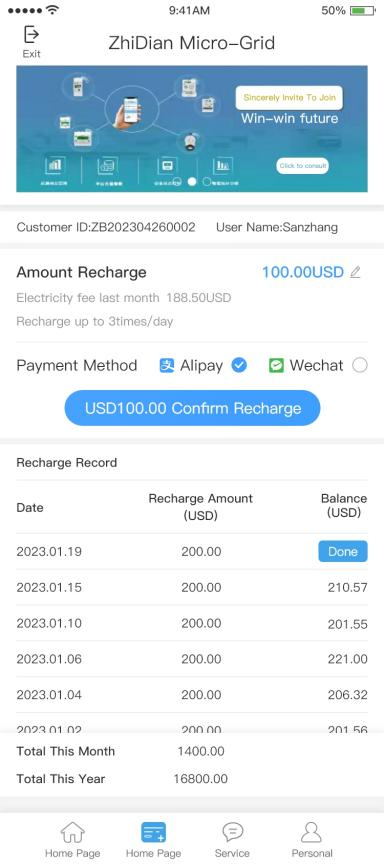

5.Historical power consumption records can be checked on mobile client. If third-party online payment is supported, you can recharge online.
 |
 |

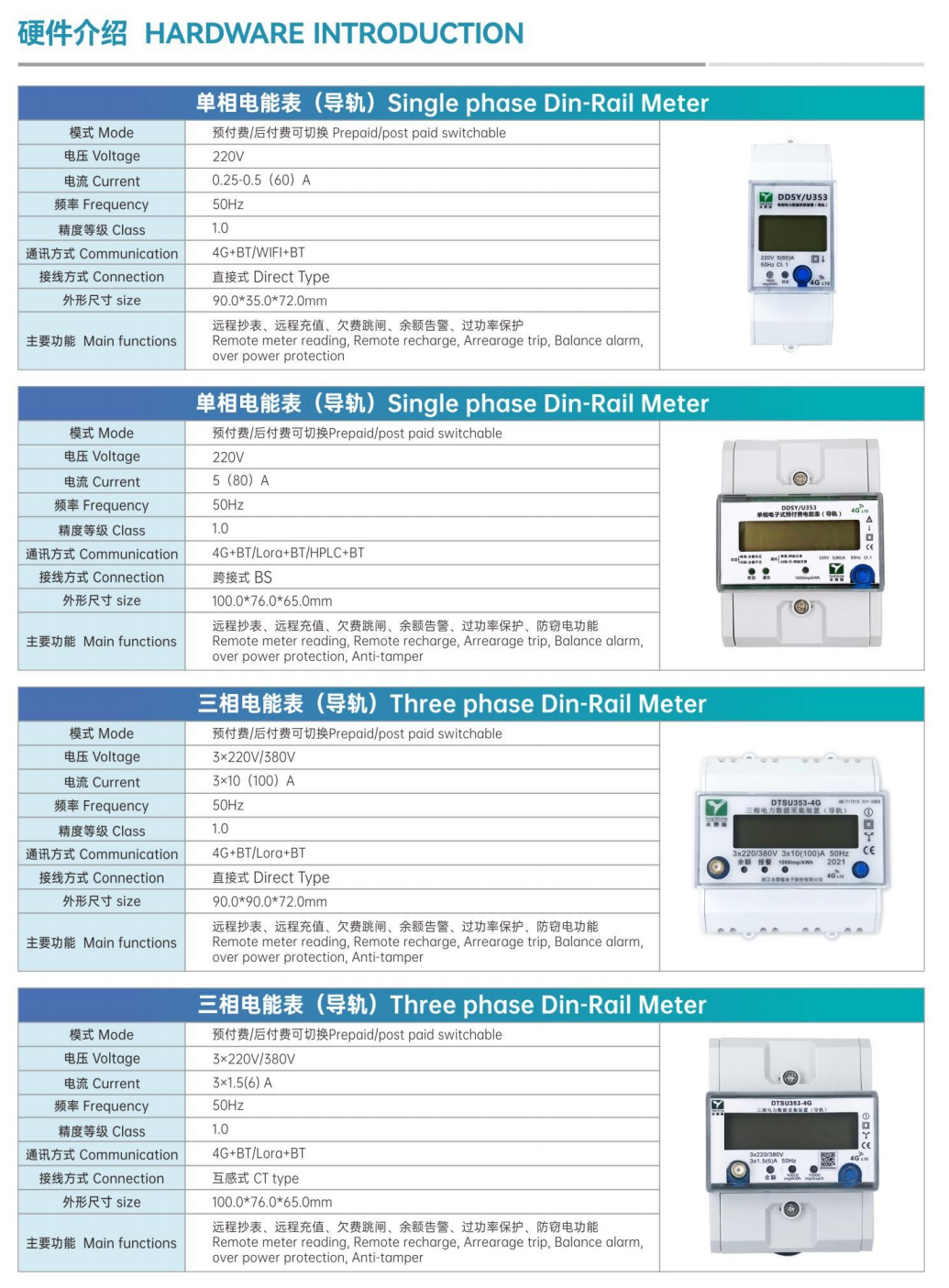

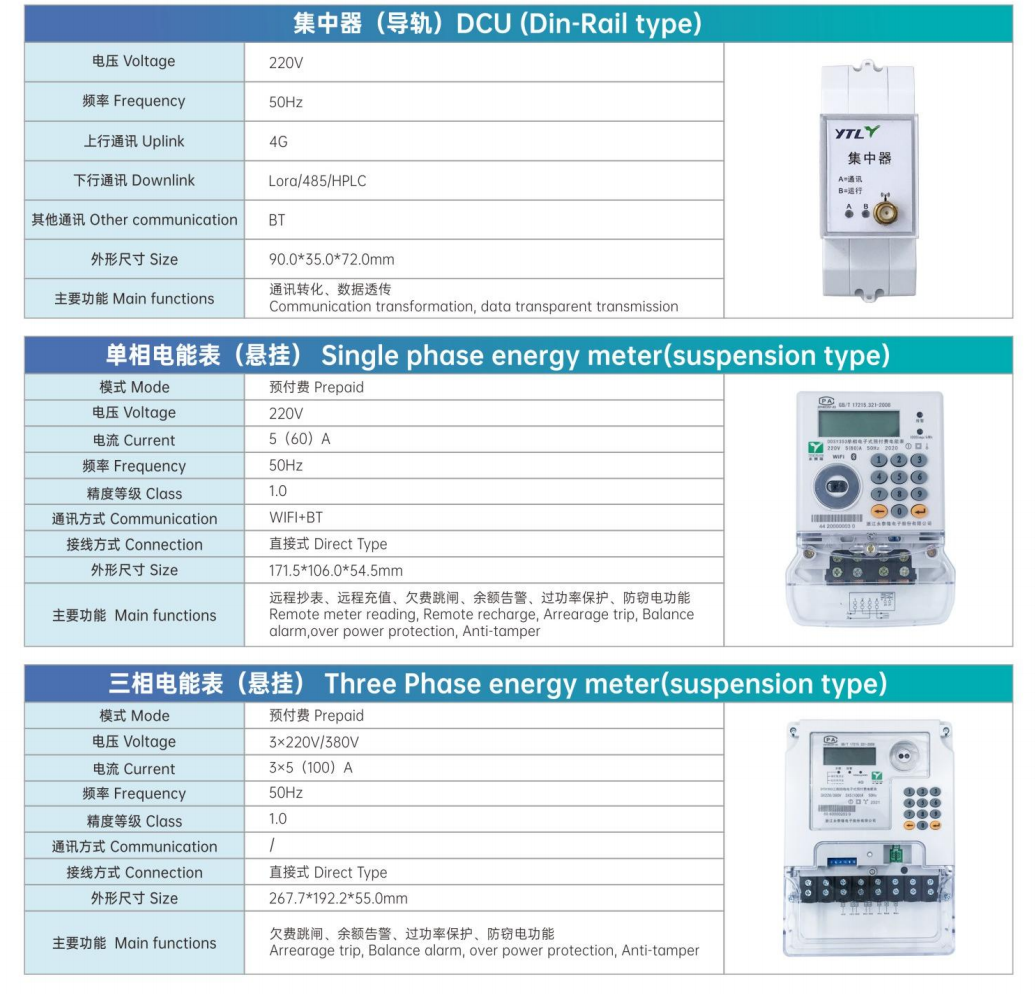

D. Devices Introduction
 |
 |
E. Applied Scenarios
 |
 |
|
综合商场Shopping mall |
学校宿舍Dormitory |
 |
 |
|
写字楼Office buildings |
工业园区Industry Zone |
 |
 |
|
农贸市场Agricultural markets |
住宅小区Residential district |
