A panel power meter, also known as a panel power meter or power panel, is a device used to measure and display the electrical energy consumed in a building or facility. It is installed in an electrical panel or junction box, and it is often referred to as the "Heart" Of the electrical system.
Electricity panel power meter is essential components in residential, commercial, and industrial buildings. They accurately measure the electricity consumed by different appliances, light fixtures, and other electrical devices. The panel power meter displays the current power usage in real time as well as the total energy consumed during a specified period.
Panel power meter come in different types and styles, each suited for a specific application. Some of the common types of panel power meters include analog and digital meters, single-phase and three-phase meters, and smart or advanced meters.
Analog panel power meter has been in use for decades and are still used today. They use a moving needle or dial to display electricity consumption. The needle moves in response to the electrical current flowing through the meter, and the dial indicates power or energy usage in kilowatt-hours (kwh). Although they are easy to read, analog meters are not as accurate as digital meters.

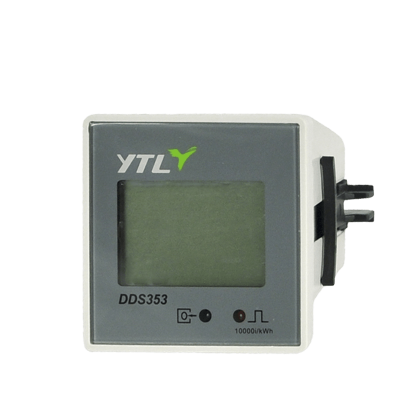

On the other hand, digital panel power meters use digital displays to show the power consumption. The digital displays can either be led or lcd, and they provide accurate readings of the current and voltage. Some of the newer digital meters also provide information on power quality, including power factor, voltage levels, and harmonics.
Single-phase panel power meter is used to measure the electricity consumption of homes and small businesses. They have two connection points and can measure both voltage and current within the same circuit. On the other hand, three-phase meters are used in large commercial and industrial buildings. They have three connection points and can measure the power consumption of a three-phase electrical system.
Smart or advanced panel power meter is the sophisticated type of panel power meter. They communicate with the utility company and provide real-time information on energy consumption, which makes it easier for the utility company to monitor and manage the power grid. Smart meters also provide consumers with the ability to track their energy consumption and adjust their usage habits, which can help them save money and reduce their environmental impact.
In addition to measuring energy consumption, panel power meters also provide protection against electrical faults such as overloads, short circuits, and ground faults. They have built-in protective devices that can prevent damage to electrical equipment and ensure the safety of the occupants in the building.
In conclusion, a panel power meter is an essential component in any electrical system. It accurately measures and displays the electricity consumption in a building or facility, providing important information to both the utility company and the consumer. With the increasing demand for energy efficiency, advances in panel power meter technology have led to the development of smart and advanced meters that provide real-time information and help consumers reduce their energy consumption and costs.
