DDS353AF Din Rail Electricity Meter Single Phase Company with LCD Display Suppliers

Home / Products / Applications / Electricity Distribution / DDS353AF Din Rail Electricity Meter Single Phase Company with LCD Display

DDS353AF

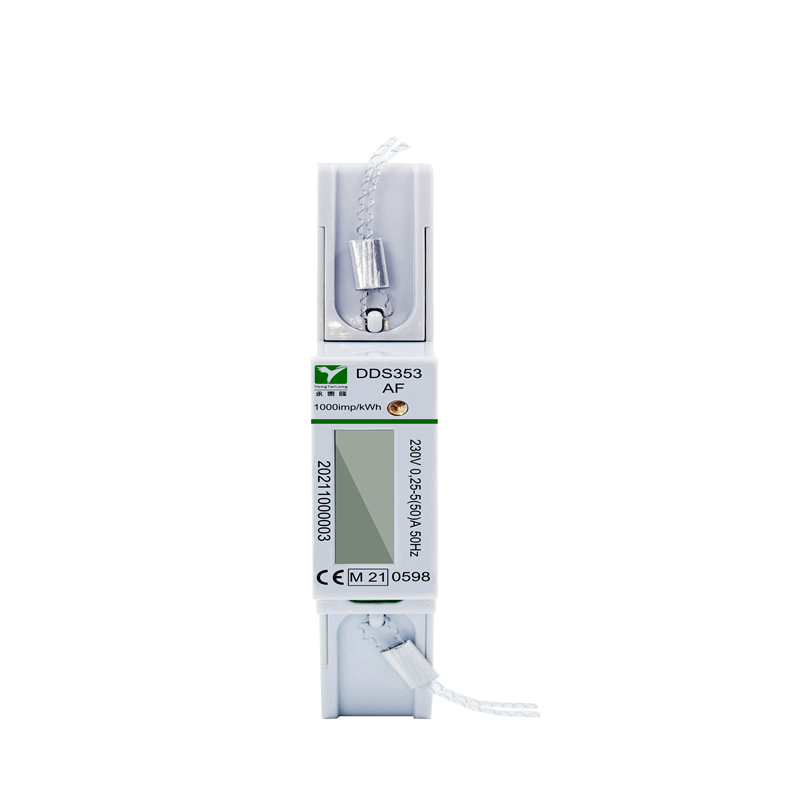

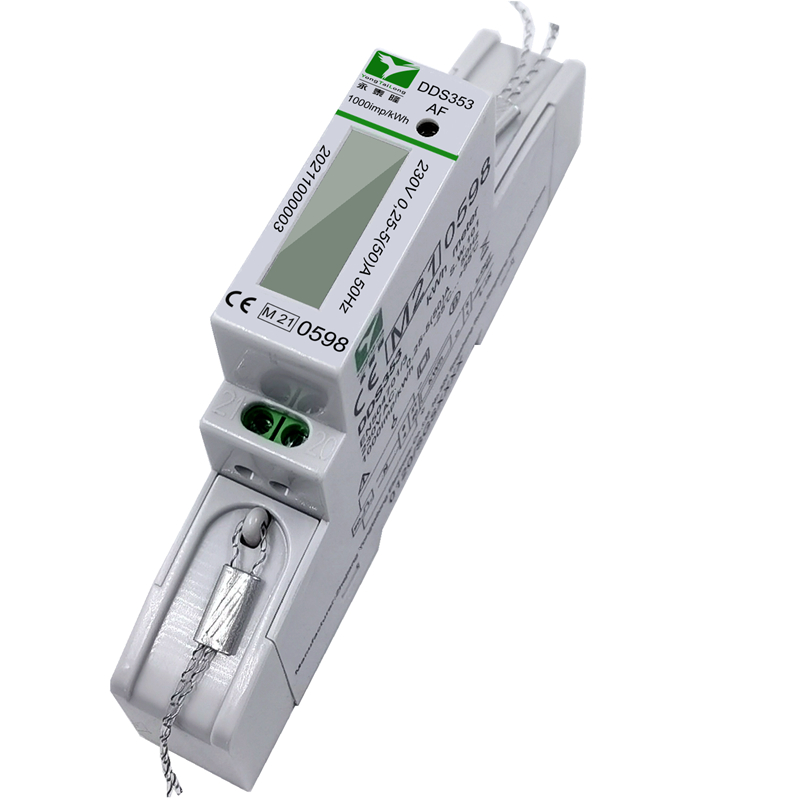

DDS353AF Din Rail Electricity Meter Single Phase Company with LCD Display

The DDS353 Series Digital Power Meter works directly connected to a maximum load 50A AC circuit.
This meter has been MID B&D Certified by SGS UK, proving both it’s accuracy and quality.
This certification allows this model to be used for any sub-billing applications.
YTL DDS353 230V DIN rail Singlephase Multi-tariffs Solar Invertor meter

Technical Parameters
Measurements
Meter Dimensions
Diagram for installation
det6

https://www.ytl-e.com/contact/

Applications

View all applications

View all products

D111001

Household Wholesale Manufacture Simple Single Phase Electric Meter Electricity Meter
DDS353L-1

MID Certified Single Phase Bifilar Smart Meter
D119009-03

Popular In Europe Single Phase Four Moudule Energy Meter
DTS353F

Micro Grid Good Reliability Three Phase Power Meter
D119033

Slow EV Charger Small Size Single Phase Fcatory Watt Hour Meter Biphasic RF Meter
D124001-08

Scattered Residents Easy To Manage 1P Prepaid Meter Electricity Meter
Digital Device Measure Electronic Panel Electricity Meter
J119008

Control Intelligent Street Light Real Time Concentrator with RS485 Communication
PCB (Printed Circuit Board)
D123073-Wi-Fine

YTL STS Prepaid Wi-Fine Energy Meter Single Phase Wall Mounted ODM
STS Prepaid Single Phase Suspension Wi-Fine Energy Meter
DDS353F+R

DDS353F+R Electricity Single Phase China kWh Meter Manufacturer Din Rail

Welcome To A National High-tech Enterprise

Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China DDS353AF Din Rail Electricity Meter Single Phase Company with LCD Display Suppliers and DDS353AF Din Rail Electricity Meter Single Phase Company with LCD Display Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.

2000

Established In
500+

Employees
60+

Export Country
500+

Design Right Patent

YTL Honor

MID
KEMA
DLMS
IEC
KEMA
SGS

YTL News

View All News

Why is accurate metering a key advantage of DC energy meters in charging stations?

2024-11-22

In the process of charging electric vehicles, DC fast charging technology is the mainstream. The charging energy is directly measured by the DC energy meter, an...
What impact will the external environment have on the display of the DC meter? How to deal with it effectively?

2024-11-19

1. Is the power supply normal?Cause of the problem:The core circuit of the DC meter requires stable power supply support. If the power supply voltage fluctuates...
There would be an opportunity in the electricity meter industry

2024-11-12

In the watt-hour meter industry, there are many opportunities at present and in the future. These opportunities mainly come from the background of technological...
Application of smart meters in car charging and energy-saving strategies

2024-11-11

1. Applications of Smart Meters in EV ChargingAccurate Monitoring and Data CollectionSmart meters precisely track real-time data on energy consumption, voltage,...
Electric meter water meter gas meter why to carry on three meters to gather to read

2024-11-07

The decision to collect electricity, water and gas meters is based on a number of considerations, which aim to improve the efficiency of utility management, red...
In which countries Electric Prepayment Meter is widely used

2024-11-05

Electronic pre-payment meter, as a kind of electric meter combining pre-payment and intelligent metering technology, has been widely used in the world because o...

Content	Parameters
Standard:	EN50470-1/3
Rated Voltage:	230V
Rated Current:	0,25-5(30)A,0,25-5(32)A,0,25-5(40)A, 0,25-5(45)A,0,25-5(50)A
Impulse Constant:	1000 imp/kWh
Frequency:	50Hz/60Hz
Accuracy Class:	B
LCD Display:	LCD 5+2 = 99999.99kWh
Working Temperature:	-25～55℃
Storage Temperature:	-30~70℃
Power Consumption:	<10VA <1W
Average Humidity:	≤75% (Non Condensing)
Maximum Humidity:	≤95%
Start Current:	0.004Ib
LED flash:	Impulse indication, pulse width = 80 ms

Meter Type	Measurement
DDS353	kWh Total =Forward energy+Reverse energy
DDS353AF	KWh Total=Forward energy only
DDS353F+R	1 = kWh total ( forward + reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export])
DDS353F-R	1 = kWh total (calculated by forward - reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353AI	1 = kWh total ( forward + reverse) 2 = V (Voltage) 3 = A (Ampere - current load) 4 = W (Watt - current active power) 5 = Hz (Frequency) 6 = PF (power factor)
DDS353FI	1=Forward energy only 2= V (Voltage) 3= A (Ampere - current load) 4= W (Watt - current active power) 5= Hz (Frequency) 6 = PF (power factor)
DDS353F+R+I	1 = kWh total ( forward +reverse) 2 = kWh (forward energy [import]) 3 = kWh (reverse energy [export]) 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
DDS353F-R-I	1 = Total Kwh（Forward - Reverse) 2 = Forwarder energy display 3 = reverse energy display 4 = V (Voltage) 5 = A (Ampere - current load) 6 = W (Watt - current active power) 7 = Hz (Frequency) 8 = PF (power factor)
