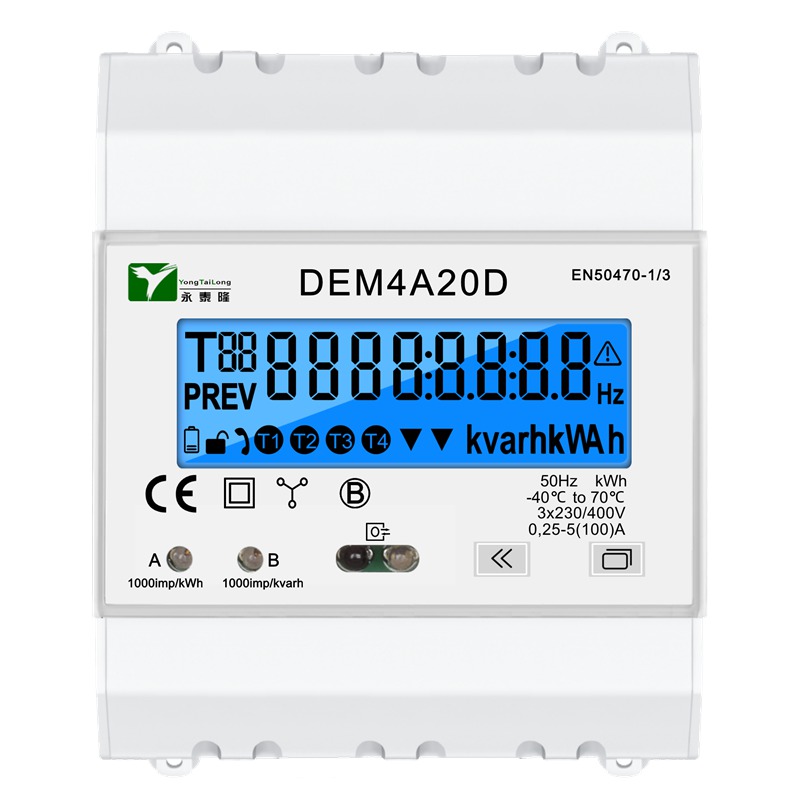

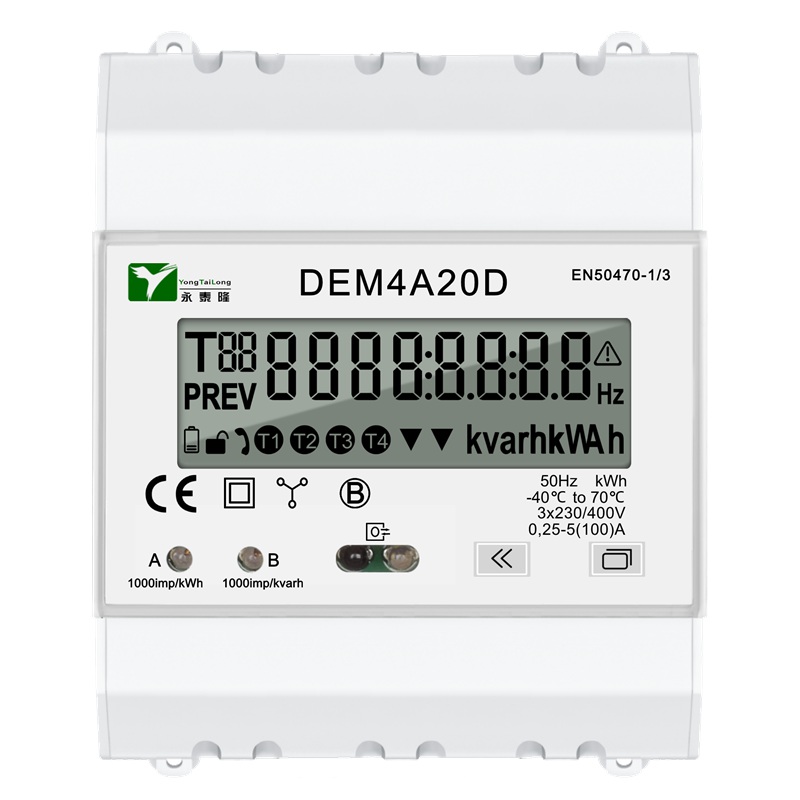

Three-phase four-wire Din rail smart meter, the cover is flame retardant PC material, strong drop impact resistance, anti-aging to ensure safe use. It adopts a large LCD display, uses touch buttons for page turning queries, and is designed with a backlight for easy reading at night.
YTL Supplier DEM4A 3*230/400V DIN Rail 3P 4 Module Touch button Mbus Electronic Energy Meter Suppliers
Home / Products / Applications / MID EV charging / YTL Supplier DEM4A 3*230/400V DIN Rail 3P 4 Module Touch button Mbus Electronic Energy Meter
DEM4A20D
Contact Us
SPEC Download
YTL Supplier DEM4A 3*230/400V DIN Rail 3P 4 Module Touch button Mbus Electronic Energy Meter
- Features
- Technical Parameters
- Description
- det6
-
Type IR M-Bus SO output Signal input Different measurements Tariff DEM4A00D Yes Yes 2 No Yes No DEM4A10D Yes Yes 2 No Yes Yes DEM4A20D Yes Yes 1 1 Yes No DEM4A30D Yes Yes 1 1 Yes Yes -
Content
Parameters
Standard:
IEC 62052-11:2020
IEC 62053-21:2020
Rated Voltage:
3*230(400)V±20%
Rated Current:
5(80)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Active power 1.0
Reactive power 2.0
LCD Display:
LCD 6+2
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<1W / <10VA
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.4%Ib
Case Protection
IP51 indoor
-
DEM4A00D: IR + M-BUS +2 SO output (variable constant)with different measurements ,wiring from bottom to top
DEM4A10D: IR+ M-BUS+2 SO output (variable constant)+ Multi-tariff function,with different measurements
DEM4A20D: IR + M-BUS+1 SO output (variable constant)+1 Signal input port,with different measurements
DEM4A30D: IR+ M-BUS+1 SO output (variable constant)+1 Signal input port+ Multi-tariff function,with different measurements
-
