Comply IEC62053-21、IEC62052-11、GB-T 17215.211、、GB-T 17215.321 standard, pass EU MID/ CPA certificated. it Adopts high accuracy shunt, stable sampling, small error which ensure high accuracy of energy meter measurement.accuracy is class 1,but the our internal control standard is class 0.5.

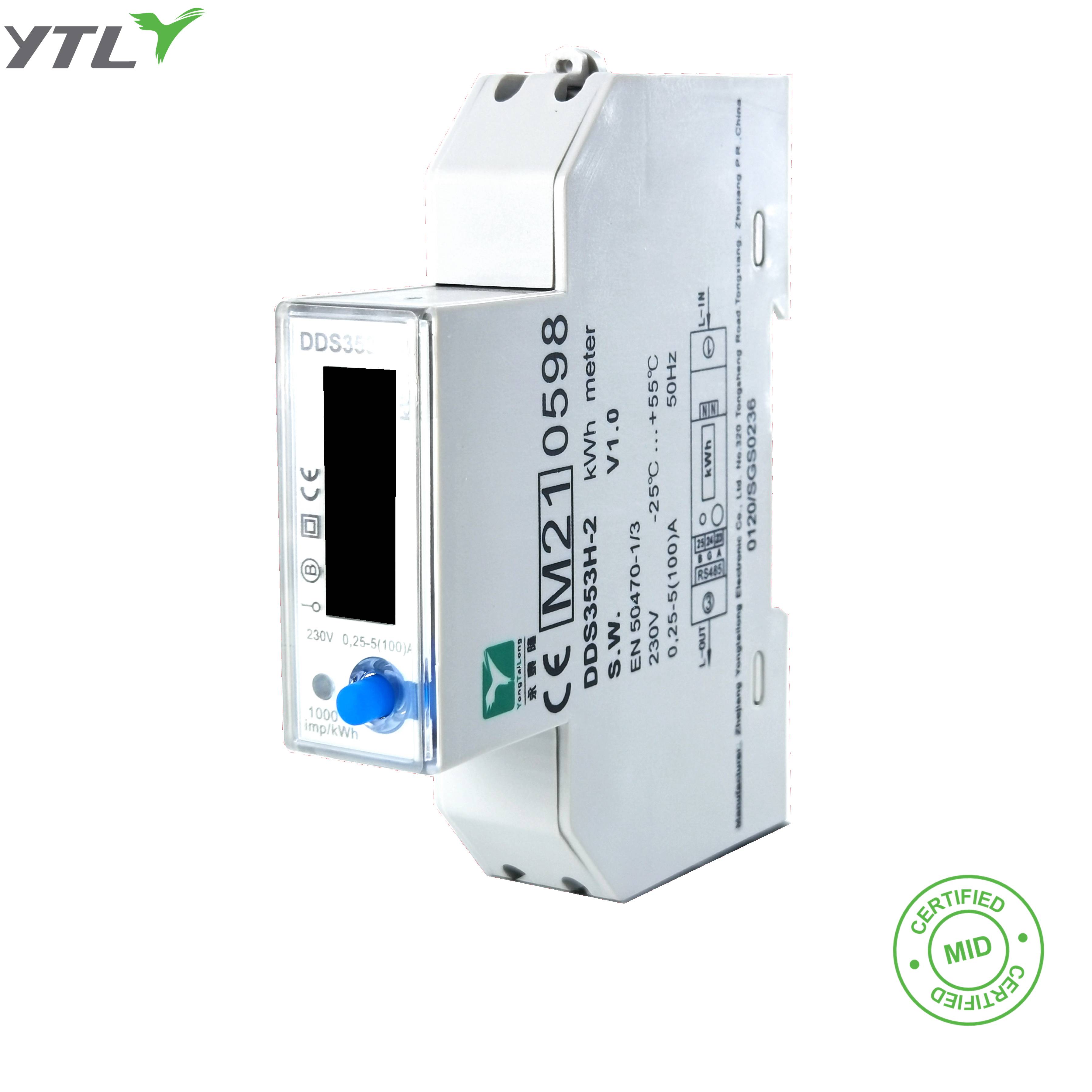

YTL DDS353H 50Hz Din-Rail 1P 1W Power Monitor MID Power Meter Suppliers
Home / Products / multi-function energy meter / YTL DDS353H 50Hz Din-Rail 1P 1W Power Monitor MID Power Meter
.jpg?imageView2/2/format/jp2)
- TechnicalParameters
- Description

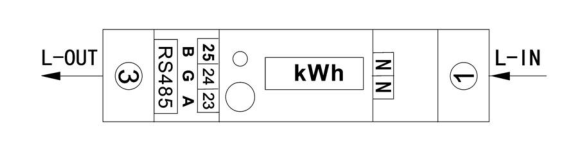

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage: 230V Current: 10(100)A
Accuracy class: 1.0 Standard: IEC62052-11, IEC62053-21
Frequency: 50-60Hz Impulse constant: 1000imp/kWh Display: LCD 5+1= 99999.9kWh Power consumption: ≤8VA ≤0.4W
Starting current: 0.004Ib Temperature range: -20～65℃ Flashing red: Impulse indication，width=90ms Average humidity value of year: 75% Maximal humidity value: 95% -

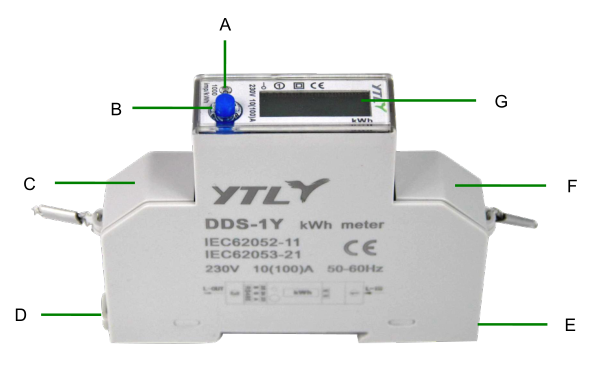

A Impulse indication
B Turn Page Button
C RS485 Output
D L-Out
E L-In
F Neutral Wire
G LCD Display
Material
Case: ABS、PC、Alloy material
Hook: ABS material -
-

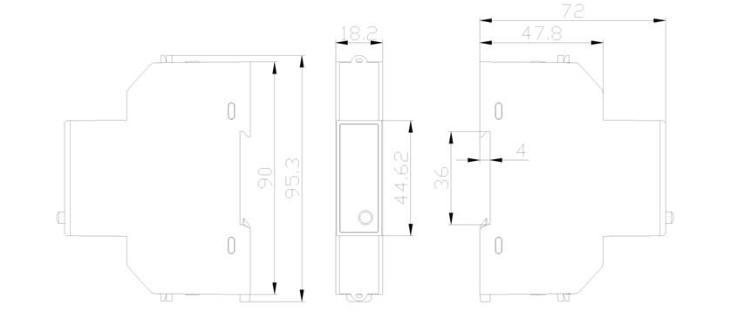

Height 95.3mm
Width 18.2mm
Depth 72mm
Weight 0.10kg(Net) -
This manual does not contain all of the safety measures for operation of this equipment (module,device) because
special operating conditions, local code requirements or local regulations may necessitate further measures.
However,it does contain information which must be adhered to for your own personal safety and to avoid damage to
the equipment. This information is highlighted by a warning triangle with an exclamation mark or a lightning bolt
depending on the severity of the warning.
