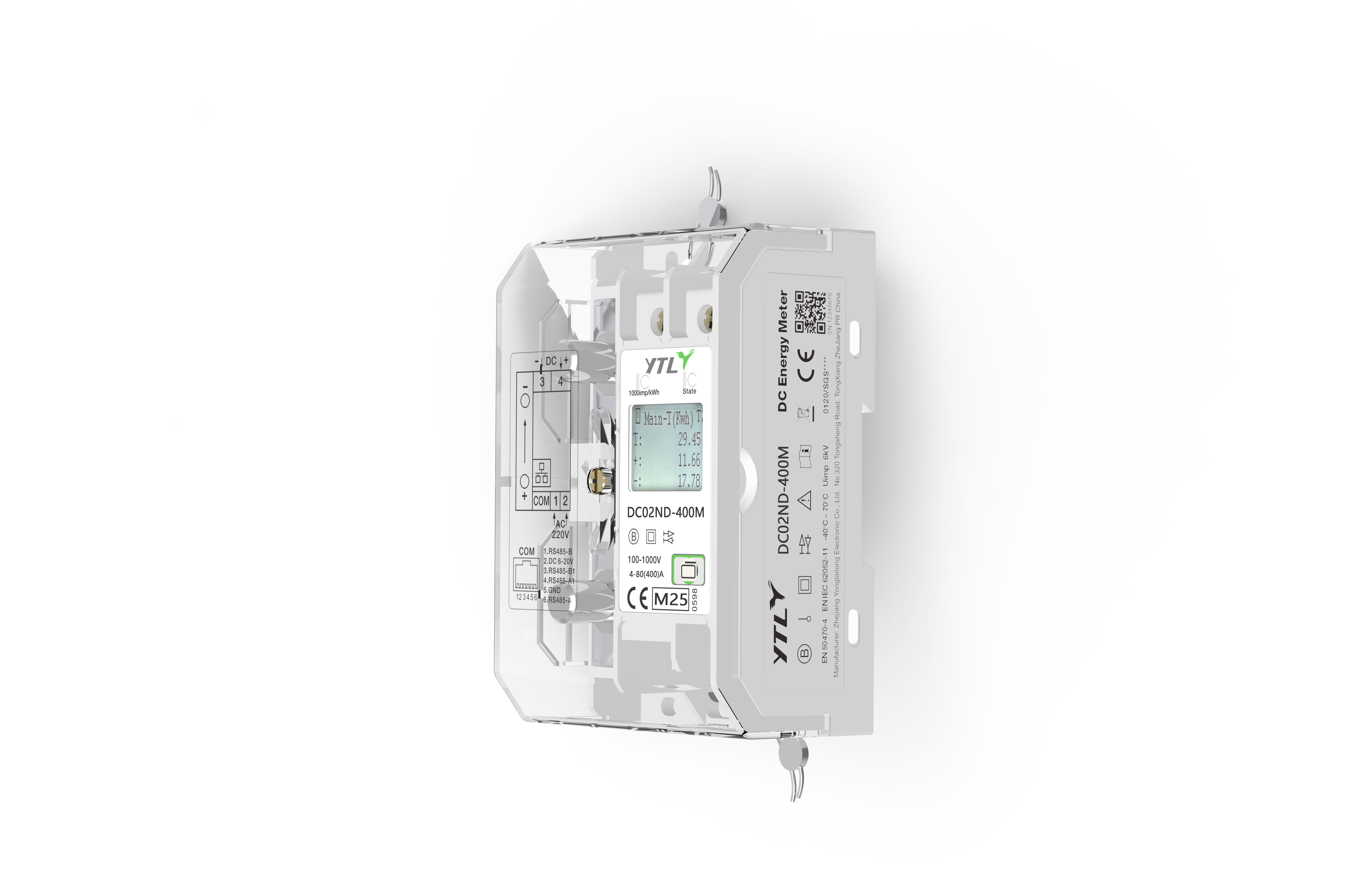

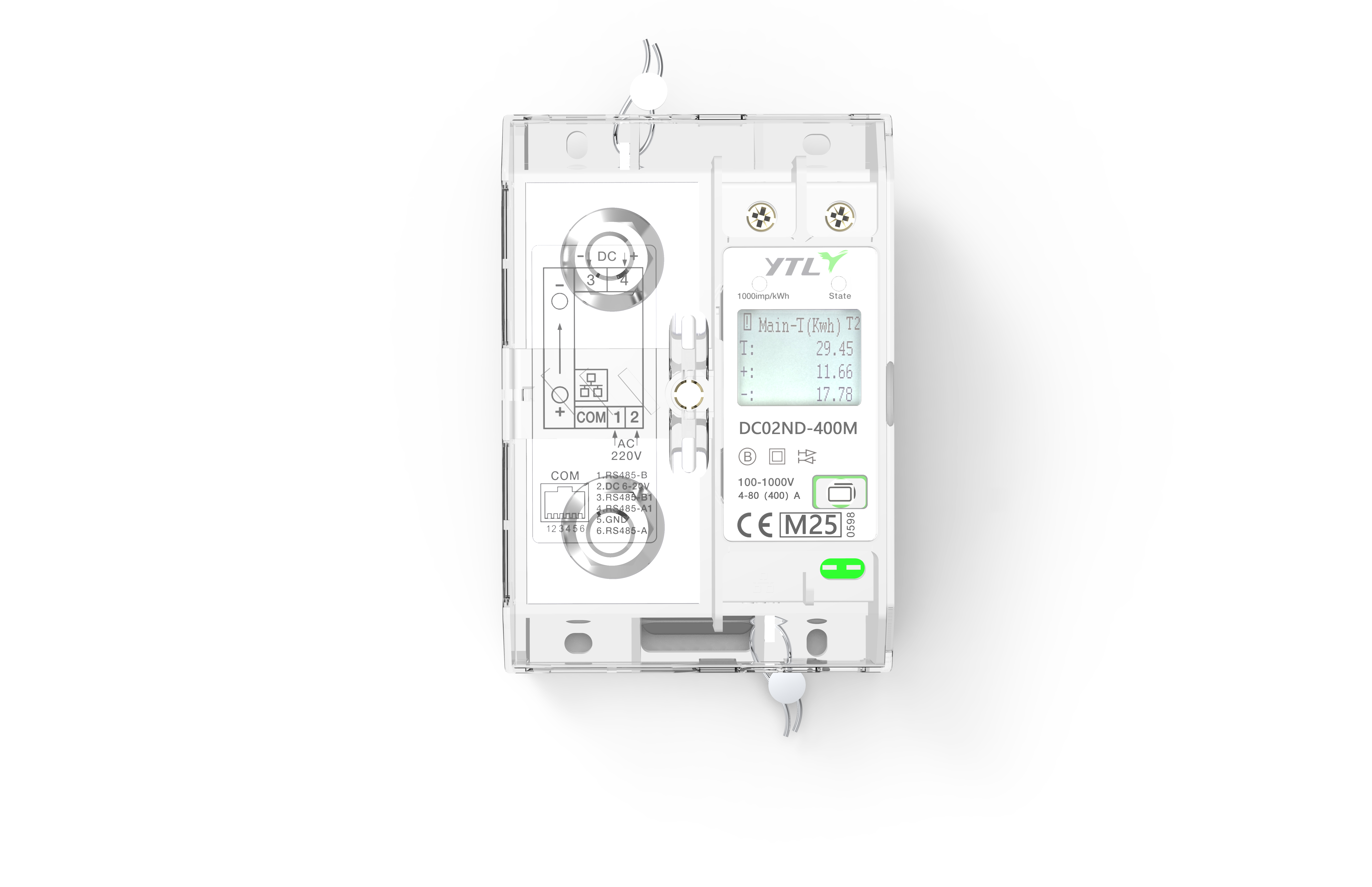

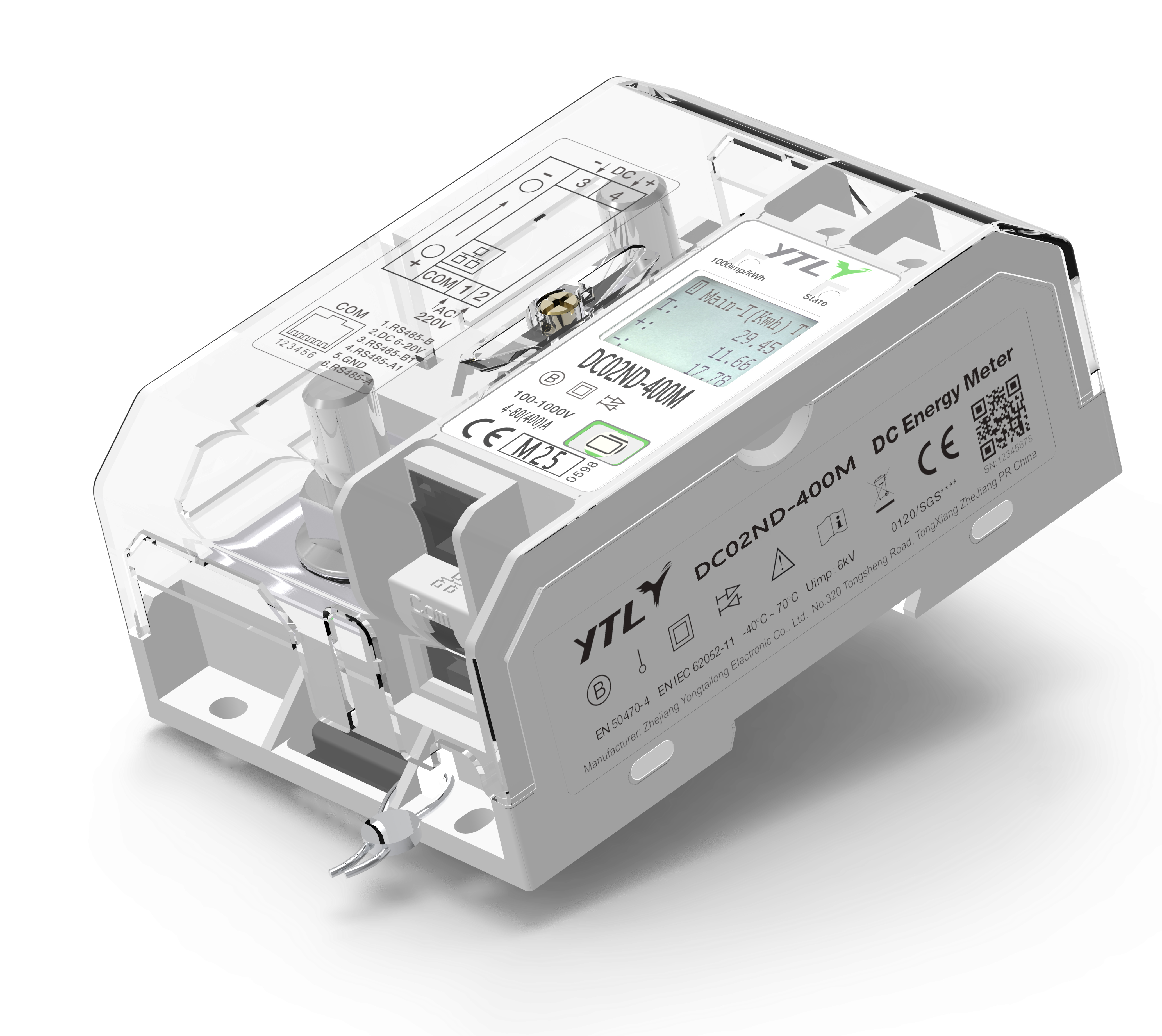

DC02ND series direct DC energy meters are specially designed for DC EV chargers, photovoltaic power station, energy storage system and other DC metering scenarios. This series of energy meters uses an integrated design of shunt and energy meter, while providing optional split slave meter to meet specific requirements such as double circuit metering.
YTL DC02ND series direct DC energy meters 400A Suppliers
- Measurements
- Product Description
- Meter Dimensions
- Diagram for installation
-
Rated voltage 100V-1000V Maximum current
（Imax）400A Basic current
（Ib）80A Minimum current
（Imin）4A Auxiliary power supply 12~36V DC or 115-250V AC（choose one of two） Measurement accuracy 1.0 Power comsumption ≤2W（without communication） Protection class Level II Rated pulse voltage 6kV Operating temperature -40℃~70℃ Maximum humidity ≤95% Altitude ＜2000M Standards IEC 62053-41
EN 50470-4 -
- Measurement functions: forward and reverse measurement; Supports dual circuit
- measurement
- Accuracy class 1.0
- Multi-tariffs, multi-periods： 4 tariffs and 8 periods by default
- Flexible communication method: support RS485 communication, meet the Modbus
- protocol and DL/T645-2007 protocol; Support Ethernet communication
- LCD backlight display: display voltage, current, energy, power and other
- information; With automatic wheel display, the default interval is 5S
- Self-diagnosis, alarm and security functions
- With line loss energy compensation
- OCMF readings according to S.A.F.E standards
- Comply with German Eichrecht regulations
- Comply with German Eichrecht regulations, MID, CPA certification requirements
- Measurement functions: forward and reverse measurement; Supports dual circuit
-
-
- Ports 1 and 2 are auxiliary power ports.
- In addition, the wiring diagram also marks the current measurement direction of the shunt,
- Ports 1 and 2 are the RS485 communication ports.
- Ports 3 and 4 are voltage measurement ports.
- In addition, the wiring diagram also marks the current measurement direction of the shunt,
