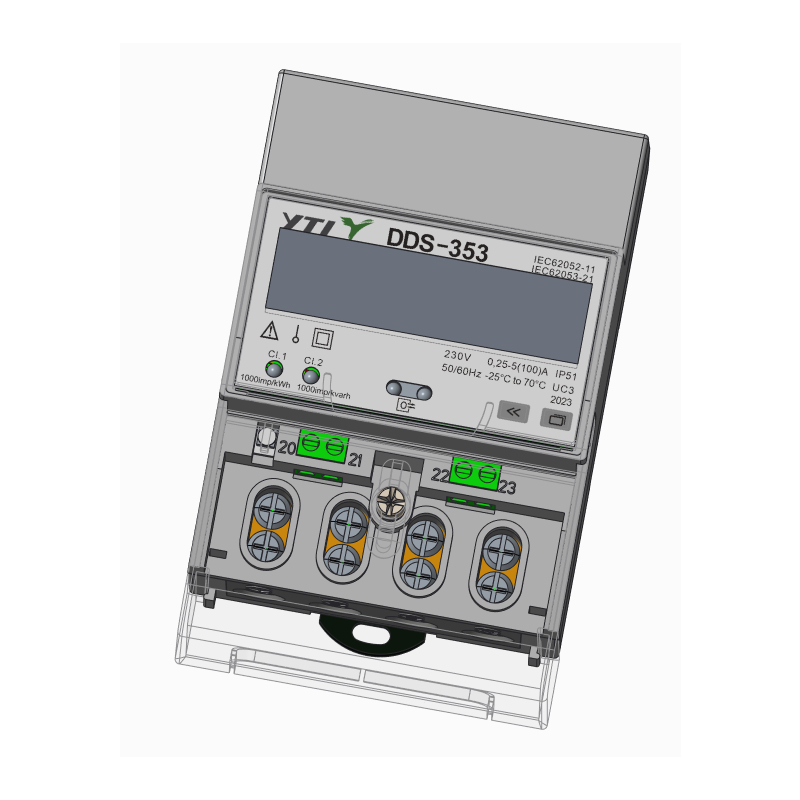

Single-phase two-wire rail smart meter, can realize two-way communication through RS485 for reading and setting power data and parameters. The built-in high-quality magnetic holding relay can carry out user-side load management, and the backlight can be lit through the button to facilitate viewing data at night; The metering method can be set to meet the requirements of bidirectional measurement. The meter has multi-functions and compact structure, and is suitable for various application scenarios such as residential households, industrial fields, new energy charging stations, and renewable energy power generation.
Single Phase Two Wire Smart Meter Supplier RS485 Modbus/DLT645 Suppliers
- Type
- Functions
- Technical Parameters

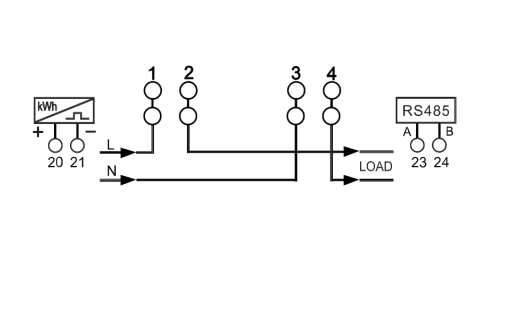

- Connection Diagram

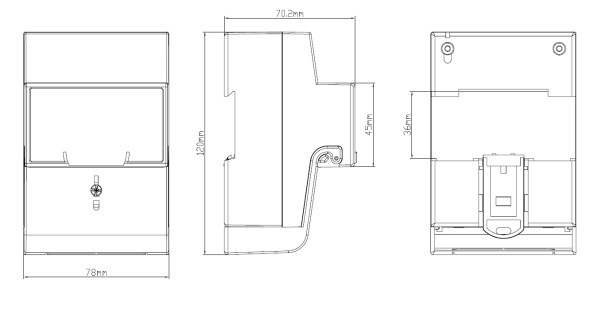

- Meter Dimensions
-
Type D11A015 D11A028 Communication RS485
Modbus and DLT645 protocalWi-fine
(Wi-Fine FAN/HAN) -
- RS485 Communication, Support Modbus and DLT645 protocal, Baud rate 9600\19200\38400\115200
- It can be setted 4 measurement modes, 1-total =forward、2-Total=reverse、3-Total =forward +reverse (default)、4-Total=Forward-Reverse
- Four tariff, 8 time period
- Neutral wire,with two-way unbalanced anti-tamper function
- Open cover detection, terminal cover detection through RS485 to send alarm with value and time; Store open detection events 10 times with time and date
- Designed with blue backlight by buttons, convenient for viewing power data at night
- Standard: IEC 62052-11 2020 \ IEC 62053-21 2020 \ EN50470-3 2022
-
D11A015 D51A012 Voltage AC 230V±20% AC 3×230/400V±20% Current 0.25~5(100)A 0.25~5(100)A Accuracy class Active1.0 reactive2.0 Active1.0 reactive2.0 Frequency 50-60Hz 50-60Hz Impulse constant 1000imp/kWh 1000imp/kvarh 1000imp/kWh 1000imp/kvarh Display: LCD 5+2 LCD 6+2 Power consumption ≤1W, 10VA ≤1W, 10VA Starting current 0.4%Ib 0.4%Ib Temperature range -40～70℃ -40～70℃ Average humidity value of year 75% 75% Maximal value 95% 95% -
-
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
