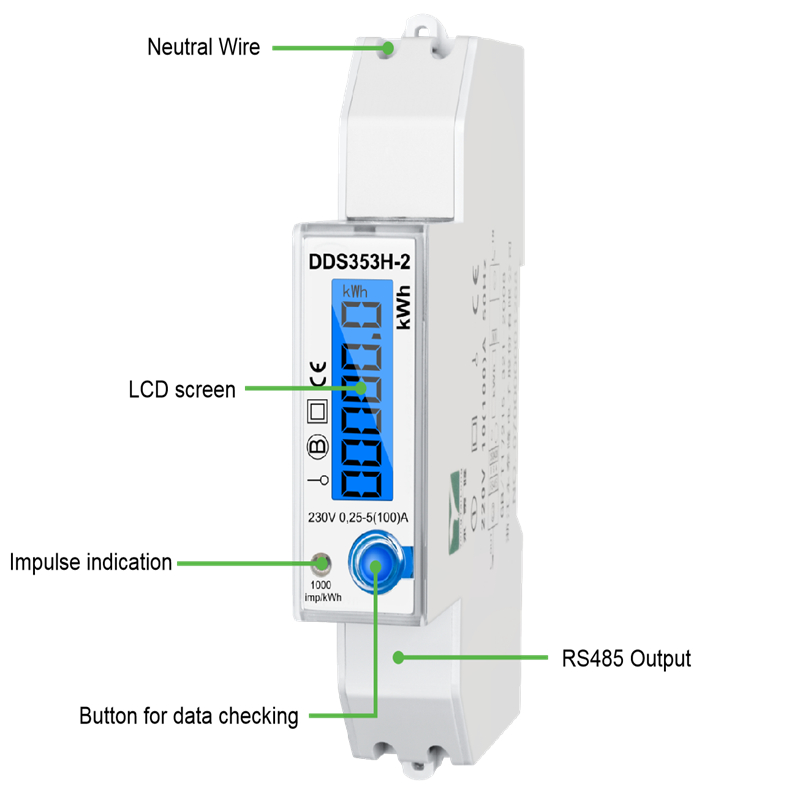

DDS353H-1/2/3 is a single phase DIN Rail meter, 100A, which is a multi-functional meter for energy monitoring.
It is only 18mm width, but can support RS485 communication and comply with DIN EN 50022 standard, which is fit for the power distribution system for household and commercial.
|
Content |
Parameters |
|
Standard: |
EN50470-1/3 |
|
Rated Voltage: |
230V |
|
Rated Current: |
0,25-5(30)A,0,25-5(32)A, 0,25-5(40)A, 0,25-5(45)A 0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A |
|
Impulse Constant: |
100/1000/2000imp/kWh |
|
Frequency: |
50Hz |
|
Accuracy Class: |
B |
|
LCD Display: |
LCD 5+1 = 99999.9kW |
|
Working Temperature: |
-25～55℃ |
|
Power Consumption: |
≤8VA, ≤0.4W |
|
Average Humidity: |
≤75% (Non Condensing) |
|
Maximum Humidity: |
≤95% |
|
Start Current: |
0.004Ib |
|
LED flash: |
Impluse indication, pulse width = 90 ms |
|
Materials: |
Case: PBT, PC |
