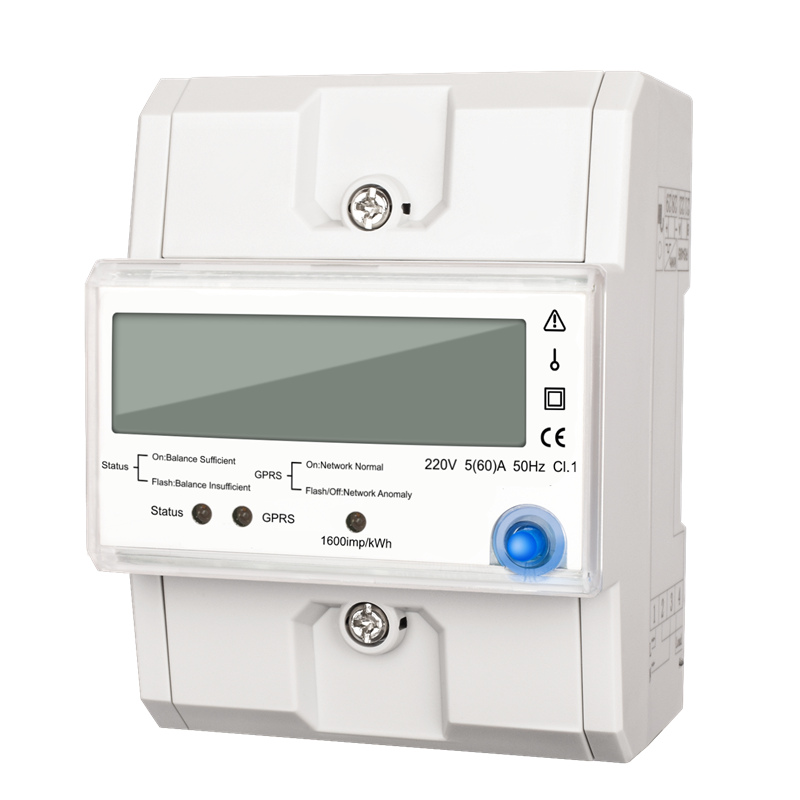

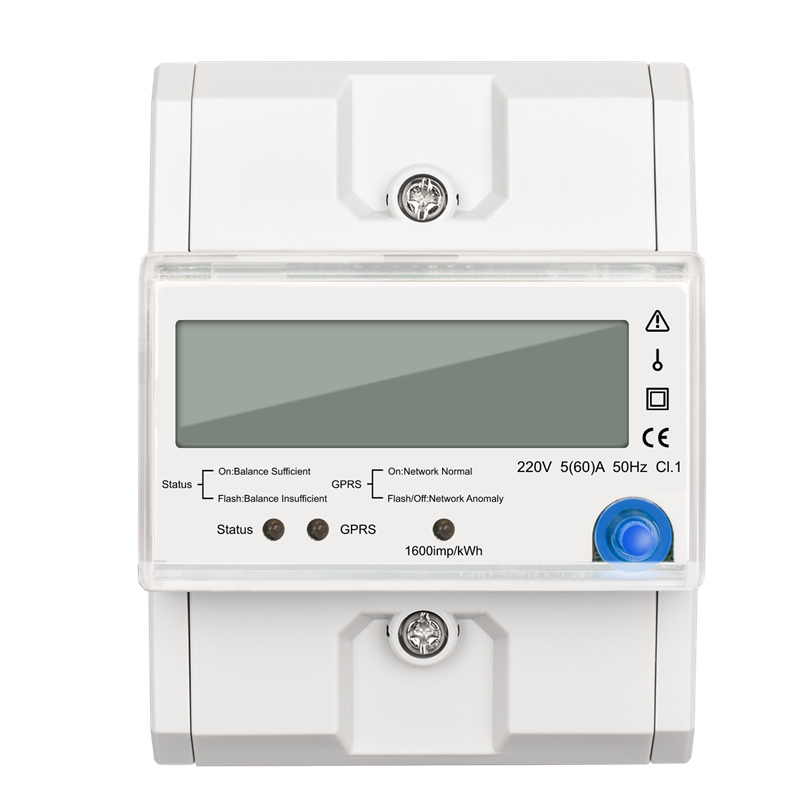

This is a single-phase prepaid meter with GPRS communication, built-in magnetic relay. power-on automatic networking, without any settings can achieve remote reading, remote recharge, remote clear balance / total power, remote trip, over power trip, tripping when the balance is out and other functions.
YTL Din-Rail 1 Phase 1 Module Two Channel Electronic Power Meter Suppliers
Home / Products / electronic energy meter / YTL Din-Rail 1 Phase 1 Module Two Channel Electronic Power Meter
D112106
Contact Us
SPEC Download
YTL Din-Rail 1 Phase 1 Module Two Channel Electronic Power Meter
- TechnicalParameters
- Description

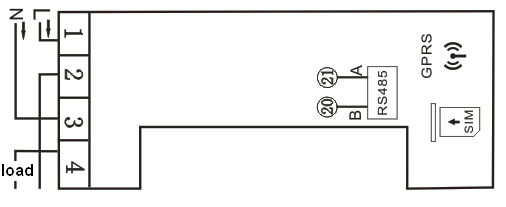

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage165V-265VCurrent5(60)AAccuracy
Class B Reference standardIEC62052-11/IEC62053-21, IEC62055-41/IEC62056-21Frequency50HzPulse constant1600imp/kWhDisplayLCD 6+2Power Consumption<2W / <10VA @ UnLoad controlMagnetic relayLow Balance Indicatorstatus LED flashNetwork anomaly indication：GPRS LED indicator is always on the network is normal;GPRS LED indicator flash or offnetwork abnormality.Starting current0.4%IbTemperature range-20～70℃Humidity< 95%CommunicationGPRS RS485 -
Material:
Bottom ABS
Meter cover ABS+PC
Terminal cover ABS
Nameplate ABS
-
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)
Length 100mm
Width .76mm
Depth 66mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
-
