The meter cover and terminal cover are made of transparent PC materials, and the internal structure of the meter and the welding assembly process are all exposed to the user,which has higher requirements on the ability of the meter manufacturer. The meter case is designed with a programming key, which has a lead block. And the removal of the lead seal can press the programming button, which can set the parameters of the meter.
YTL Single Phase Active Electronic Reactive Fcatory Electricity Meter Suppliers
Home / Products / multi-function energy meter / YTL Single Phase Active Electronic Reactive Fcatory Electricity Meter
.png?imageView2/2/format/jp2)
D123031
Contact Us
SPEC Download

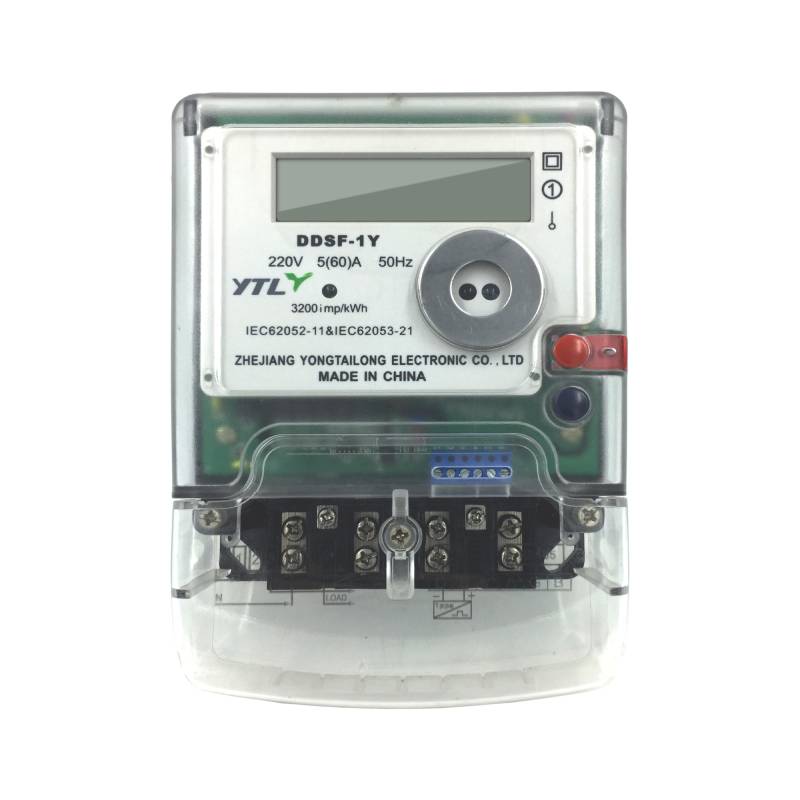

YTL Single Phase Active Electronic Reactive Fcatory Electricity Meter
- Technical Parameters
- Features

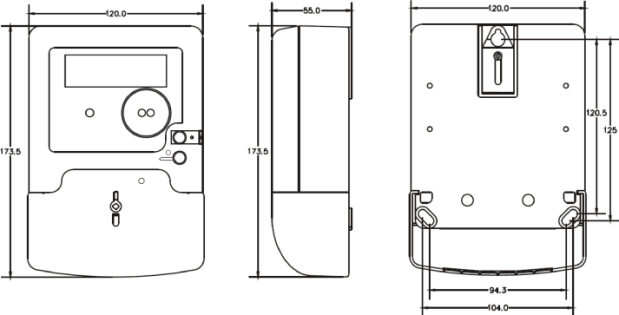

- Meter Dimensions

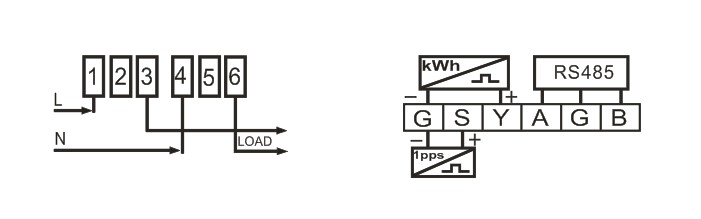

- Diagram for installation
- det6
-
Voltage 230V Current 5(60) A Accuracy class 1.0 Standard IEC62052-11, IEC62053-21 Frequency 50Hz Impulse constant 3200imp/kWh Display LCD 6+2 = 999999.99kW Power consumption ≤8VA ≤0.4Wh Starting current 0.004Ib Work Temperature range -20～65℃ Average humidity value of year 75% Maximal value 95% -
● Active and reactive energy measurement
● Mounted mounting installation
● Can up to 60A.
● RS485、IR and ZIGBEE communication
● Multi-tariff function.
● Meter has 3.6V Lithium battery, which is used to support multi-tariff function. And the precision of RTC is better than 0.5s/day.
● LCD backlight allows the meter to be read in low light conditions.
● With relay internal,which is used to remote control the meter connect and disconnect
● Terminal cover open detection
● With events records
● Over or Low voltage protection
● Electricity larceny prevention
● Reactive energy can be measured.
● Degree of Protection: IP51 (indoor meter).
-
