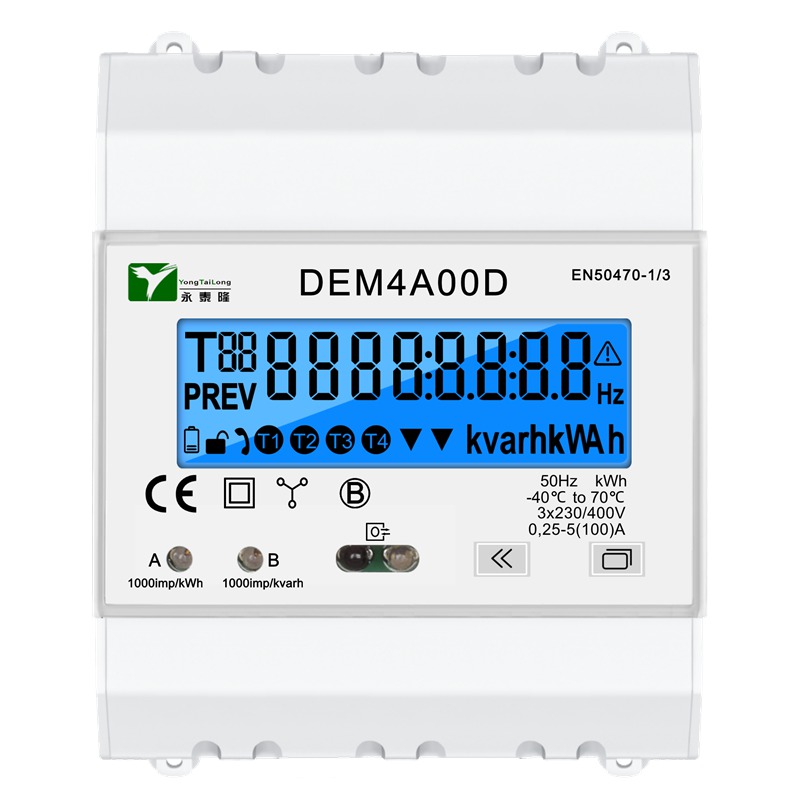

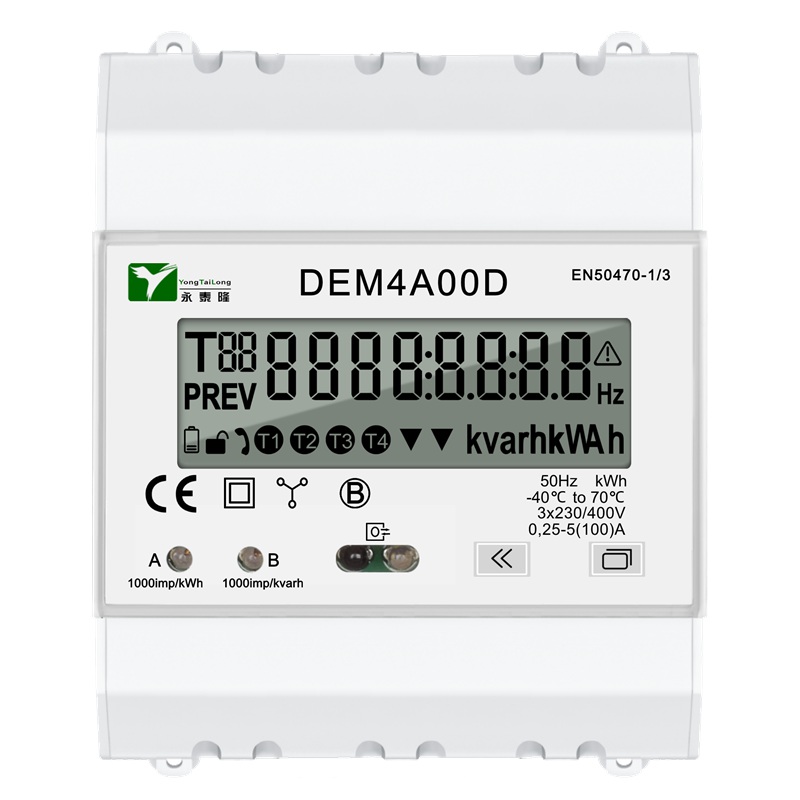

It adopts 4-section case, three-phase four-wire meter design, voltage 3*230/400V, maximum current 100A. Using LCD LCD display mode, long life, high display definition, through the touch button can light the backlight to facilitate night viewing of electricity data
YTL DEM4A MAX 100A DIN Rail 3 Phase Meter mbus protocol Suppliers
Home / Products / Applications / MID EV charging / YTL DEM4A MAX 100A DIN Rail 3 Phase Meter mbus protocol
- Features
- Technical Parameters
- Description
-
Type IR M-Bus SO output Signal input Different measurements Tariff DEM4A00D Yes Yes 2 No Yes No DEM4A10D Yes Yes 2 No Yes Yes DEM4A20D Yes Yes 1 1 Yes No DEM4A30D Yes Yes 1 1 Yes Yes -
Content
Parameters
Standard:
IEC 62052-11:2020
IEC 62053-21:2020
Rated Voltage:
3*230(400)V±20%
Rated Current:
5(80)A
Impulse Constant:
1000imp/kWh(LED)
1000imp/kvarh(LED)
Frequency:
50Hz
Accuracy Class:
Active power 1.0
Reactive power 2.0
LCD Display:
LCD 6+2
Working Temperature:
-40～70℃
Storage Temperature:
-40~70℃
Power Consumption:
<1W / <10VA
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.4%Ib
Case Protection
IP51 indoor
-
l can measure a variety of instantaneous parameters: voltage, current, active power, reactive power, apparent power, frequency, power factor (pf), total demand and total demand of reactive power, total active reactive power demand maximum demand, total amount
l supports a variety of power parameter measurement: the total power, ABC three-phase power, reactive power four quadrant power, can reset the power, power combination code, etc.
l support active reactive power direction measurement.
l LCD backlight display, data scrolling display, you can manually turn the page through the button.
l support the M - BUS communication, able to read and setting up the instrument parameters.
l electric strap touch button, support page flip back and forth and long press to enter other level
