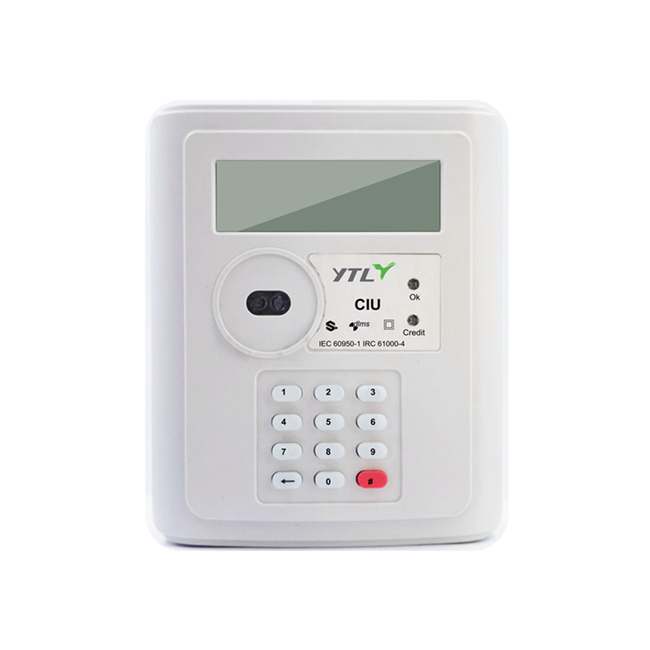

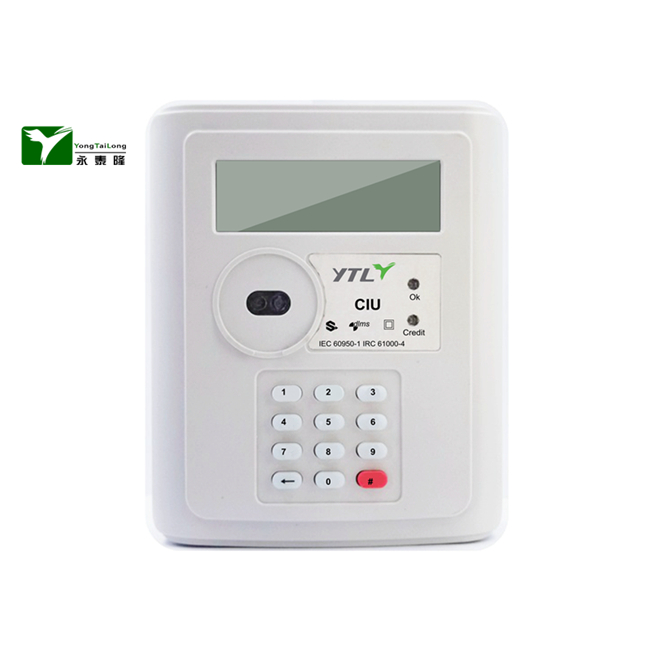

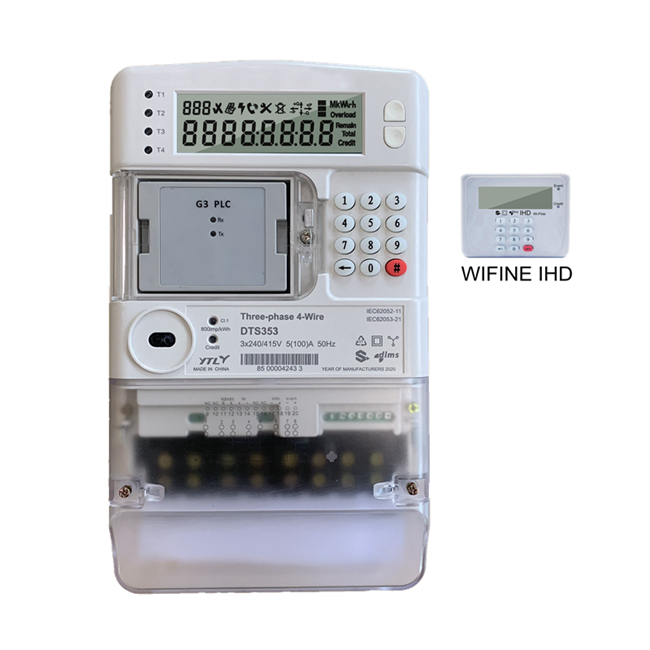

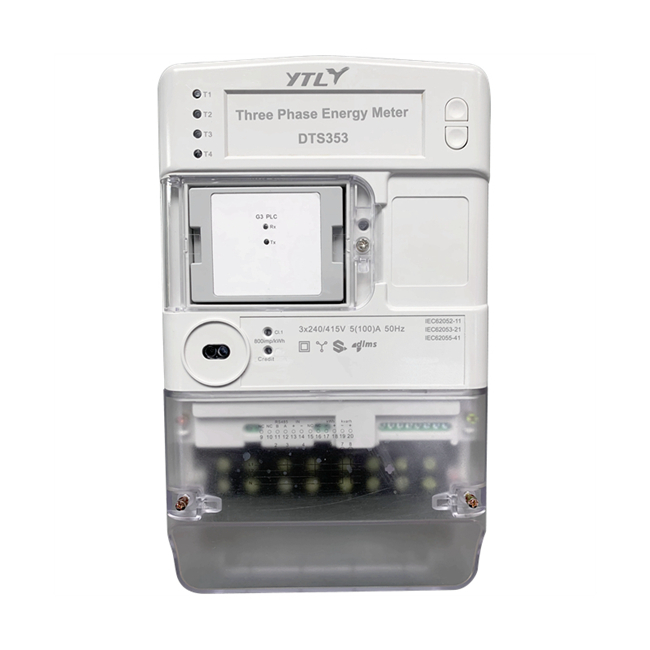

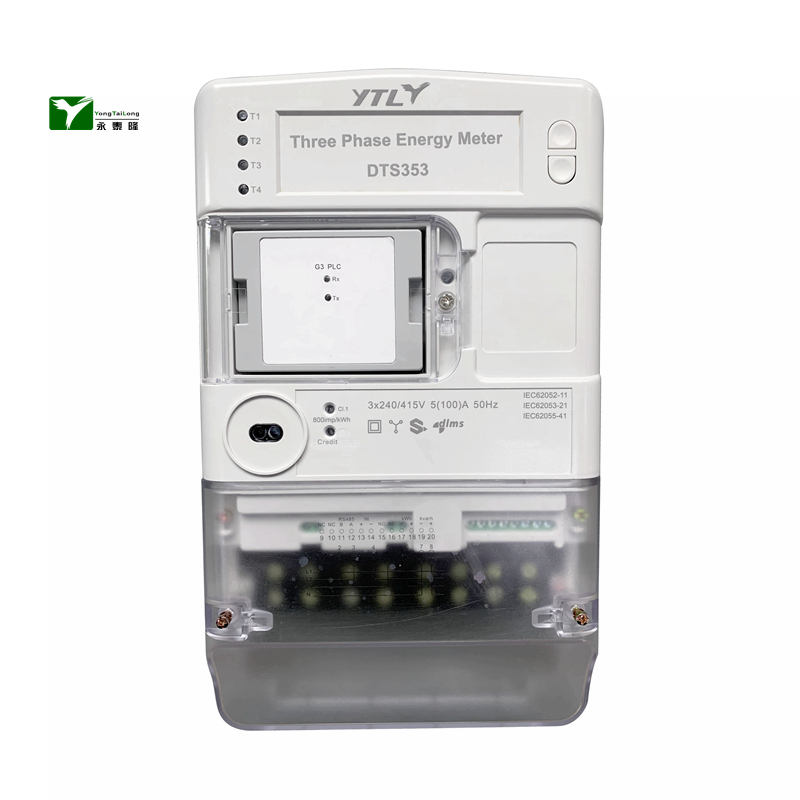

YTL Prepaid Meter 5/100A Split Type 3P Four Wires Electricity Smart Meter Smart Token

It is three phase four wire prepayment keypad meter with multi-functions, which measure forward and reverse power, total active power,remain credit and consumption credit etc. Inner meter use credit to calculate for managing well.Meanwhile, this prepayment meter Wi-Fine communication.

Technical Parameters and Features
det6

Parameter	Description
type	3-phase 4-wire: Direct type Indirect type
Accuracy class	1.0 (or better)-active energy 2.0-Reactive Energy
Voltage	3*240/415V
Frequency	50Hz
Ib/Imax	Direct type: 5/100A;
Min Starting Current	Class 1:40mA Class 2: 50mA
Over-voltage rating	Withstand 420VAC for 48 hours
LCD	LCD with back light; Display voltage of L1,L2L3; Display phase current flow direction; Active tariff indication; Load-switch status; Operational mode; Tamper status; Communications status to DCU; Token acceptance status; Overload; Remaining credit; Volts; Amps; kWh; kVArh; Cyclic display of data on LCD-configurable; Manual scrolling data display using scroll keys;
Measurement	Each phase and neutral current measurement Neutral line with CT.
Alarm	PF; voltage dip/Low voltage; Temperature near terminal block
Tamper inputs	Meter cover open; Terminal cover open; Comms module cover open; Strong magnetic field tamper
Communications	RS485 (always present) IR (always present) Plug-in module: Wi-Fine GPRS LoRa Protocol: DLMS
Tariff	Multi tariff
Maximum demand	Configurable integration period-with auto reset on the 1^st of every month.Manual reset must also be possible via secure short code method.MD to be part of scroll display.
Load management	Support second configurable load limit threshold that becomes active during configurable periods
LCD display when no Power	LCD display; when the button is pressed, the battery should allow the LCD to maintain for 30 seconds when the meter is not powered
Anti-tamper when Neutral missing	when Neutral missing, the meter still can work（battery support）
Standards compliance	IEC62052-11 IEC62053-21 IEC62056-46 IEC62056-61 IEC62053-61
